13 90 500 Replacing tank vent valve (M62): Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Interrogate fault memory of DME control unit.

Switch off ignition.

Location:

Tank venting valve is fitted between cylinder head on left and fan cowl.

Disconnect plug (1).

Remove tank venting valve (2) from holder.

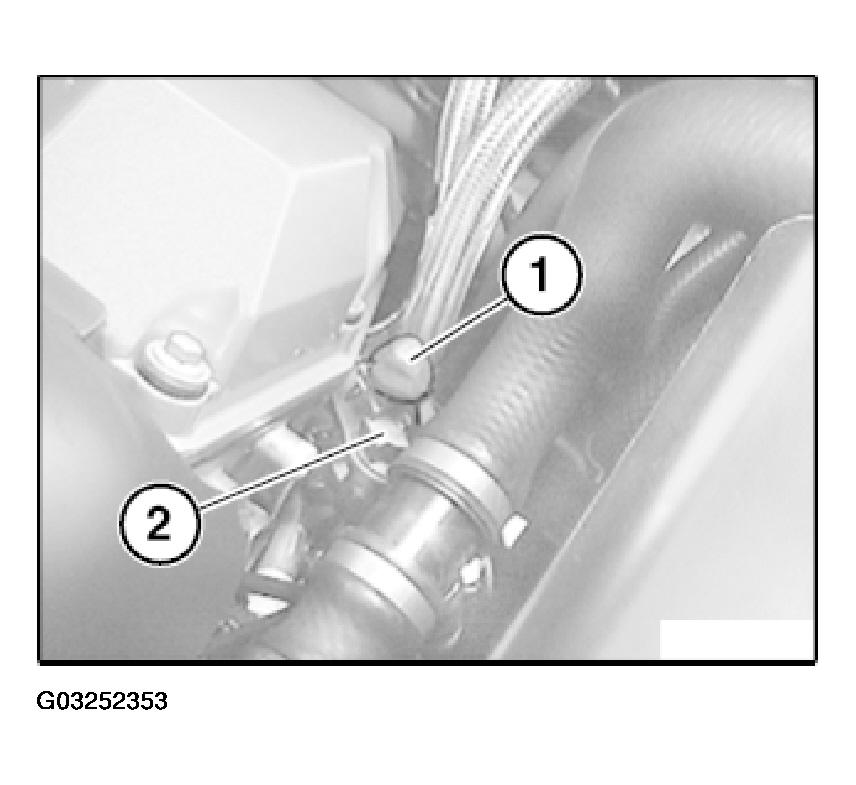

Fig 1: Disconnecting Plug And Removing Tank Venting Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Detach fuel hose (1) from tank venting valve.

Press locking ring (2) and detach hose (3) from tank venting valve.
