41 2 040 Extractor tool, supplementary kit

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For dent repairs

Series: E12, E21, E23, E24, E28, E30, E30/C, E30tou, E31, E32, E32/3, E34, E34tou, E36, E36/2, E36/3, E36/5, E36/7, E36/C, E36tou, E38, E38/3, E39, E39PL, E39tou, E46, E46/16, E46/2, E46/3, E46/5, E46/C, E53, E60, E61, E63, E64, E65, E66, E67, E83, E85, E87, E90, E91, R50, R52, R53, RR1

Storage location: Single

SI number: 5 04 98(328)

Order number: 41 2 040

Extractor tool, supplementary kit

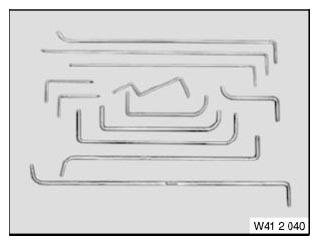

Fig 1: Special Tool (41 2 040)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

41 2 041 Dent removal rod 245 mm (T34)

41 2 042 Dent removal rod 350 mm (T7)

41 2 043 Dent removal rod 210 mm (T66)

41 2 044 Dent removal rod 410 mm (T70)

41 2 045 Dent removal rod 1140 mm (T14)

41 2 046 Dent removal rod 960 mm (T4)

41 2 047 Dent removal rod 1160 mm (T5)

41 2 048 Dent removal rod 300 mm (T50)

41 2 049 Dent removal rod 1000 mm (T53)

41 2 051 Dent removal rod 1300 mm (T54)

41 2 052 Dent removal rod 605 mm (T75)

41 2 053 Dent removal rod 810 mm (T76)
