33 0 100 Fixture

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For removing and installing rubber mount in rear differential at rear.

Series: E90, E92, E93

Model: M3

SI number: 01 02 08 (425)

Order number: 33 0 100

Fixture

Consisting of:

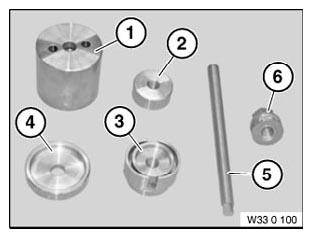

Fig 1: Special Tool (33 0 100)

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 33 0 101 Bushing

NOTE: Removing rubber mount

2 = 33 0 102 Thrust member

NOTE: Removing rubber mount

3 = 33 0 103 Thrust member

NOTE: Installing rubber mount

4 = 33 0 104 Shaped disc

NOTE: Installing rubber mount

5 = 33 0 105 Spindle M14x1.5, length 190 mm

6 = 33 0 106 Nut M14x1.5 with thrust bearing
