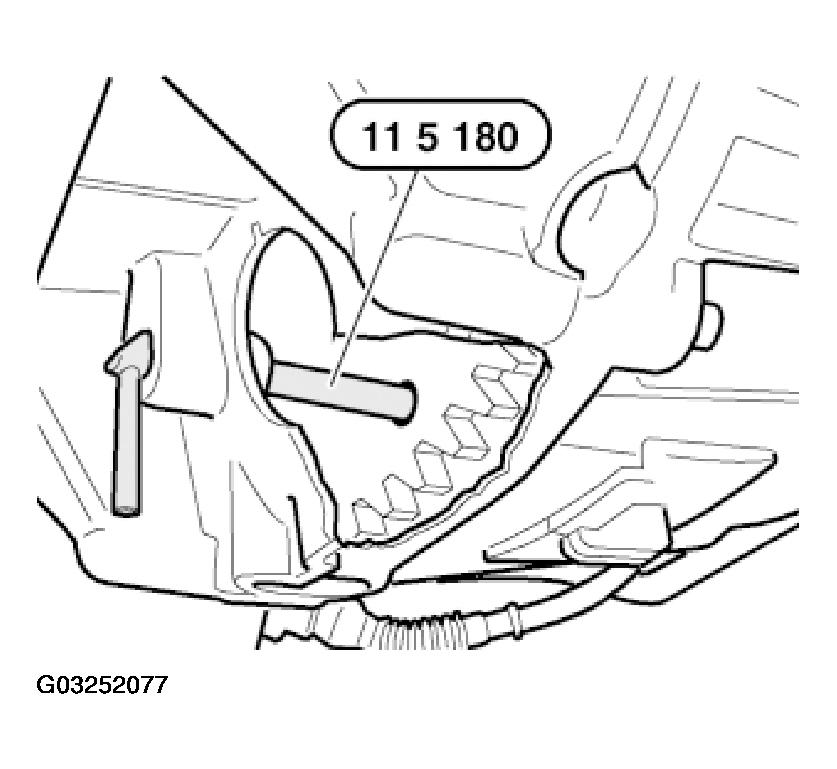

Secure crankshaft in TDC position with special tool 11 5 180.

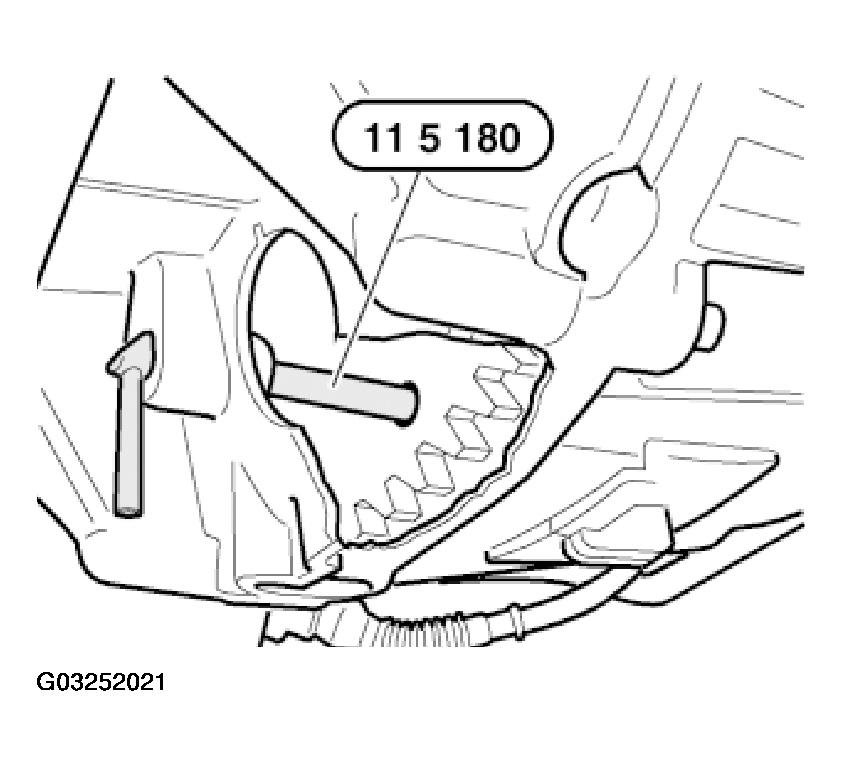

Fig 1: Securing Crankshaft In TDC Position With Special Tool 11 5 180

Courtesy of BMW OF NORTH AMERICA, INC.

Remove chain tensioning piston.

Remove both timing case covers at top.

CAUTION: Left-hand threads.

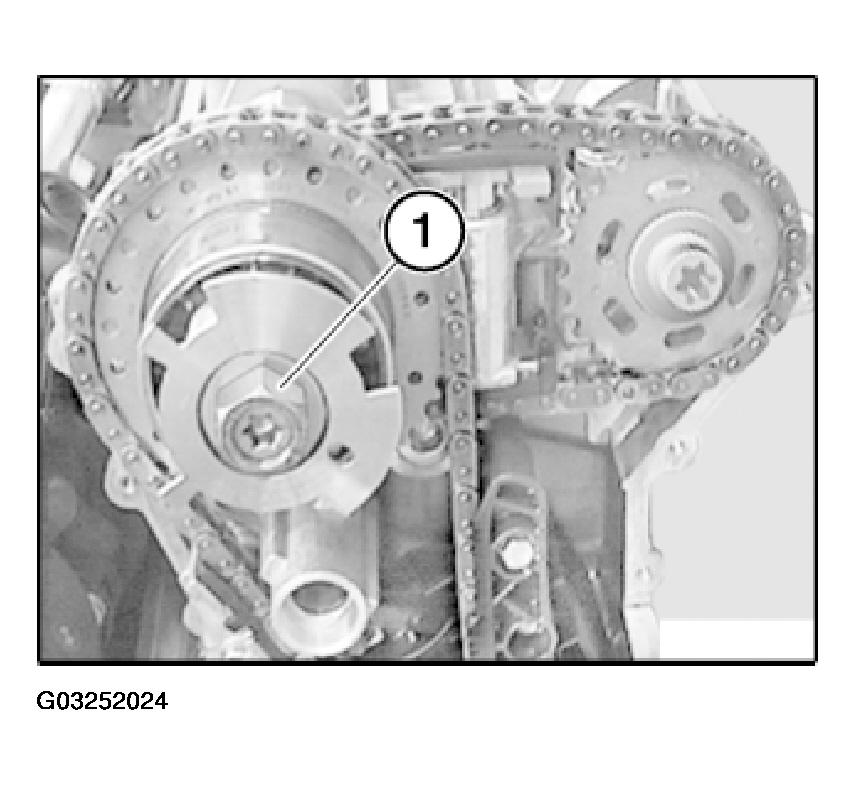

Release nut (1) on sensor gear screw connection on cylinder bank 1 to 4.

Fig 2: Releasing Nut On Sensor Gear Screw Connection On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

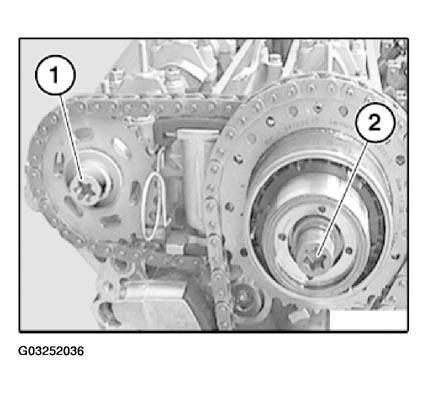

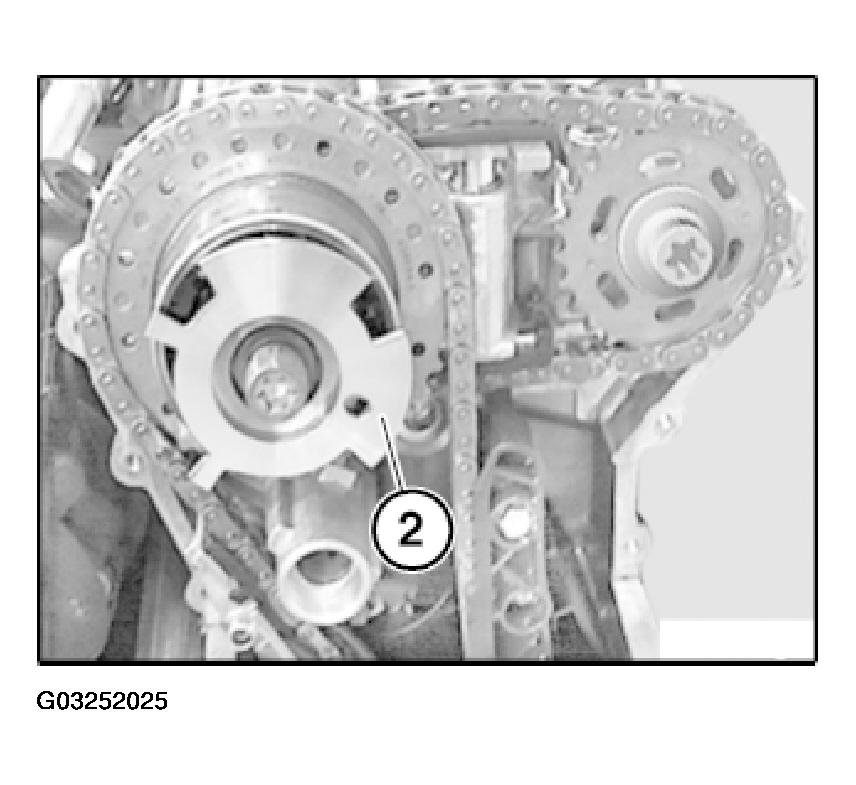

Remove sensor gear (2) on cylinder bank 1 to 4.

Fig 3: Removing Sensor Gear On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

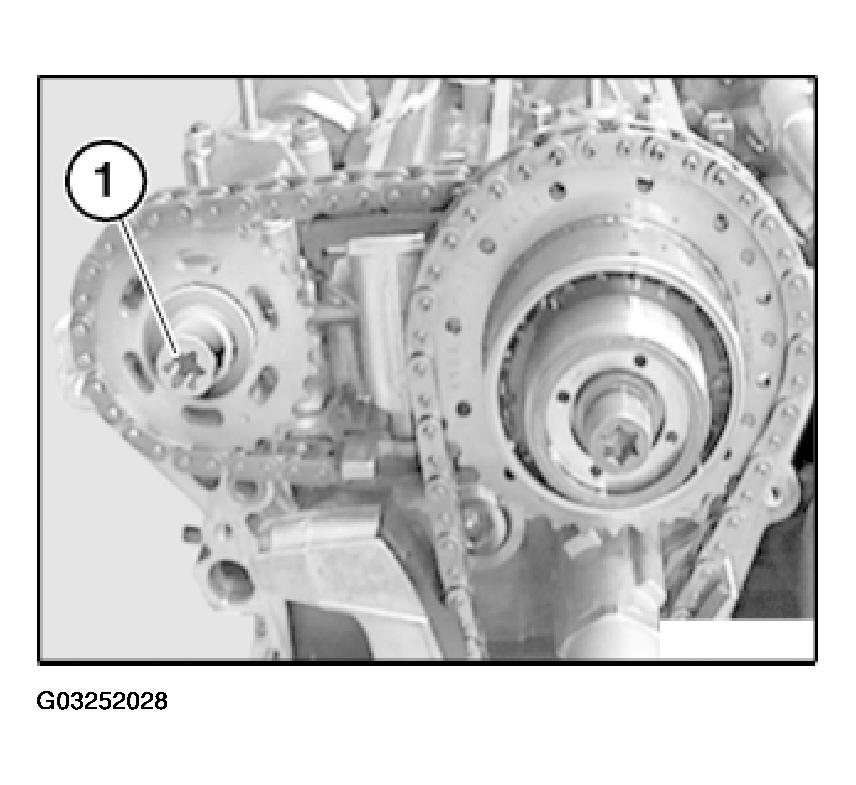

Release nut (1) on sensor gear screw connection on cylinder bank 5 to 8.

Fig 4: Releasing Nut On Sensor Gear Screw Connection On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

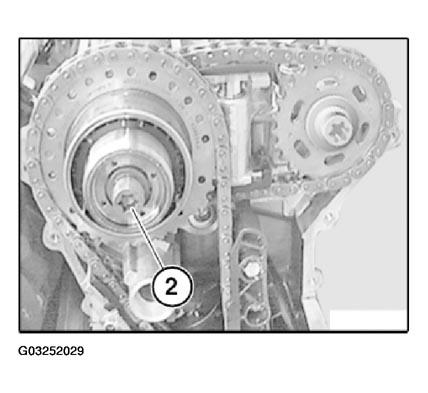

Remove sensor gear (2) on cylinder bank 5 to 8.

Fig 5: Removing Sensor Gear On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not damage the cylinder head.

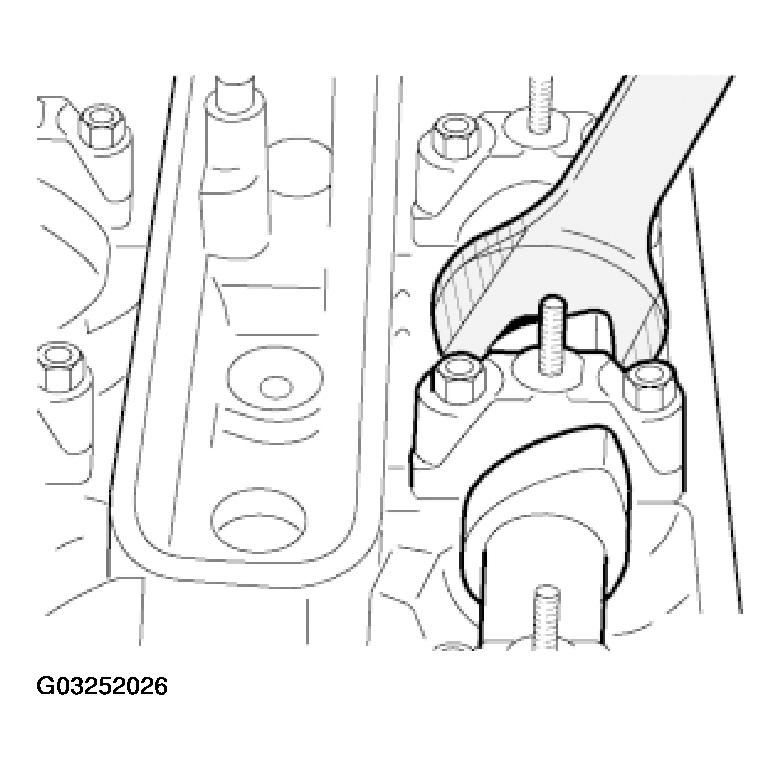

If necessary, machine open-end wrench accordingly.

When releasing camshaft screw connection grip camshaft at hexagon head.

Fig 6: Releasing Camshaft Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

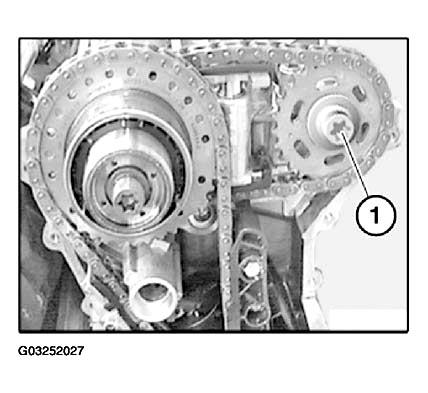

Slacken screw connection (1) of exhaust camshaft on cylinder bank 5 to 8 by approx. a half turn.

Fig 7: Slackening Screw Connection Of Exhaust Camshaft On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

When releasing camshaft screw connection grip camshaft at hexagon head.

Slacken screw connection (1) of exhaust camshaft on cylinder bank 1 to 4 by approx. a half turn.

Fig 8: Slackening Screw Connection Of Exhaust Camshaft On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

When releasing camshaft screw connection grip camshaft at hexagon head.

Slacken screw connection (2) of inlet camshaft on cylinder bank 5 to 8 by approx. a half turn.

Fig 9: Slackening Screw Connection Of Inlet Camshaft On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

When releasing camshaft screw connection grip camshaft at hexagon head.

Slacken screw connection (2) of inlet camshaft on cylinder bank 1 to 4 by approx. a half turn.

Fig 10: Slackening Screw Connection Of Inlet Camshaft On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

Align camshafts.

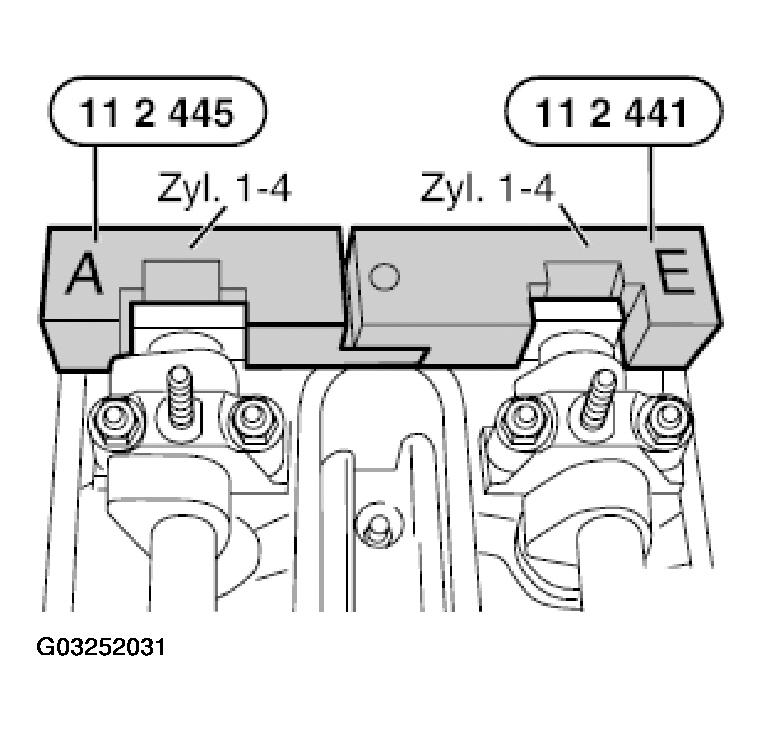

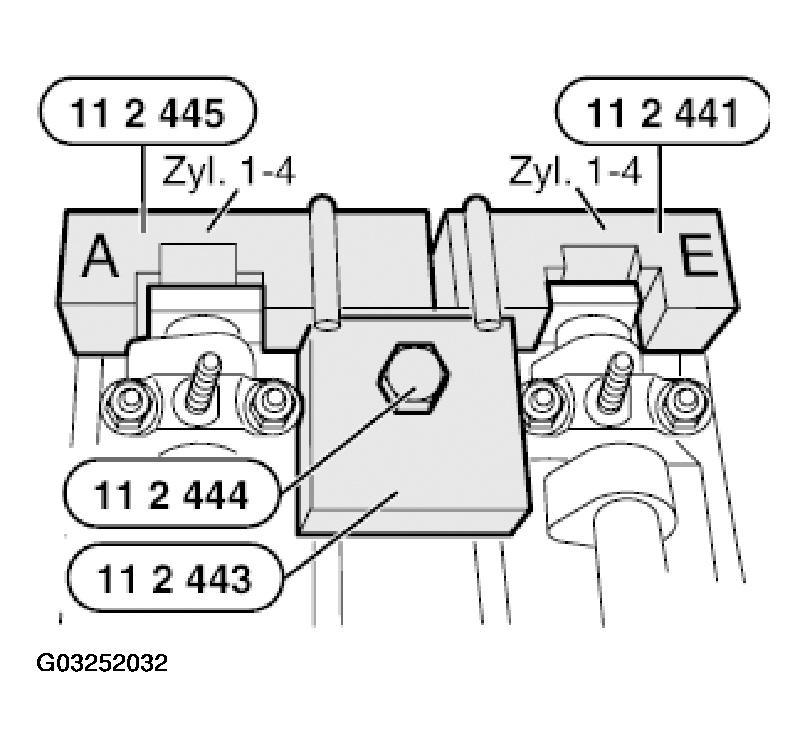

Attach special tool 11 2 445 / 11 2 441 to camshafts, cylinder bank 1 to 4.

Fig 11: Connecting Special Tool 11 2 445 / 11 2 441 To Camshafts

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 2 443 to special tool 11 2 445 / 11 2 441 and secure with special tool 11 2 444 via spark plug thread.

Fig 12: Identifying Special Tools Securing With Special Tool 11 2 444

Courtesy of BMW OF NORTH AMERICA, INC.

Align camshafts.

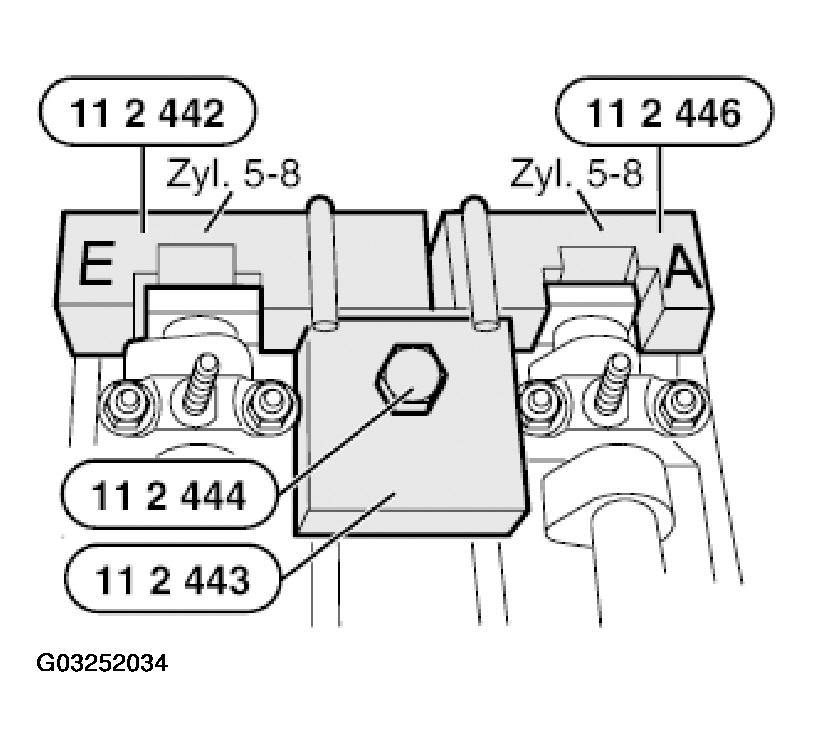

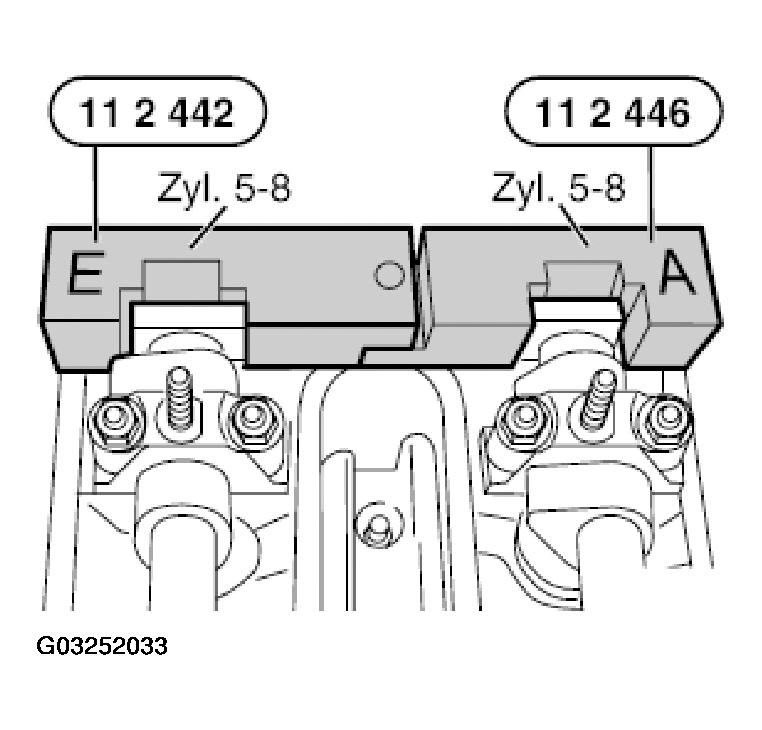

Attach special tool 11 2 446 / 11 2 442 to camshafts, cylinder bank 5 to 8.

Fig 13: Connecting Special Tool 11 2 446 / 11 2 442 To Camshafts On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 2 443 to special tool 11 2 446 / 11 2 442 and secure with special tool 11 2 444 via spark plug thread.

Fig 14: Identifying Special Tools Securing With Special Tool 11 2 444

Courtesy of BMW OF NORTH AMERICA, INC.

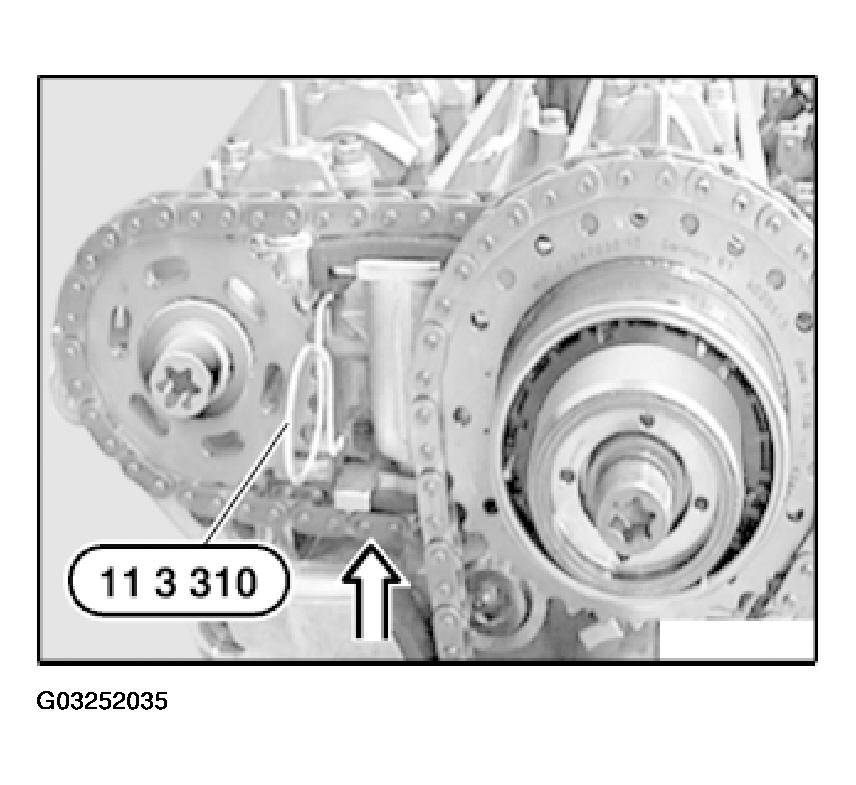

Compress chain tensioner on cylinder bank 1 to 4 and lock with special tool 11 3 310.

Fig 15: Identifying Compress Chain Tensioner Locking With Special Tool 11 3 310

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

Remove screws (1 and 2) on cylinder bank 1 to 4.

Fig 16: Removing Screws On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

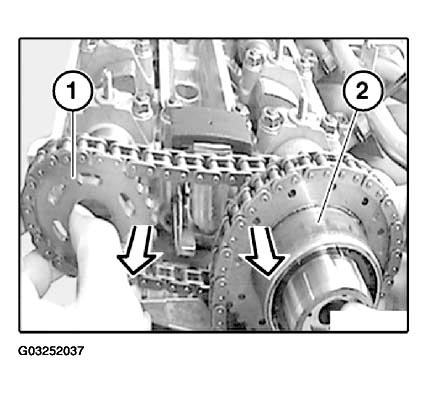

Pull exhaust sprocket wheel (1) and camshaft adjustment unit (2) forwards until they are no longer secured on camshafts.

Fig 17: Pulling Exhaust Sprocket Wheel And Camshaft Adjustment Unit Forwards

Courtesy of BMW OF NORTH AMERICA, INC.

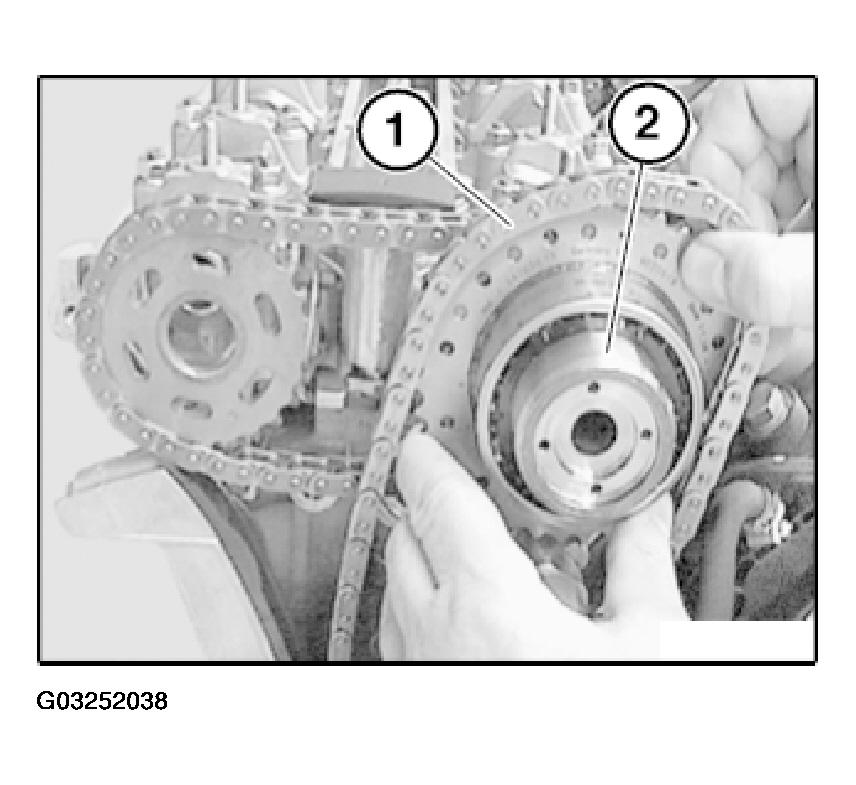

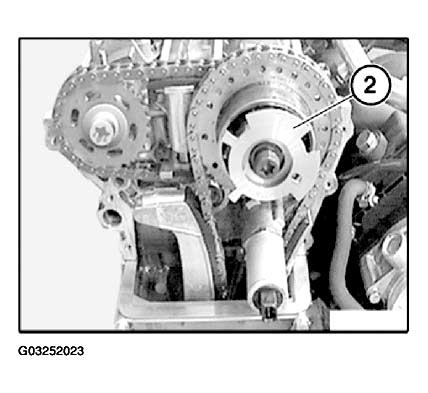

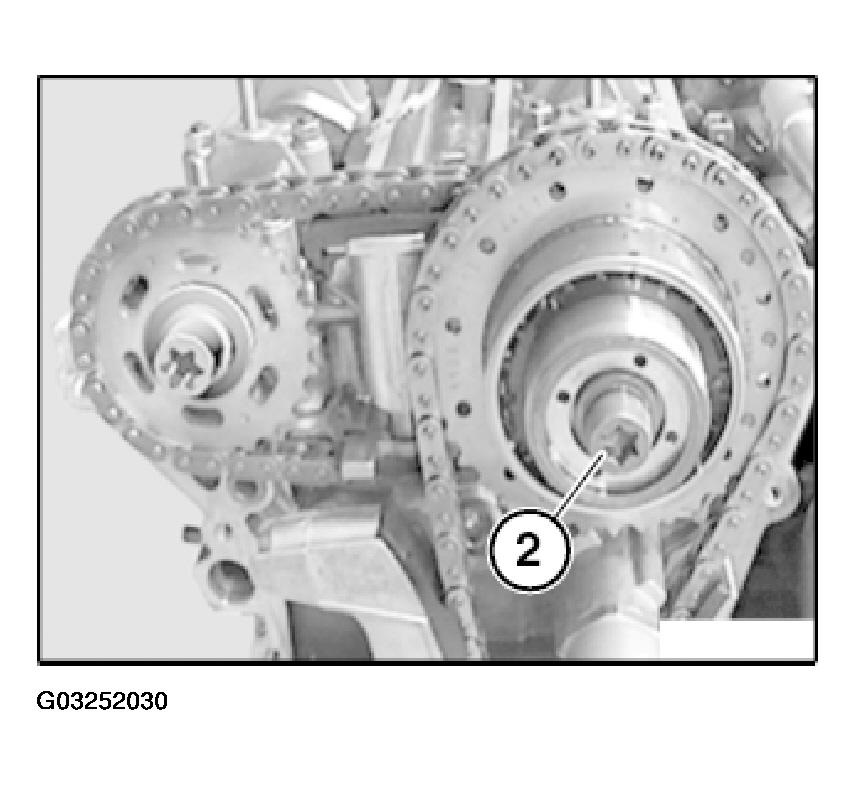

Feed out timing chain (1) forwards over sprocket wheel of camshaft adjustment unit (2).

Feed out exhaust sprocket wheel with secondary chain and camshaft adjustment unit (2).

Fig 18: Feeding Out Timing Chain Forwards Over Sprocket Wheel Of Camshaft Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 11 5 180.

Assemble engine.

Fig 1: Removing Special Tool 11 5 180

Courtesy of BMW OF NORTH AMERICA, INC.
