11 36 590 Removing and installing/replacing solenoid valve of camshaft adjustment unit, right (M62 VANOS from 9/98): Installation

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

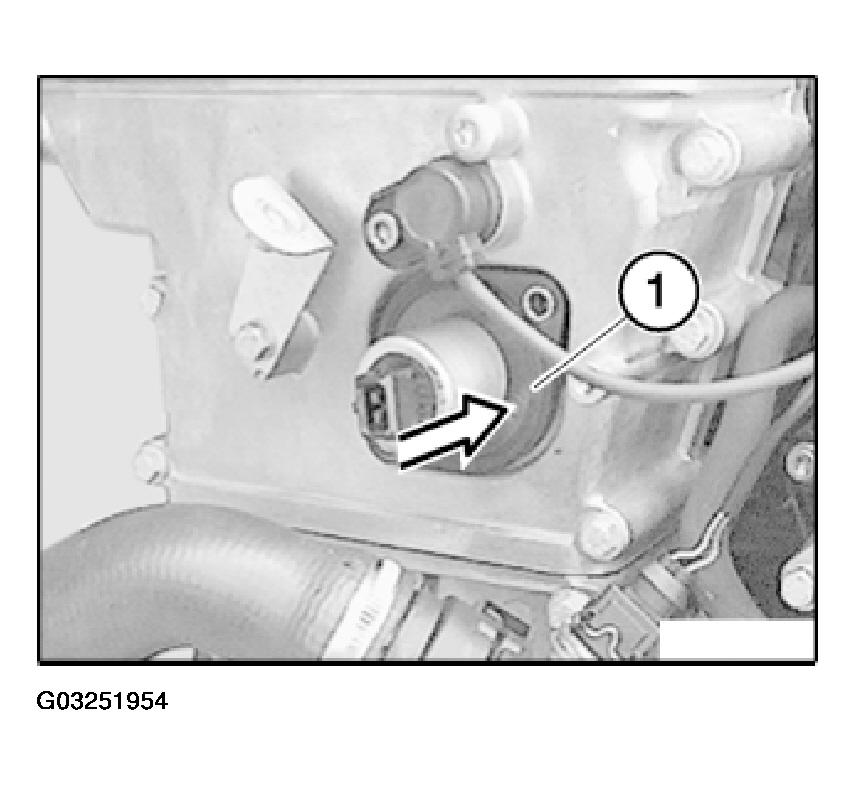

Install solenoid valve (1).

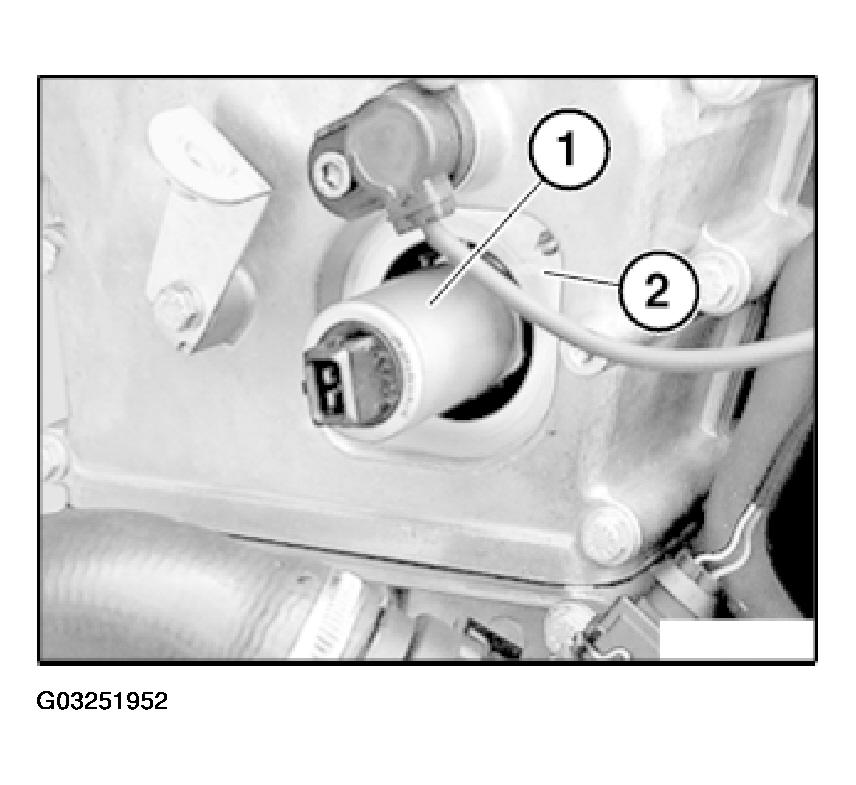

Clean solenoid valve (1) and sealing face (2).

Fig 1: Installing Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

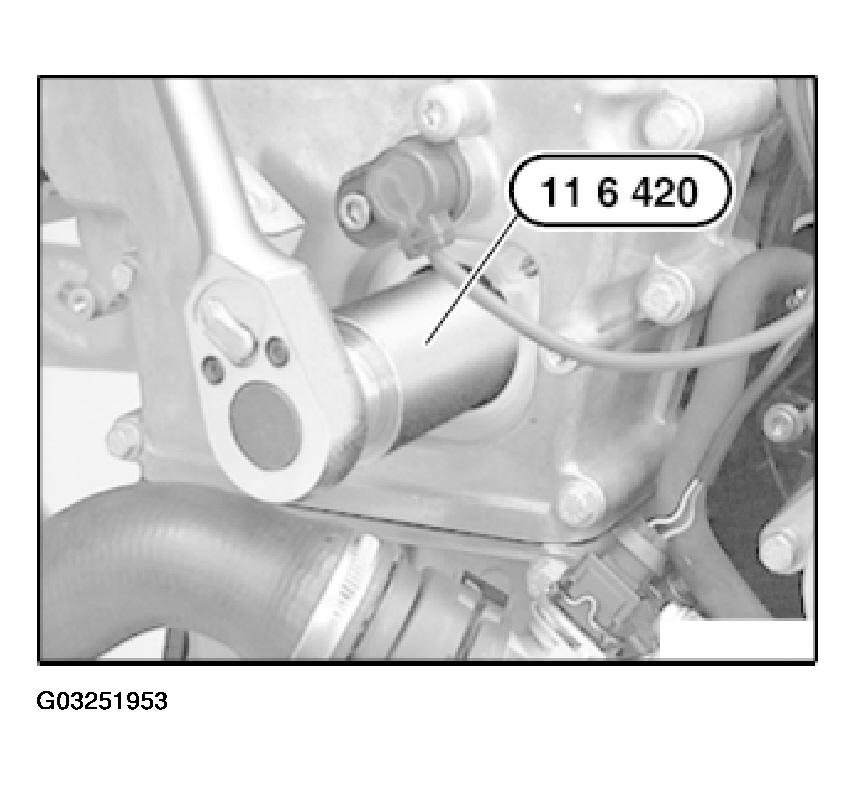

Tighten down solenoid valve with special tool 11 6 420.

Tightening Torque,

refer to 11 36 12AZ in ENGINE - TIGHTENING TORQUES

Fig 2: Tightening Solenoid Valve With Special Tool 11 6 420

Courtesy of BMW OF NORTH AMERICA, INC.

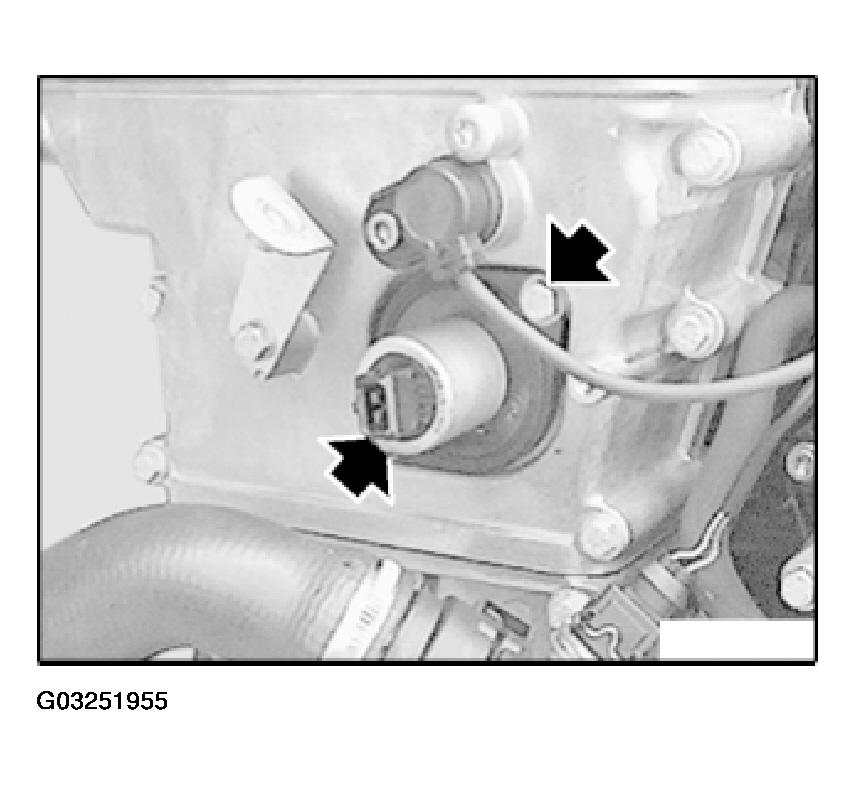

Check sealing flange (1), replace if necessary.

Apply a light coat of oil to inside of sealing flange (1) at sealing face to solenoid valve and carefully install.

Fig 3: Installing Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws on sealing flange and tighten down.

Fig 4: Inserting Screws On Sealing Flange

Courtesy of BMW OF NORTH AMERICA, INC.
