E53 (X5)

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Secure crankshaft with special tool 11 5 180 in TDC firing position of first cylinder.

CAUTION: Remove special tool 11 5 180 before starting engine.

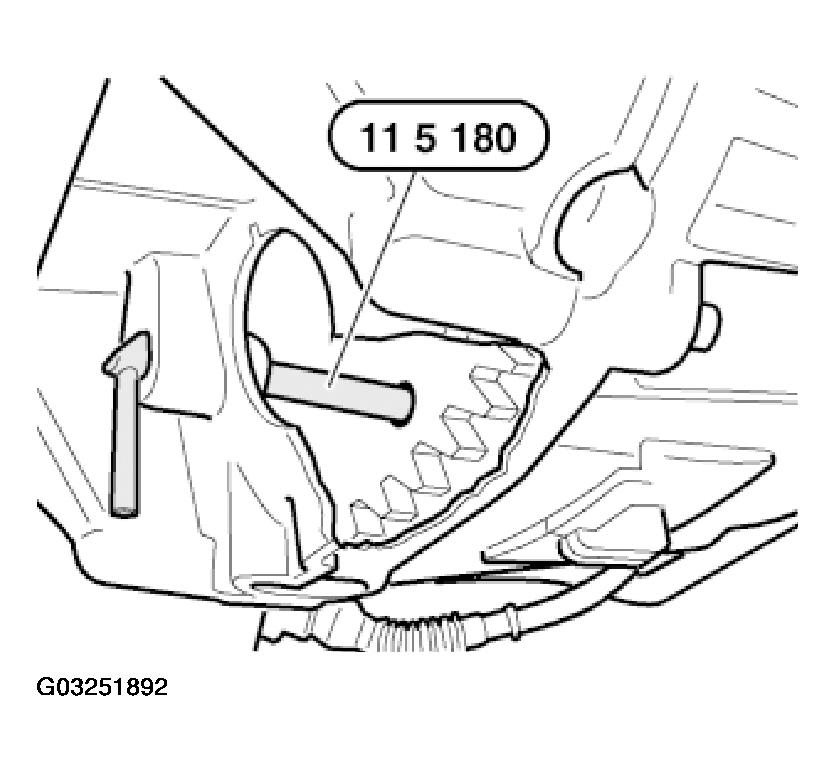

Fig 1: Securing Crankshaft With Special Tool 11 5 180

Courtesy of BMW OF NORTH AMERICA, INC.

Remove chain tensioning piston.

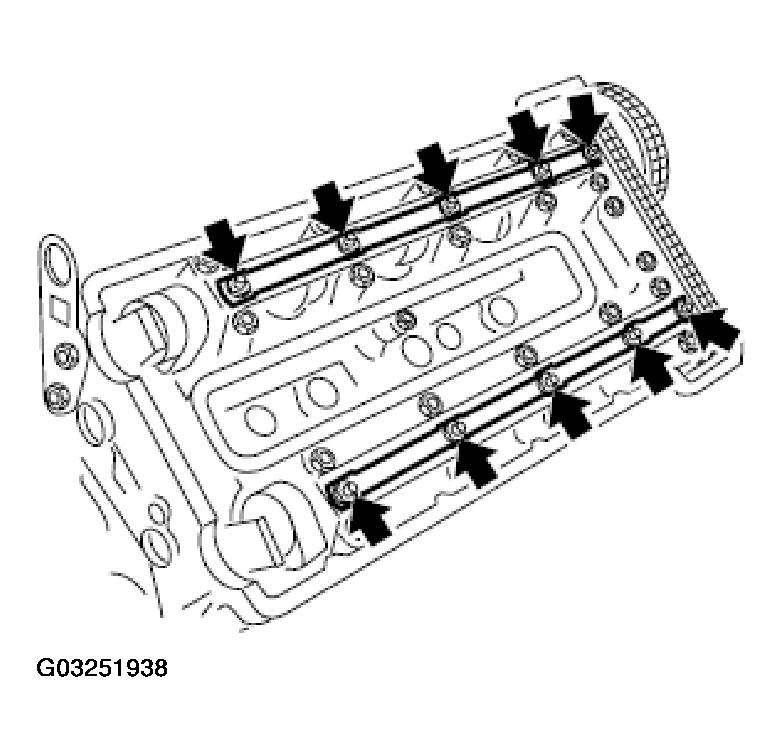

Remove both timing case covers at top.

CAUTION: Left-hand threads.

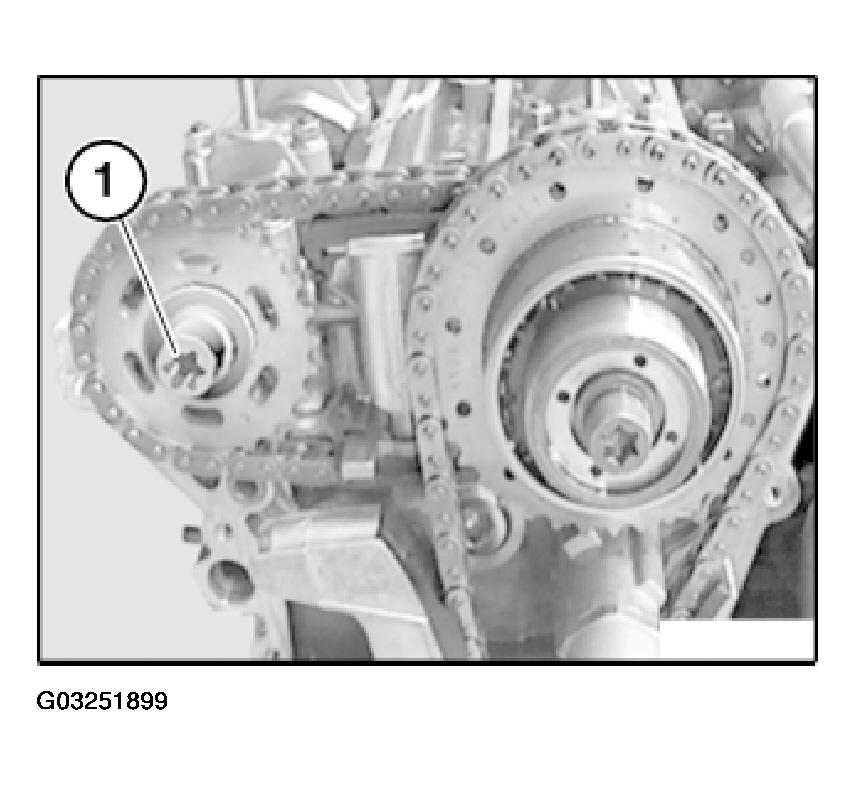

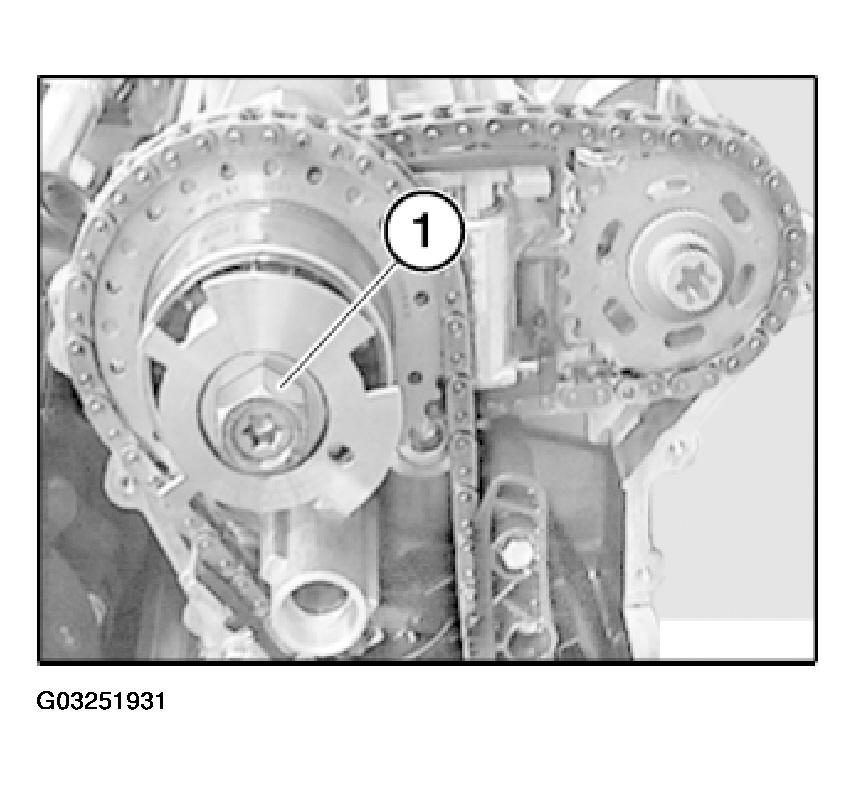

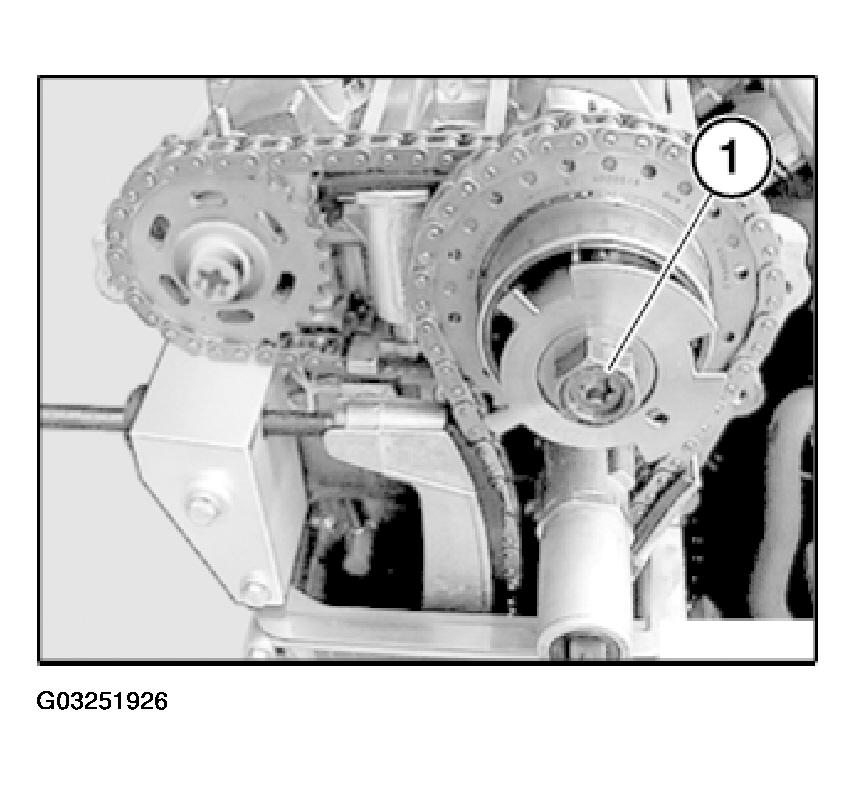

Release nut (1) on sensor gear screw connection on cylinder bank 1 to 4.

Fig 2: Releasing Nut On Sensor Gear Screw Connection On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

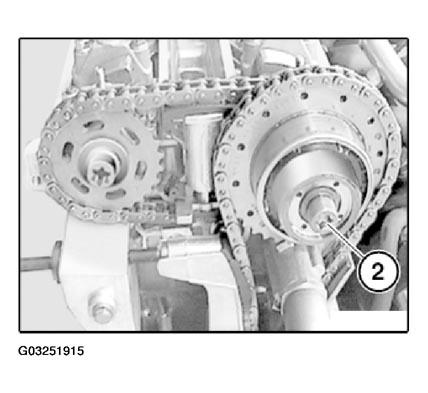

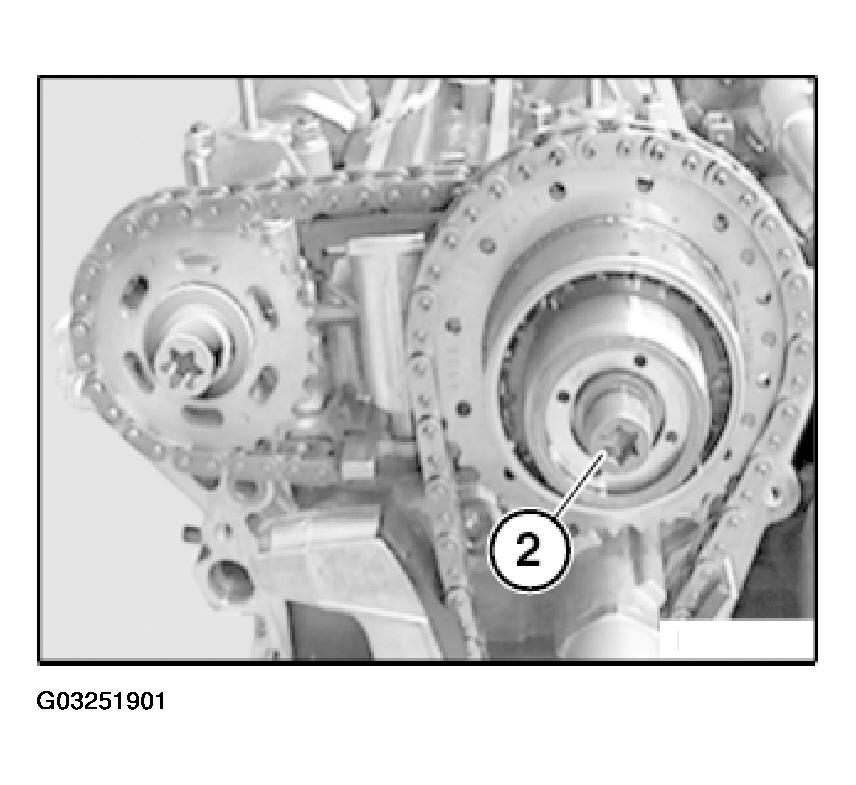

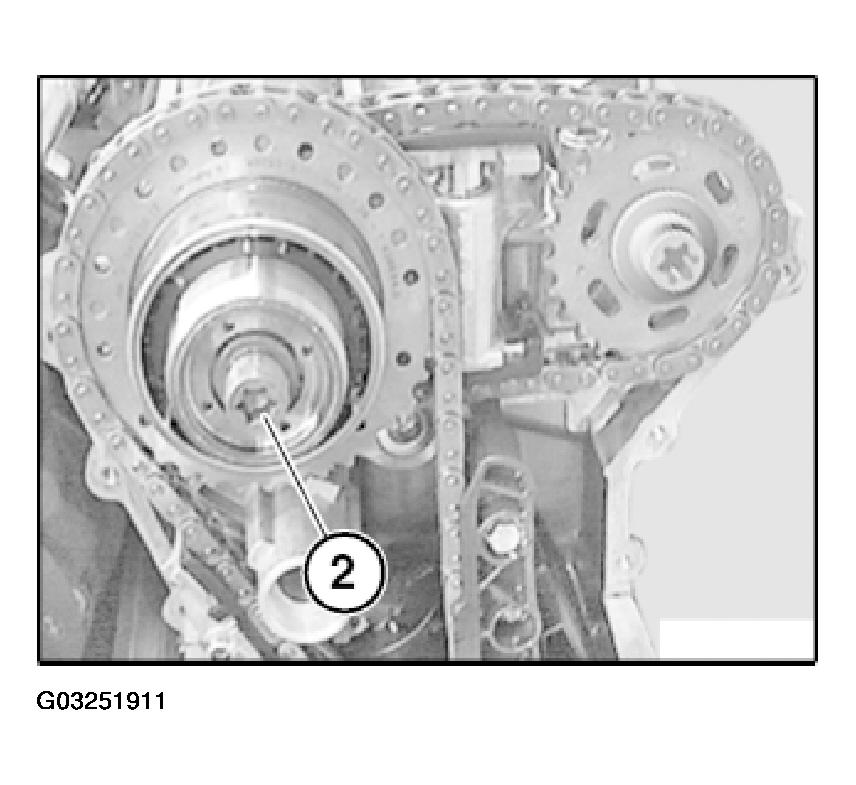

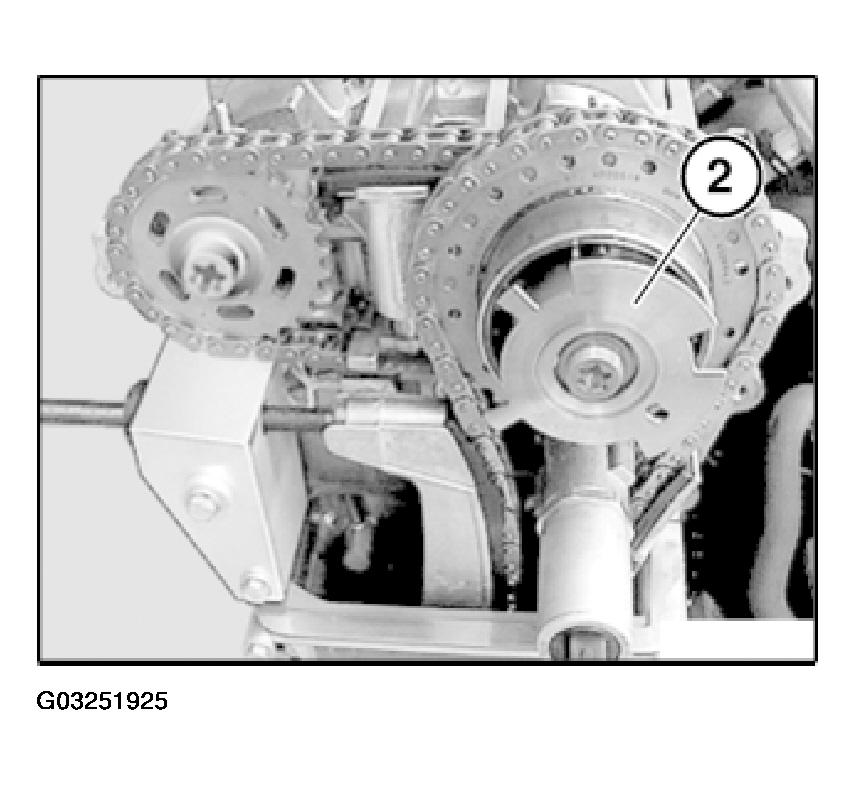

Remove sensor gear (2) on cylinder bank 1 to 4.

Fig 3: Removing Sensor Gear On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

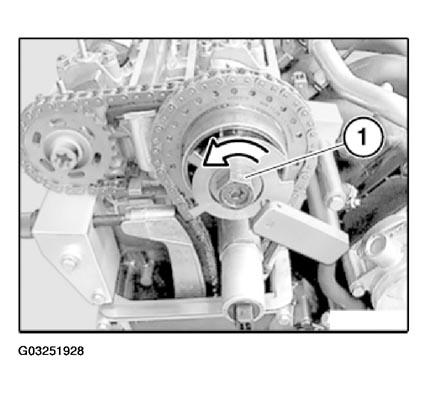

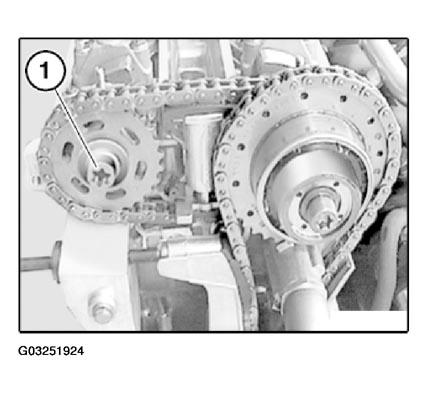

Release nut (1) on sensor gear screw connection on cylinder bank 5 to 8.

Fig 4: Releasing Nut On Sensor Gear Screw Connection On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

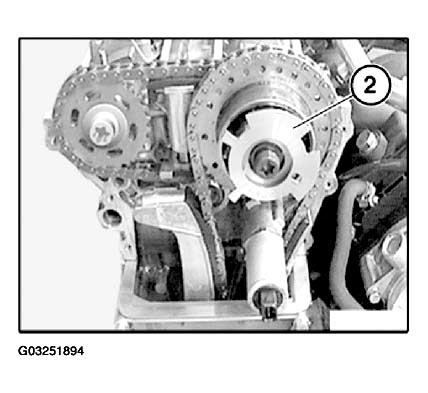

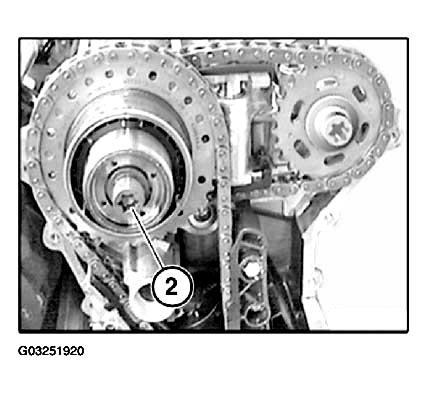

Remove sensor gear (2) on cylinder bank 5 to 8.

Fig 5: Removing Sensor Gear On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not damage the cylinder head.
If necessary, machine open-end wrench accordingly.

When releasing camshaft screw connection grip camshaft at hexagon head.

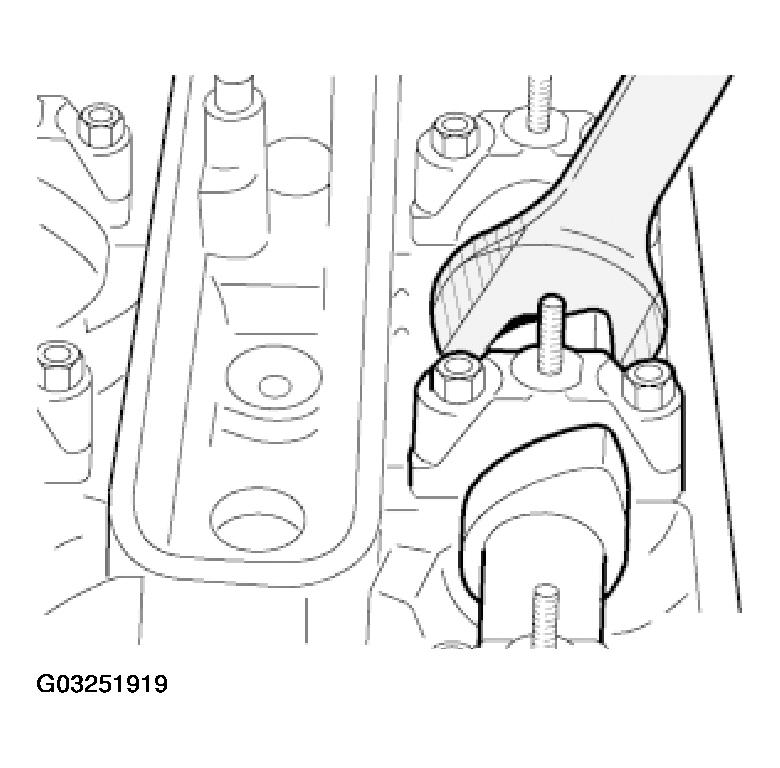

Fig 6: Releasing Camshaft Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

When releasing camshaft screw connection grip camshaft at hexagon head.

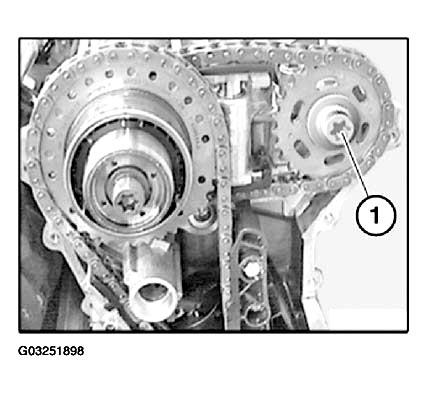

Slacken screw connection (1) of exhaust camshaft on cylinder bank 5 to 8 by approx. a half turn.

Fig 7: Slackening Screw Connection Of Exhaust Camshaft On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

When releasing camshaft screw connection grip camshaft at hexagon head.

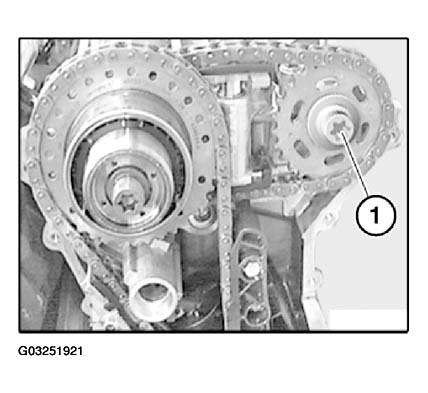

Slacken screw connection (1) of exhaust camshaft on cylinder bank 1 to 4 by approx. a half turn.

Fig 8: Slackening Screw Connection Of Exhaust Camshaft On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

When releasing camshaft screw connection grip camshaft at hexagon head.

Slacken screw connection (2) of inlet camshaft on cylinder bank 5 to 8 by approx. a half turn.

Fig 9: Slackening Screw Connection Of Inlet Camshaft On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

When releasing camshaft screw connection grip camshaft at hexagon head.

Slacken screw connection (2) of inlet camshaft on cylinder bank 1 to 4 by approx. a half turn.

Fig 10: Slackening Screw Connection Of Inlet Camshaft On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

Align camshafts.

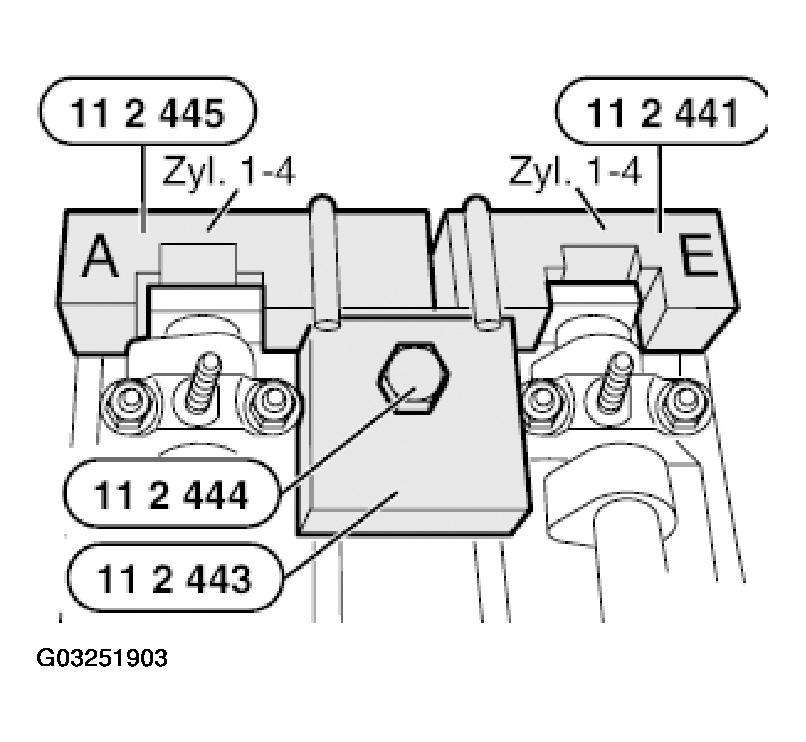

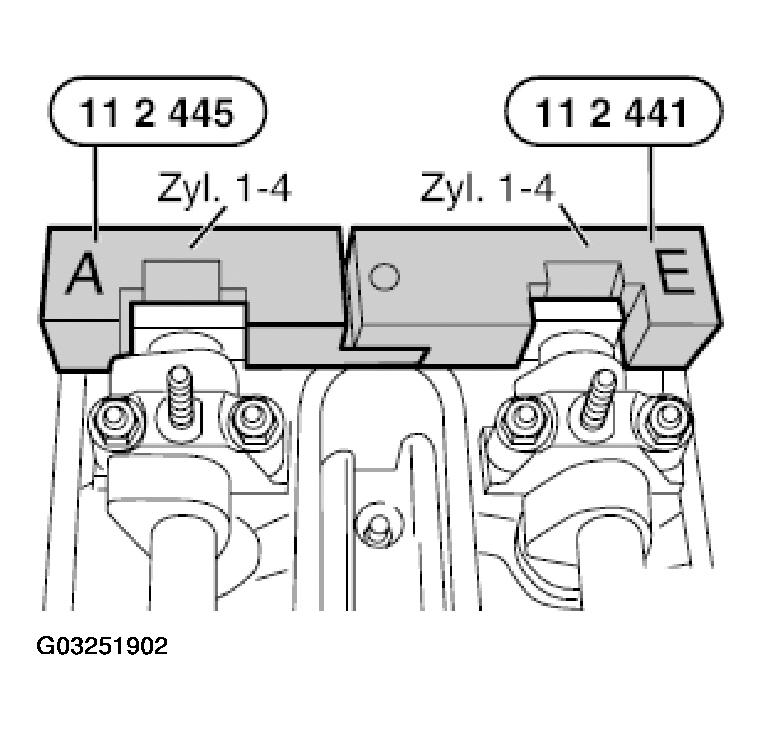

Attach special tool 11 2 445 / 11 2 441 to camshafts, cylinder bank 1 to 4.

Fig 11: Connecting Special Tool 11 2 445 / 11 2 441 To Camshafts On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 2 443 to special tool 11 2 445 / 11 2 441 and secure with special tool 11 2 444 via spark plug thread.

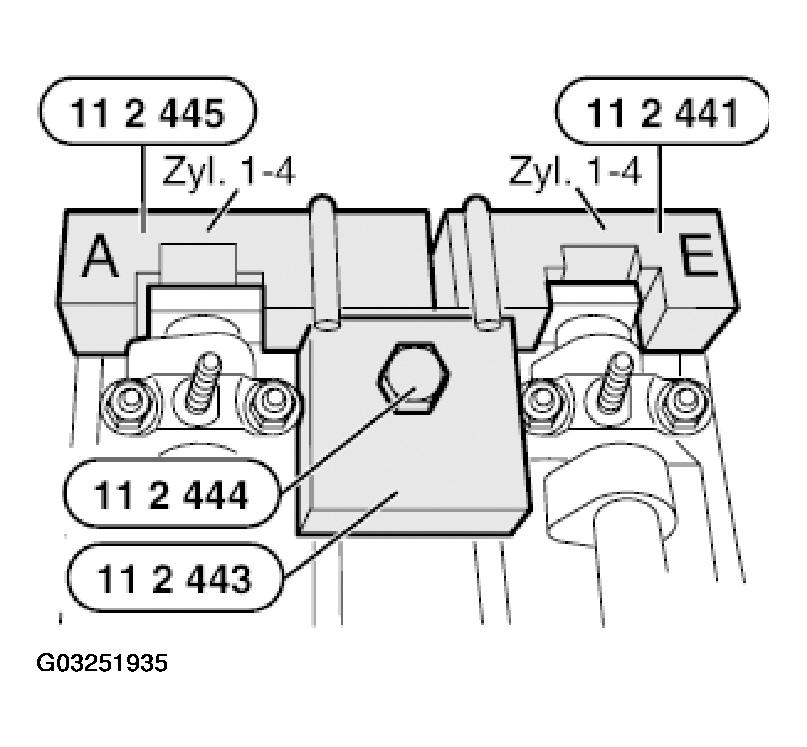

Fig 12: Identifying Special Tools Securing With Special Tool 11 2 444

Courtesy of BMW OF NORTH AMERICA, INC.

Align camshafts.

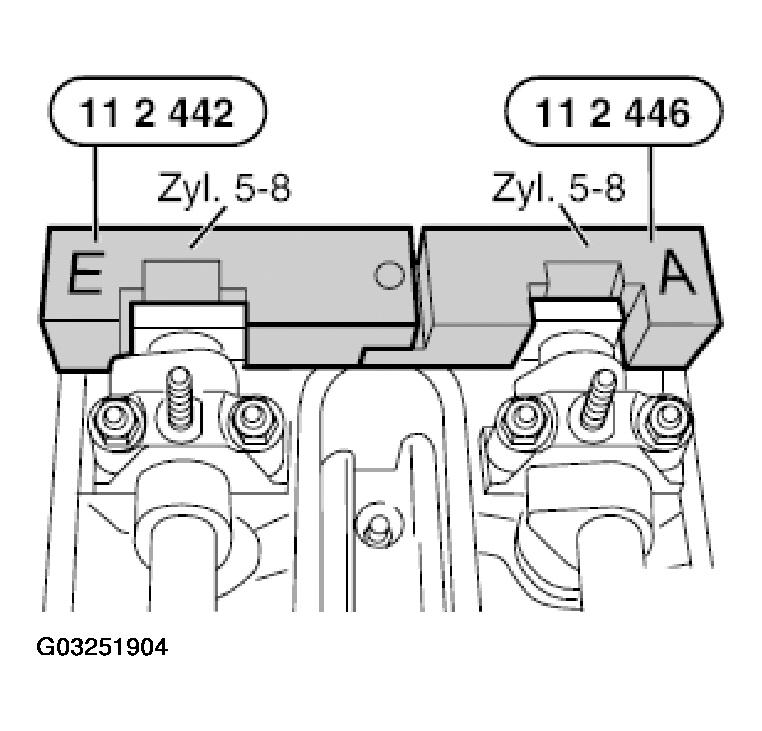

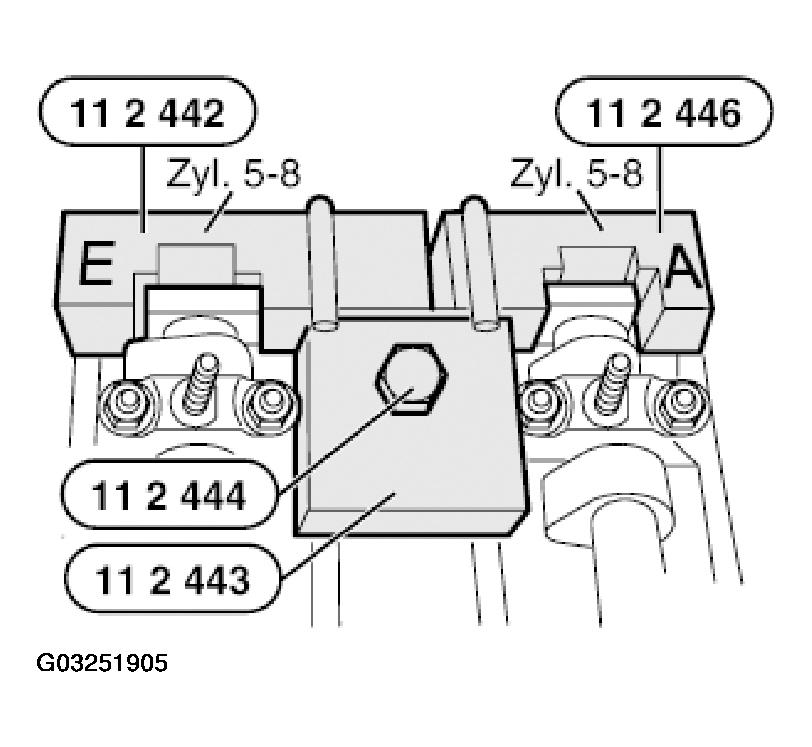

Attach special tool 11 2 446 / 11 2 442 to camshafts, cylinder bank 5 to 8.

Fig 13: Connecting Special Tool 11 2 446 / 11 2 442 To Camshafts On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

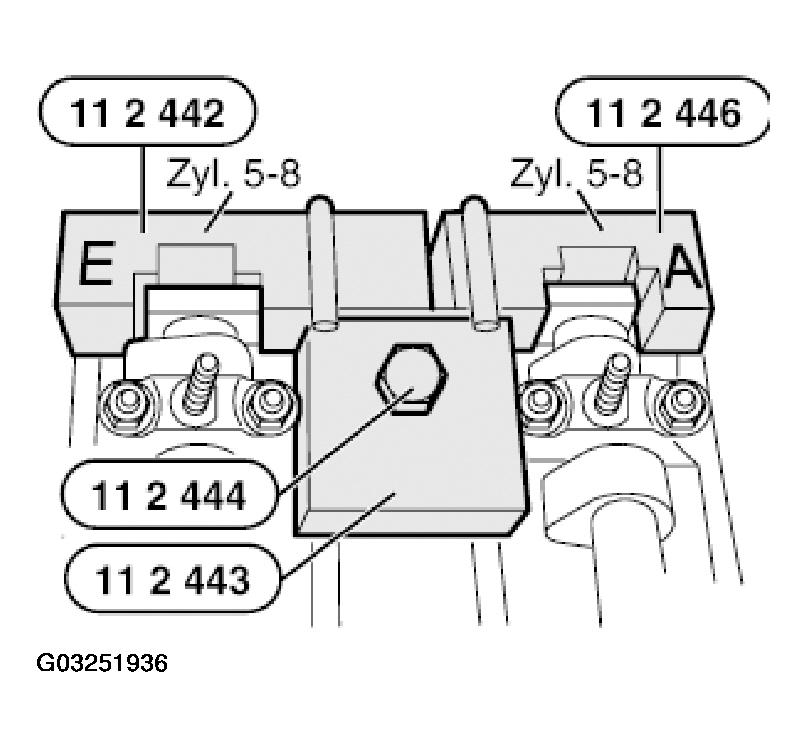

Attach special tool 11 2 443 to special tool 11 2 446 / 11 2 442 and secure with special tool 11 2 444 via spark plug thread.

Fig 14: Identifying Special Tools Securing With Special Tool 11 2 444

Courtesy of BMW OF NORTH AMERICA, INC.

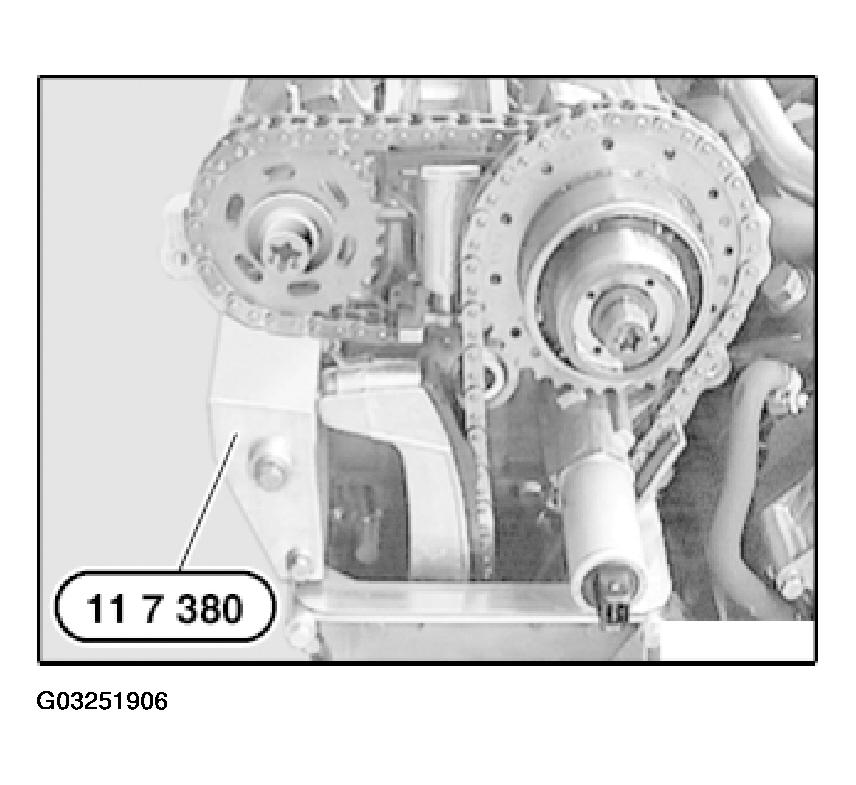

Fit special tool 11 7 380 to right cylinder head on cylinder bank 1 to 4.

Fig 15: Fitting Special Tool 11 7 380 To Right Cylinder Head On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

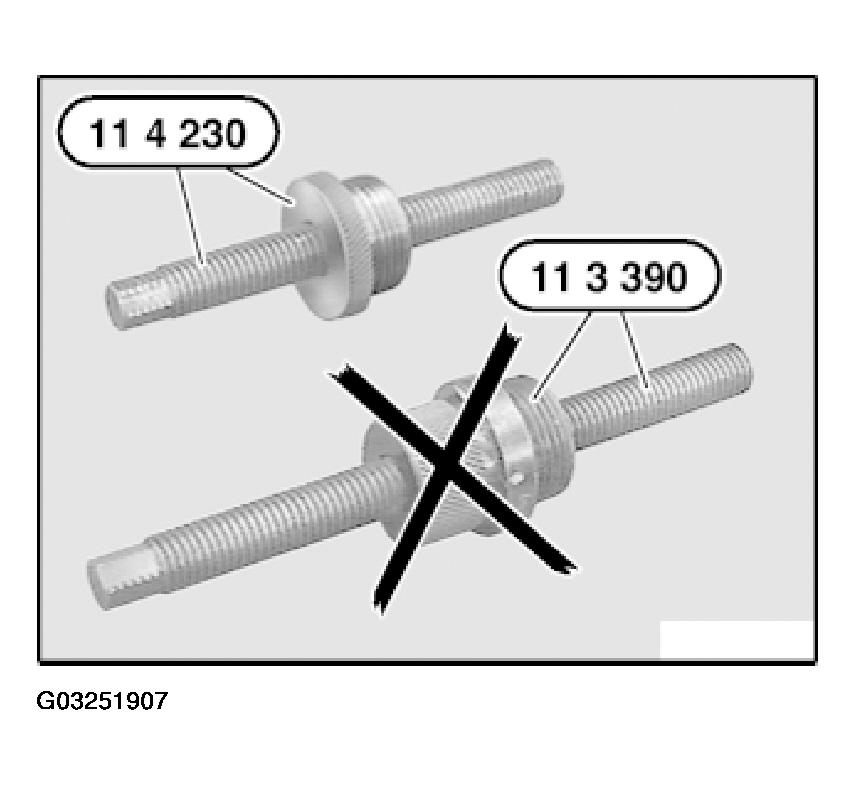

NOTE: The special tool kit 11 3 390 can no longer be fitted in the E53 (X5) with M62 engine due to the altered space conditions.
With the market launch of the E53 (X5) with M62 engine, the special tool kit 11 3 390 is dropped.
The shorter special tool kit 11 4 230 comprising special tools 11 4 231 and 11 4 232 replaces the special tool kit 11 3 390.

Fig 16: Precaution For Special Tool Kit 11 4 230

Courtesy of BMW OF NORTH AMERICA, INC.

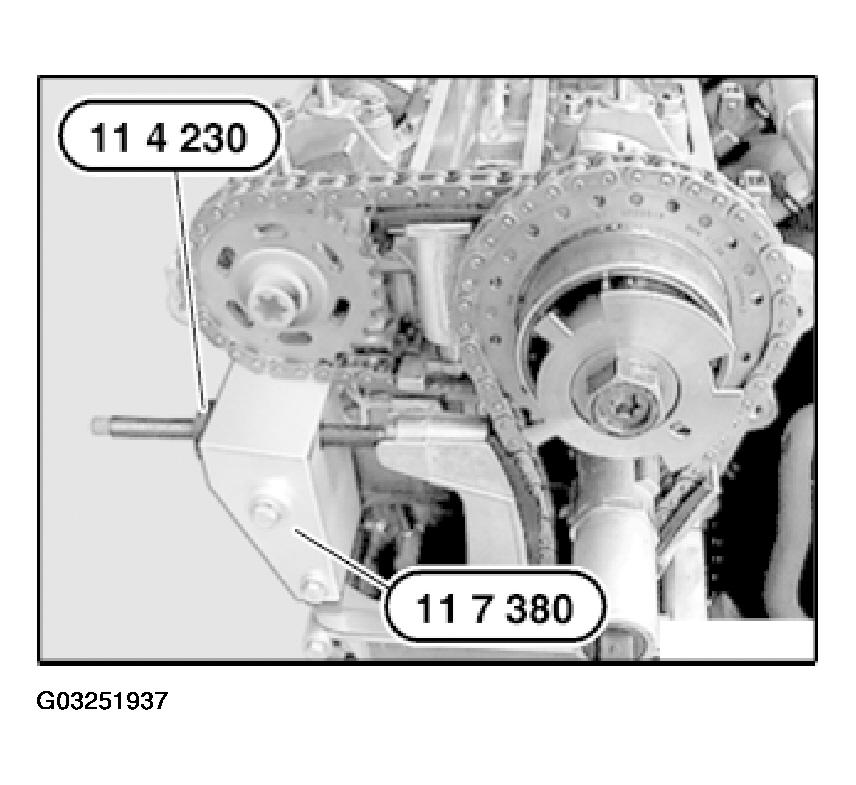

Insert special tool kit 11 4 230 in special tool 11 7 380.

Screw in adjustment screw on tensioning rail, but do not tighten yet.

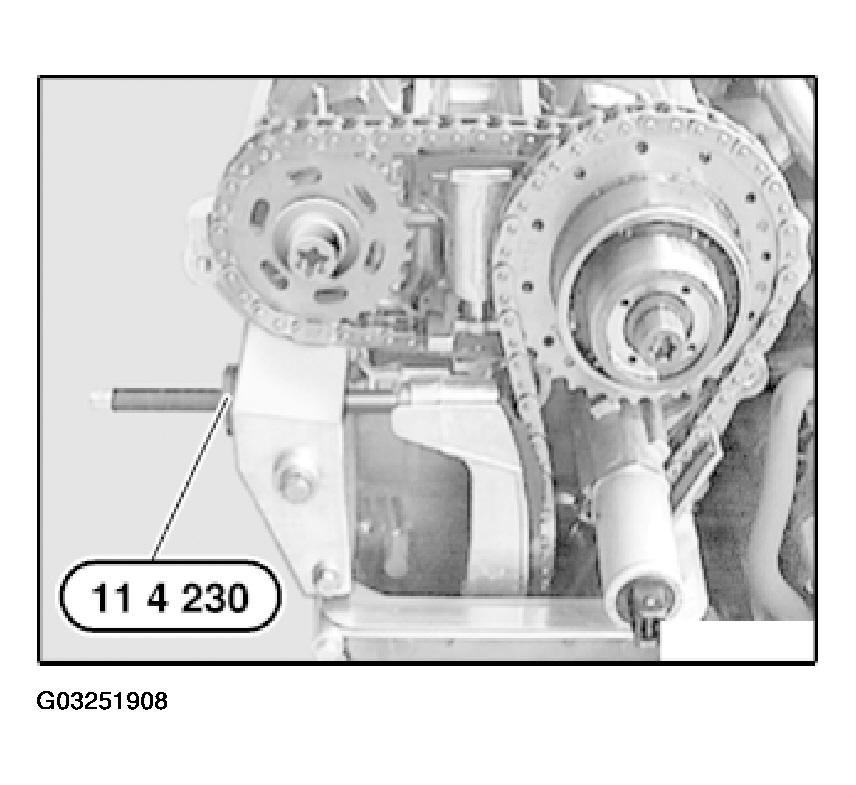

Fig 17: Inserting Special Tool Kit 11 4 230 In Special Tool 11 7 380

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The continuity test with the multimeter described in the following is not possible on the M62 B46 because of the different design of the camshaft adjustment unit.
The remaining procedure is identical.

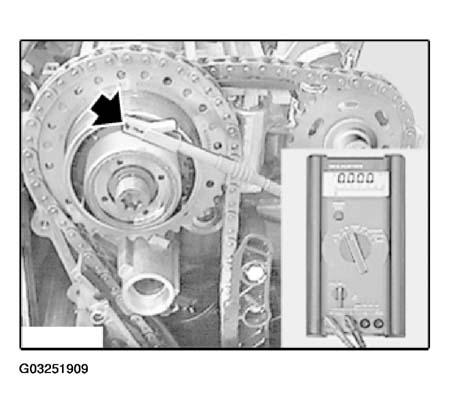

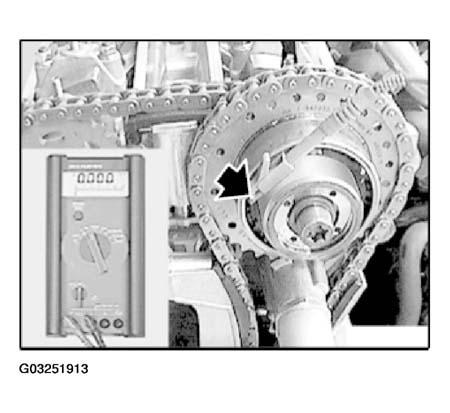

Connect a commercially available multimeter to a contact pin on camshaft adjustment unit and to the screw connection on oil line on cylinder bank 5 to 8.

Set multimeter to acoustic continuity test.

Fig 18: Connecting Multimeter To Screw Connection On Oil Line On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

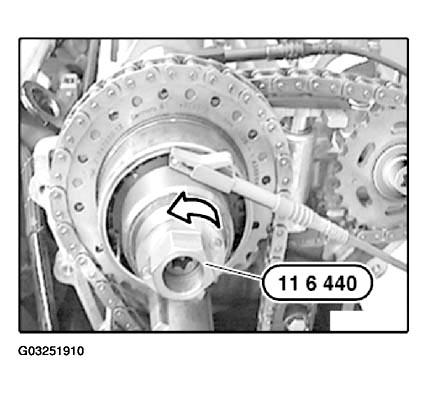

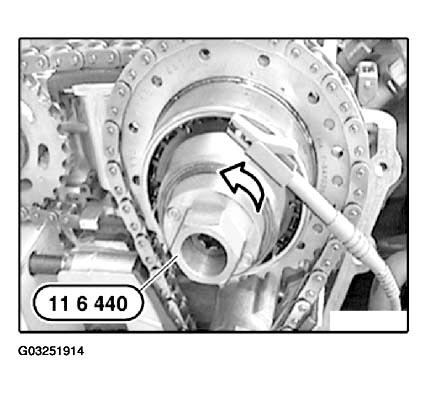

Attach special tool 11 6 440 to camshaft adjustment unit on cylinder bank 5 to 8 and move at 40 N.m to left-hand stop.

Check left-hand stop of camshaft adjustment unit with acoustic continuity test on multimeter.

Fig 19: Connecting Special Tool 11 6 440 To Camshaft Adjustment Unit On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Rotating the camshaft adjustment unit at 40 N.m to the left-hand stop ensures that the end position is reached and there is no longer an "oil cushion" before the left-hand stop of the camshaft adjustment unit.
In the camshaft adjustment unit, there are three contacts which are closed when the unit is at the left-hand stop.
During the acoustic continuity test with the multimeter, a sound signal can be heard when the camshaft adjustment unit is at the left-hand stop.

CAUTION: Left-hand threads.

Tighten screw connection (2) of inlet camshaft on cylinder bank 5 to 8 to an initial torque of 15 N.m and then slacken off again by a 1/4 turn.

Fig 20: Tightening Screw Connection Of Inlet Camshaft On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

Tighten screw connection (1) of exhaust camshaft on cylinder bank 5 to 8 to an initial torque of 15 N.m and then slacken off again by a 1/4 turn.

Fig 21: Tightening Screw Connection Of Exhaust Camshaft On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

Connect a commercially available multimeter to a contact pin on camshaft adjustment unit and to the screw connection on oil line on cylinder bank 1 to 4.

Set multimeter to acoustic continuity test.

Fig 22: Connecting Multimeter To Screw Connection On Oil Line On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 6 440 to camshaft adjustment unit on cylinder bank 1 to 4 and move at 40 N.m to left-hand stop.

Check left-hand stop of camshaft adjustment unit with acoustic continuity test on multimeter.

Fig 23: Connecting Special Tool 11 6 440 To Camshaft Adjustment Unit On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

Tighten screw connection (2) of inlet camshaft on cylinder bank 1 to 4 to an initial torque of 15 N.m and then slacken off again by a 1/4 turn.

Fig 24: Tightening Screw Connection Of Inlet Camshaft On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

Tighten screw connection (1) of exhaust camshaft on cylinder bank 1 to 4 to an initial torque of 15 N.m and then slacken off again by a 1/4 turn.

Fig 25: Tightening Screw Connection Of Exhaust Camshaft On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

Pretension tensioning rail by turning adjusting screw on special tool 11 4 230 with special tool 00 9 250 to 0.7 N.m.

NOTE: If installation tolerance is unfavorable, attach special tool 00 9 250 from underside.

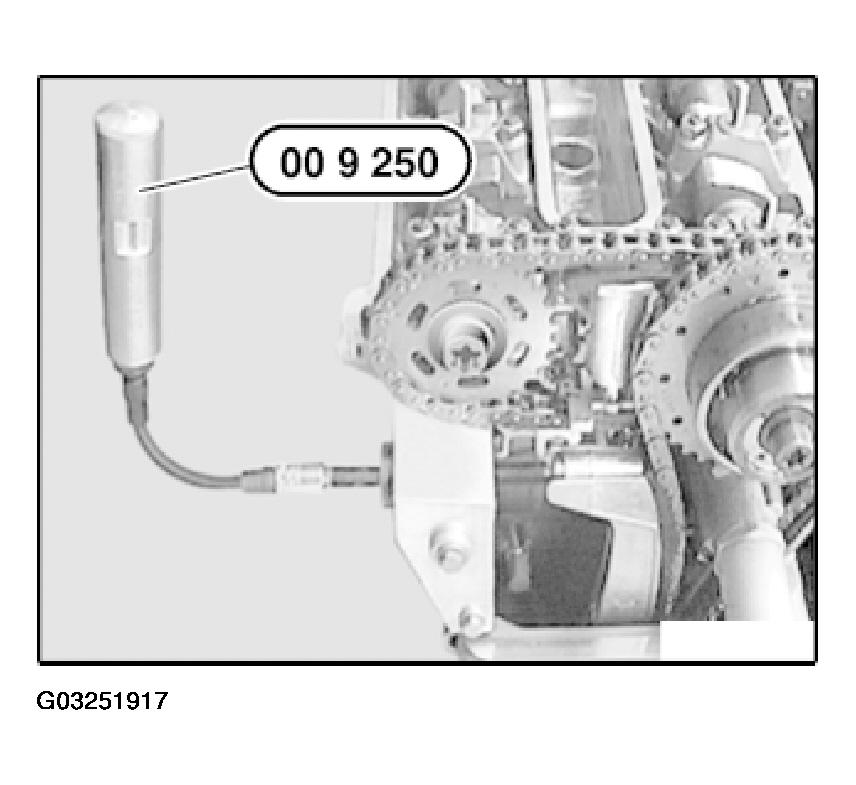

Fig 26: Turning Adjusting Screw On Special Tool 11 4 230 With Special Tool 00 9 250

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Pretensioning the timing chain moves the camshaft adjustment unit and the unit must therefore be reset to the left-hand stop.

Attach special tool 11 6 440 to camshaft adjustment unit on cylinder bank 5 to 8 and move at 40 N.m to left-hand stop.

Check left-hand stop of camshaft adjustment unit with acoustic continuity test on multimeter.

Fig 27: Connecting Special Tool 11 6 440 To Camshaft Adjustment Unit On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not damage the cylinder head.
If necessary, machine open-end wrench accordingly.

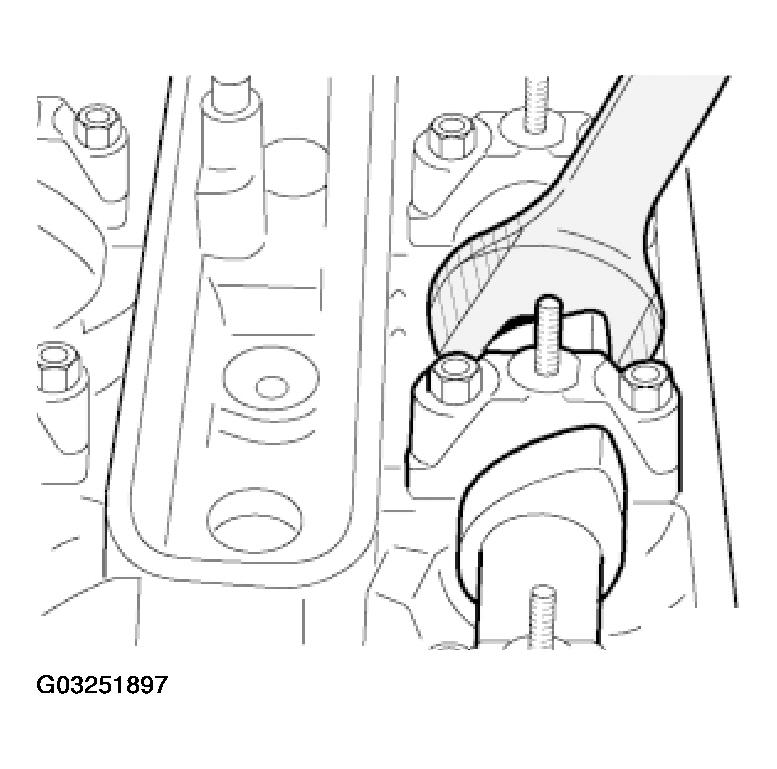

When tightening down camshaft screw connection grip camshaft at hexagon head.

Fig 28: Tightening Camshaft Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

Tighten down screw connection (2) of inlet camshaft on cylinder bank 5 to 8.

Tightening torque, 11 36 14AZ.ENGINE - TIGHTENING TORQUES

Fig 29: Tightening Screw Connection Of Inlet Camshaft On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

When tightening down camshaft screw connection grip camshaft at hexagon head.

Tighten down screw connection (1) of exhaust camshaft on cylinder bank 5 to 8.

Tightening torque, 11 36 13AZ.ENGINE - TIGHTENING TORQUES

Fig 30: Tightening Screw Connection Of Exhaust Camshaft On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 6 440 to camshaft adjustment unit on cylinder bank 1 to 4 and move at 40 N.m to left-hand stop.

Check left-hand stop of camshaft adjustment unit with acoustic continuity test on multimeter.

Fig 31: Attaching Special Tool 11 6 440 To Camshaft Adjustment Unit On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

When tightening down camshaft screw connection grip camshaft at hexagon head.

Tighten down screw connection (2) of inlet camshaft on cylinder bank 1 to 4.

Tightening torque, 11 36 14AZ.ENGINE - TIGHTENING TORQUES

Fig 32: Tightening Screw Connection Of Inlet Camshaft On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

When tightening down camshaft screw connection grip camshaft at hexagon head.

Tighten down screw connection (1) of exhaust camshaft on cylinder bank 1 to 4.

Tightening torque, 11 36 13AZ.ENGINE - TIGHTENING TORQUES

Fig 33: Tightening Screw Connection Of Exhaust Camshaft On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

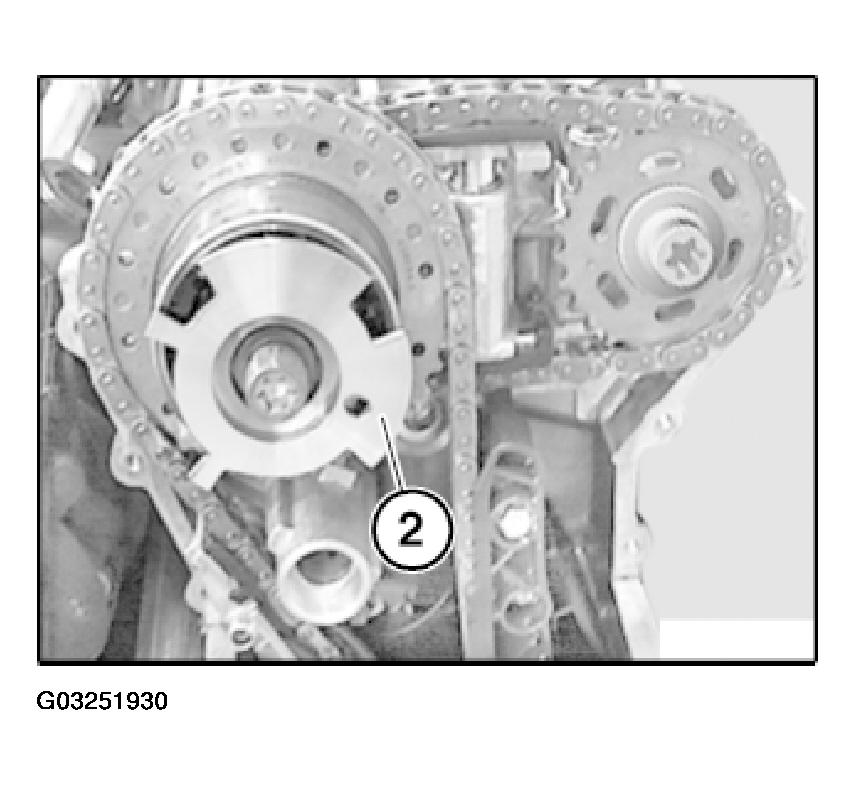

Attach sensor gear (2) to cylinder bank 1 to 4.

Fig 34: Attaching Sensor Gear To Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

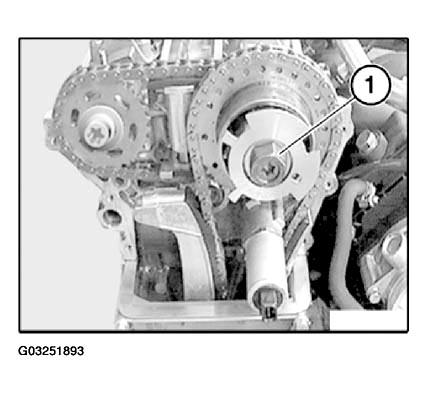

Fit nut (1) of sensor gear screw connection on cylinder bank 1 to 4 and initially tighten without play, but do not tighten down yet.

Fig 35: Fitting Nut Of Sensor Gear Screw Connection On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Special tool kit 11 6 450 comprises:
Special tool 11 6 451 for cylinder bank 1 to 4
Special tool 11 6 452 for cylinder bank 5 to 8

Align locating bore (1) on sensor gear of cylinder bank 1 to 4 to positioning pin on special tool 11 6 451. Fit special tool 11 6 451, insert screws and initially tighten without play. Press special tool 11 6 451 downwards and align to cylinder head. Tighten down special tool 11 6 451.

Fig 36: Aligning Locating Bore On Sensor Gear Of Cylinder Bank 1 To 4 To Positioning Pin On Special Tool 11 6 451

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

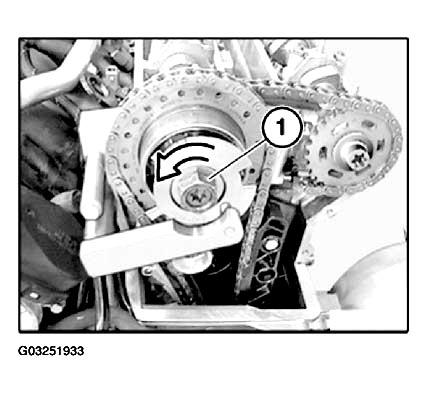

Tighten down nut (1) on sensor gear screw connection.

Tightening torque, 11 36 15AZ.ENGINE - TIGHTENING TORQUES

Fig 37: Tightening Nut On Sensor Gear Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

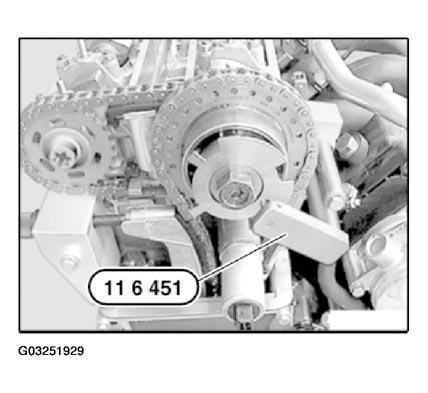

Remove special tool 11 6 451 from right cylinder head on cylinder bank 1 to 4.

Fig 38: Removing Special Tool 11 6 451 From Right Cylinder Head On Cylinder Bank 1 To 4

Courtesy of BMW OF NORTH AMERICA, INC.

Attach sensor gear (2) to cylinder bank 5 to 8.

Fig 39: Connecting Sensor Gear To Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Left-hand threads.

Fit nut (1) of sensor gear screw connection on cylinder bank 5 to 8 and initially tighten without play, but do not tighten down yet.

Fig 40: Fitting Nut Of Sensor Gear Screw Connection On Cylinder Bank 5 To 8

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Special tool kit 11 6 450 comprises:
Special tool 11 6 451 for cylinder bank 1 to 4
Special tool 11 6 452 for cylinder bank 5 to 8

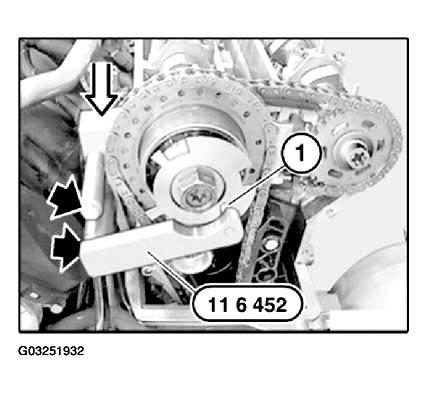

Align locating bore (1) on sensor gear of cylinder bank 5 to 8 to positioning pin on special tool 11 6 452. Fit special tool 11 6 452, insert screws and initially tighten without play. Press special tool 11 6 452 downwards and align to cylinder head. Tighten down special tool 11 6 452.

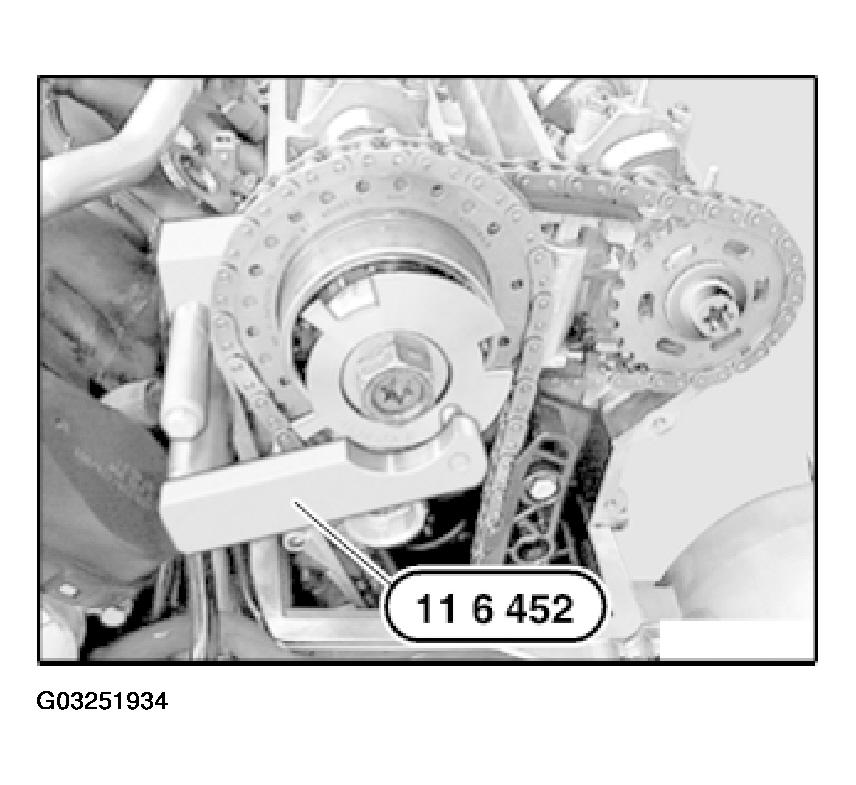

Fig 41: Aligning Locating Bore On Sensor Gear Of Cylinder Bank 5 To 8 To Positioning Pin On Special Tool 11 6 452
