11 13 020 Removing and installing/replacing lower section of oil sump (M62): Installation

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Clean sealing surfaces.

Replace seal.

Insert all screws (1) and tighten down.

Tightening torque,

refer to 11 13 2AZ in ENGINE - TIGHTENING TORQUES

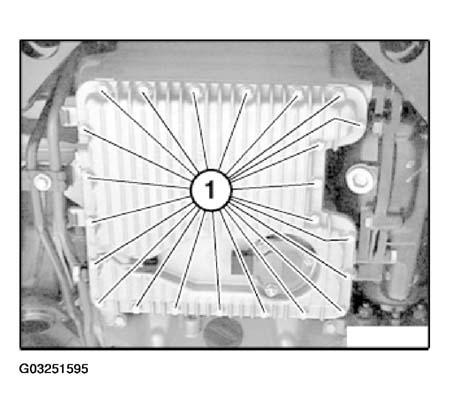

Fig 1: Identifying Screw For Removing Lower Oil Sump Section

Courtesy of BMW OF NORTH AMERICA, INC.
