11 14 085 Removing and installing timing case cover, top right (M62 VANOS from 9/98): Installation

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Clean sealing faces on cylinder head, replace sealing ring on secondary-air line and apply a thin coat of grease as anti-friction agent.

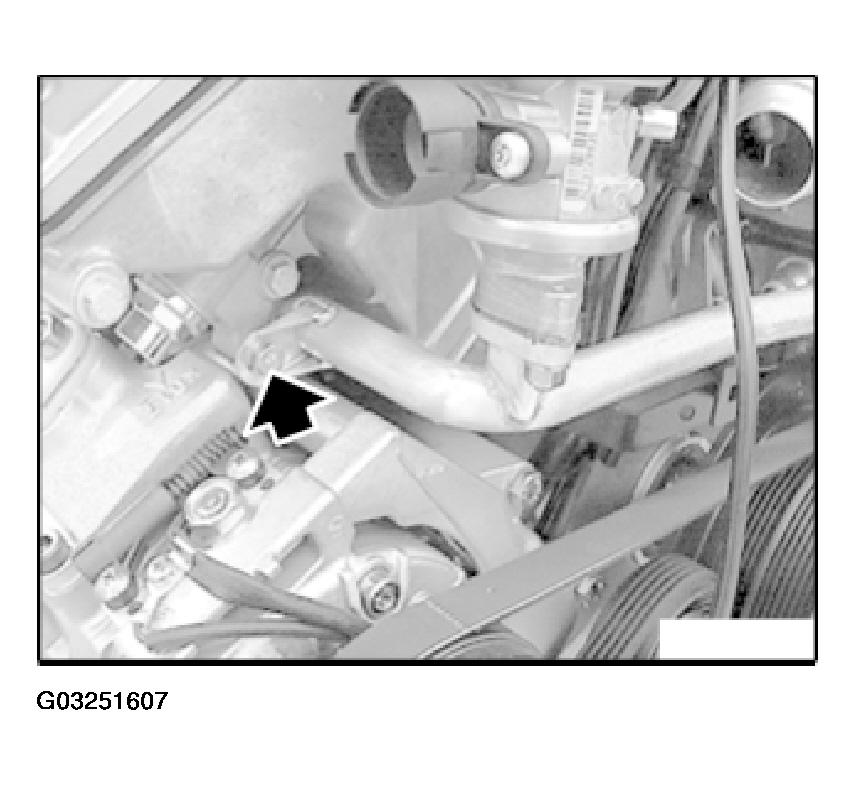

Fig 1: Removing Secondary-Air Line
G03251607Courtesy of BMW OF NORTH AMERICA, INC.

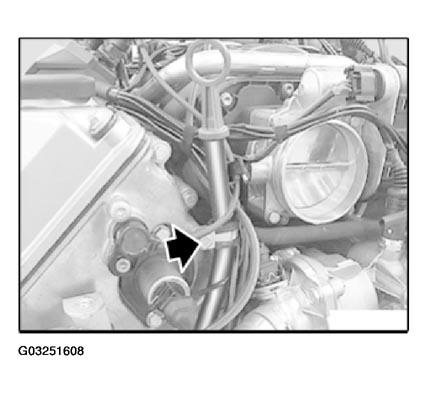

Unfasten top screw from dipstick tube.

Fig 2: Unfastening Top Screw From Dipstick Tube
G03251608Courtesy of BMW OF NORTH AMERICA, INC.

Remove right cylinder head cover. These tasks are described in the work step Removing and installing/sealing both cylinder head covers,

refer to 11 12 004 REMOVING AND INSTALLING/SEALING BOTH CYLINDER HEAD COVERS (M62) .

Remove piston for chain tensioner,

refer to 11 31 090 INSTALLING AND REMOVING / REPLACING PISTON FOR CHAIN TENSIONER (M62) .

Release screws on sealing flange.

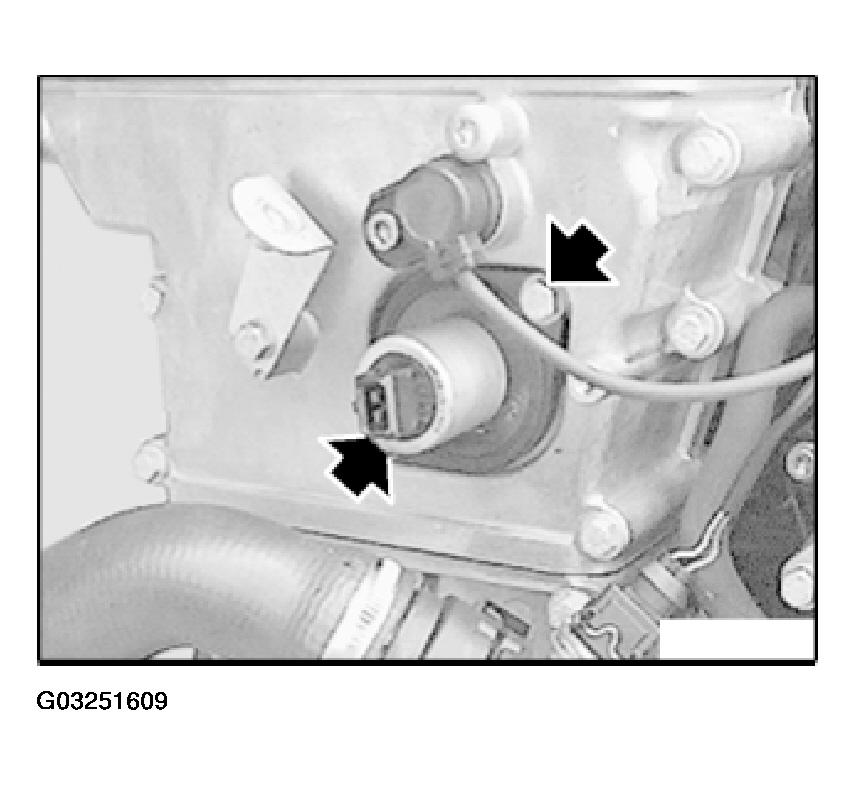

Fig 3: Releasing Screws On Sealing Flange
G03251609Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The sealing flange seals the timing case cover via the solenoid valve.

If necessary, clean solenoid valve with a cloth.

Remove sealing flange (1).

Fig 4: Removing Sealing Flange
G03251610Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove camshaft sensor or disconnect plug connection to cable duct.

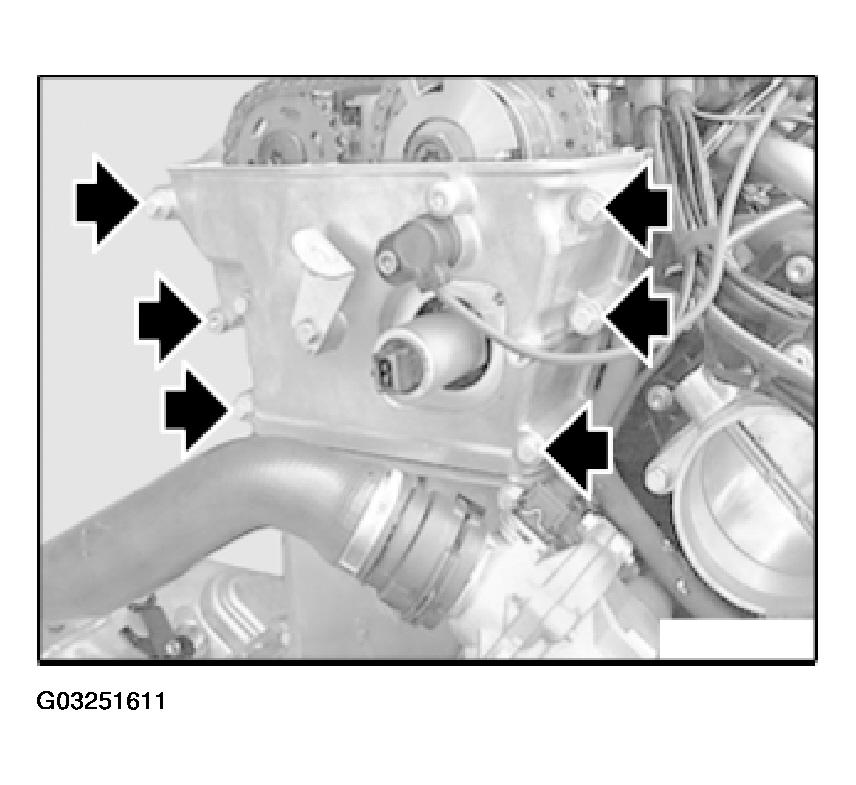

Release screws and remove timing case cover at top.

Fig 5: Identifying Timing Case Cover Releasing Screws At Top
G03251611Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber sealing strip.

Clean groove for rubber profile seal and sealing surfaces of remains of seal.

Fig 6: Removing Rubber Sealing Strip
G03251612Courtesy of BMW OF NORTH AMERICA, INC.

Replace sealing ring in cylinder head for oil supply of chain tensioner.

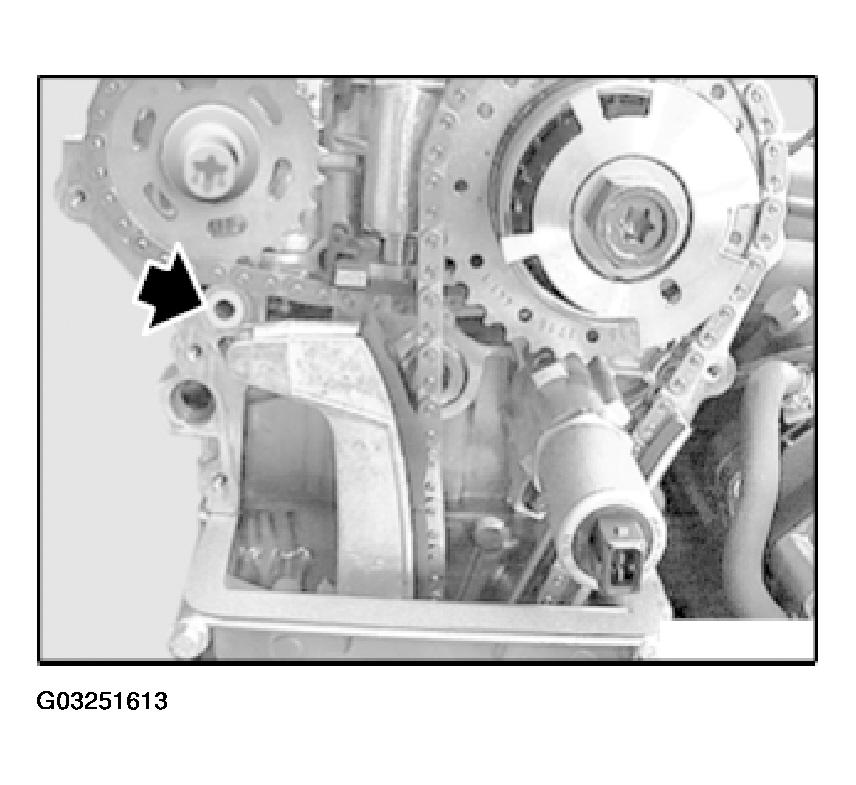

Fig 7: Identifying Chain Tensioner Oil Supply
G03251613Courtesy of BMW OF NORTH AMERICA, INC.

Keep sealing faces clean and free of oil.

Apply coat of Drei Bond 1209 to joint between cylinder head and lower timing case cover.

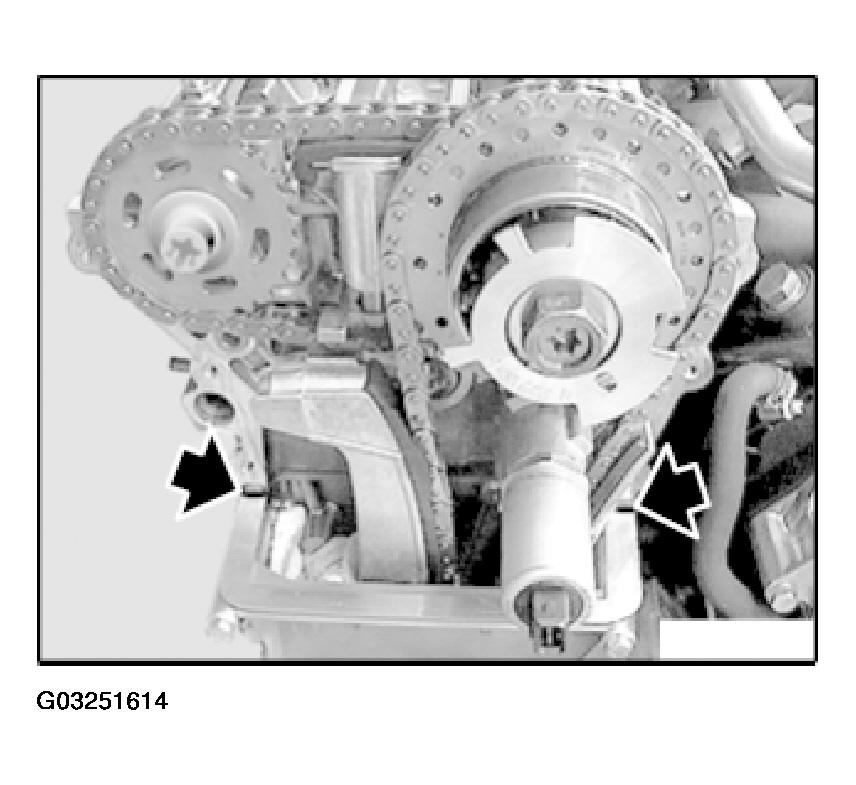

Fig 8: Identifying Joint Between Cylinder Head And Lower Timing Case Cover
G03251614Courtesy of BMW OF NORTH AMERICA, INC.

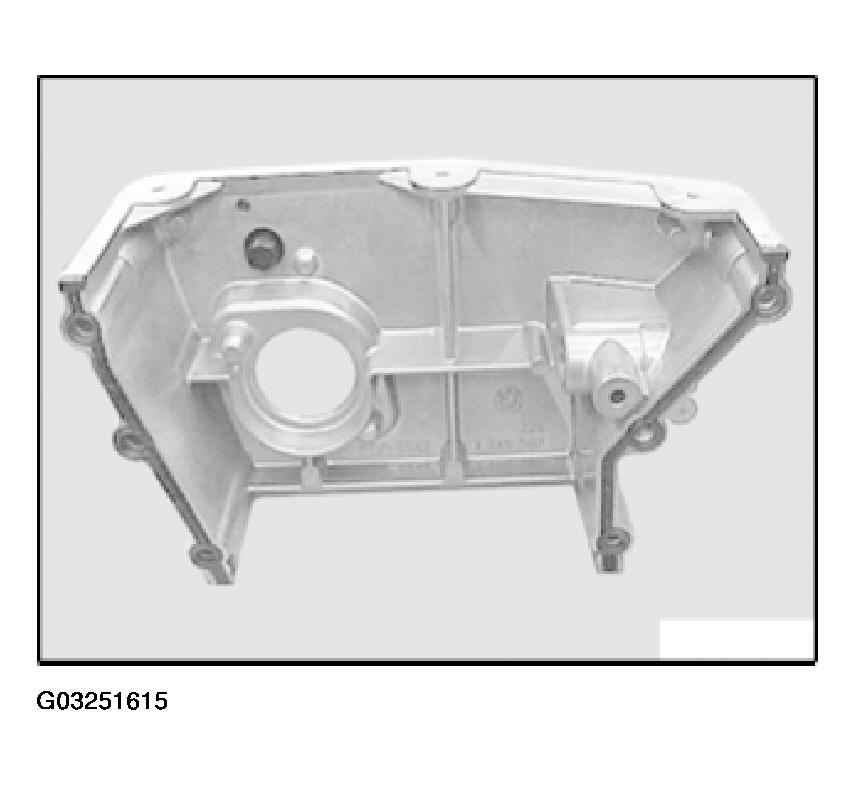

Seat new rubber seal in groove.

Fig 9: Seating New Rubber Seal In Groove
G03251615Courtesy of BMW OF NORTH AMERICA, INC.

Ensure that seals are correctly seated.

Press bow cover inwards and fit timing case cover.

Install screws (1) and fit flush with cylinder head.

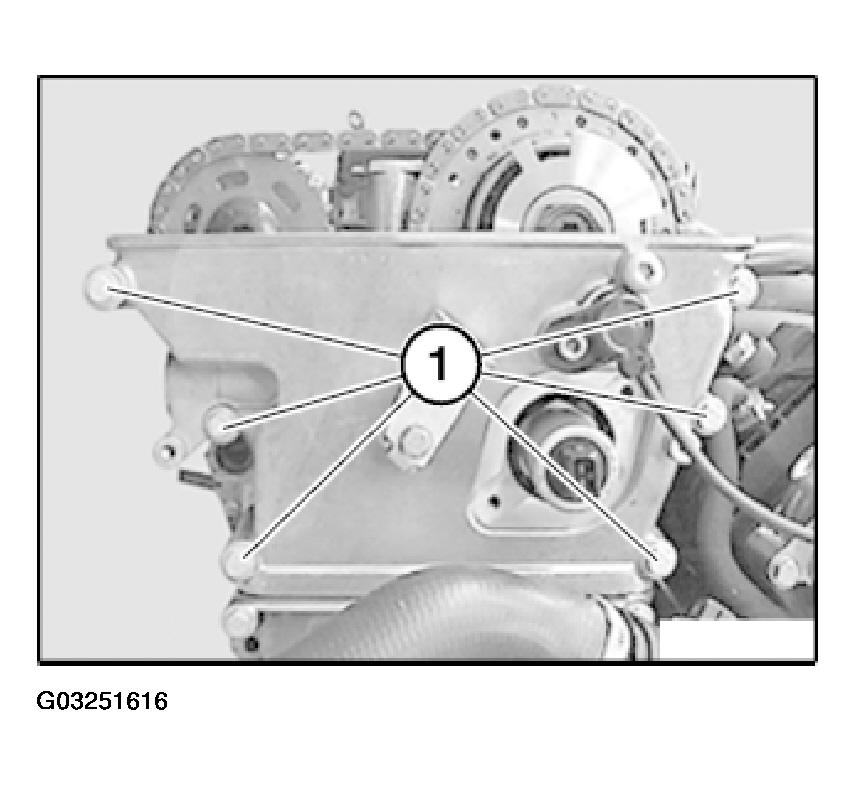

Fig 10: Installing Screws For Fitting Flush With Cylinder Head
G03251616Courtesy of BMW OF NORTH AMERICA, INC.

Remove outer and inner gasket from cylinder head cover.

Insert special tool 11 6 431 from special tool kit 11 6 430 in groove of cover and fit cylinder head cover.

Fig 11: Fitting Cylinder Head Cover Using Special Tool 11 6 431
G03251617Courtesy of BMW OF NORTH AMERICA, INC.

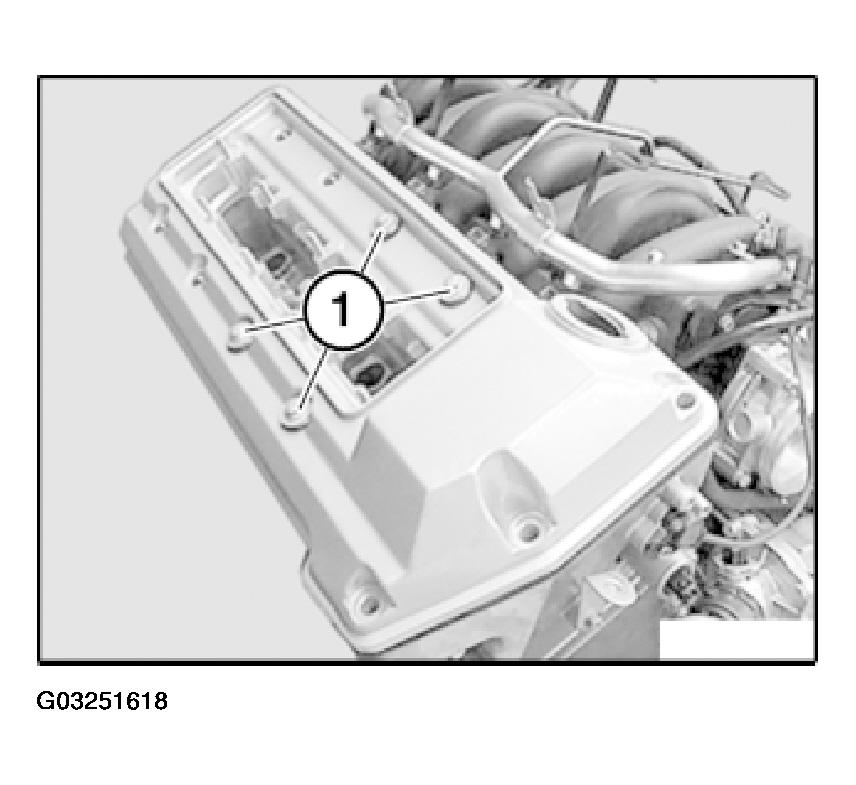

Install cover nuts (1) and tighten down uniformly in 1/2 turn steps.

Tightening Torque,

see 11 12 11AZ in ENGINE - TIGHTENING TORQUES

NOTE: The timing case cover is pressed down onto level of cylinder head by cylinder head cover.
Fig 12: Installing Cover Nuts
G03251618Courtesy of BMW OF NORTH AMERICA, INC.

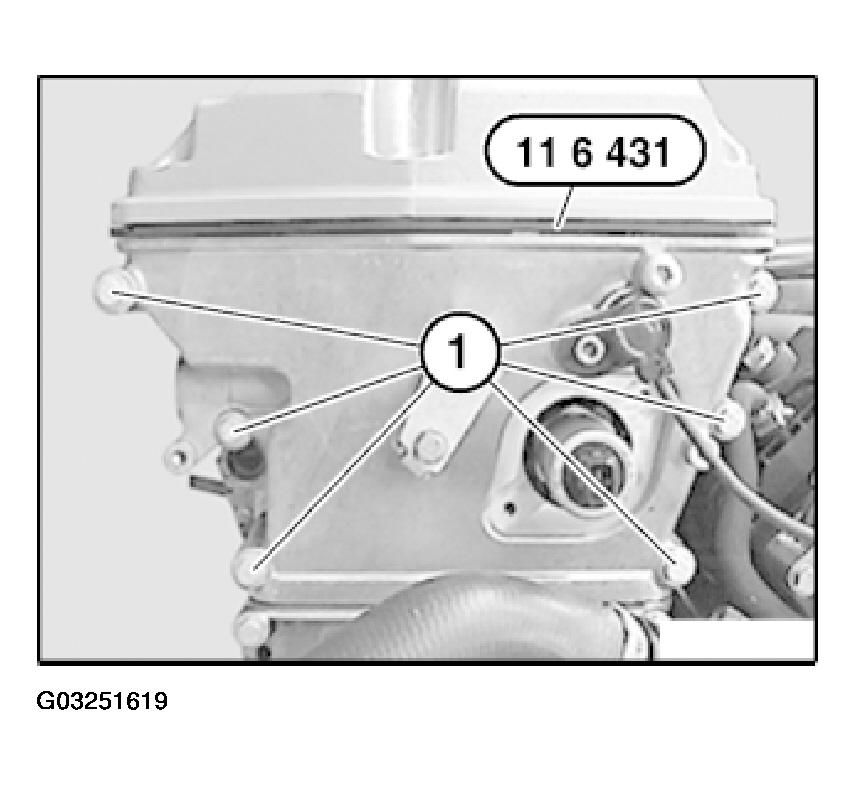

Tighten screws (1) on timing case cover in two passes.

Fig 13: Tightening Screws On Timing Case Cover
G03251619Courtesy of BMW OF NORTH AMERICA, INC.

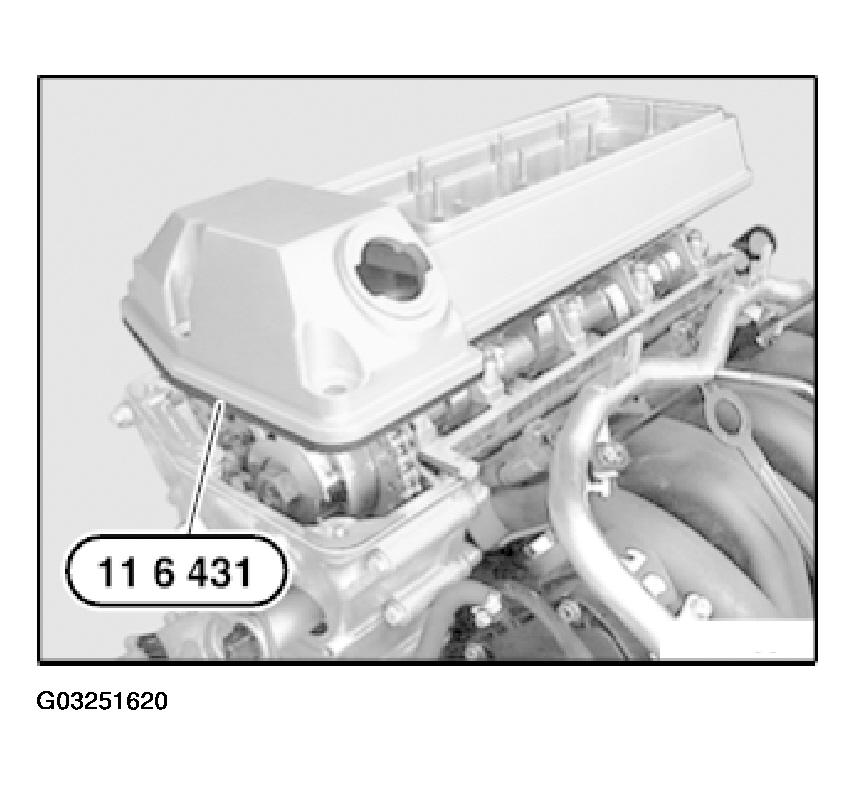

Remove cylinder head cover and remove special tool 11 6 431.

Fig 14: Removing Special Tool 11 6 431 Form Cylinder Head Cover
G03251620Courtesy of BMW OF NORTH AMERICA, INC.

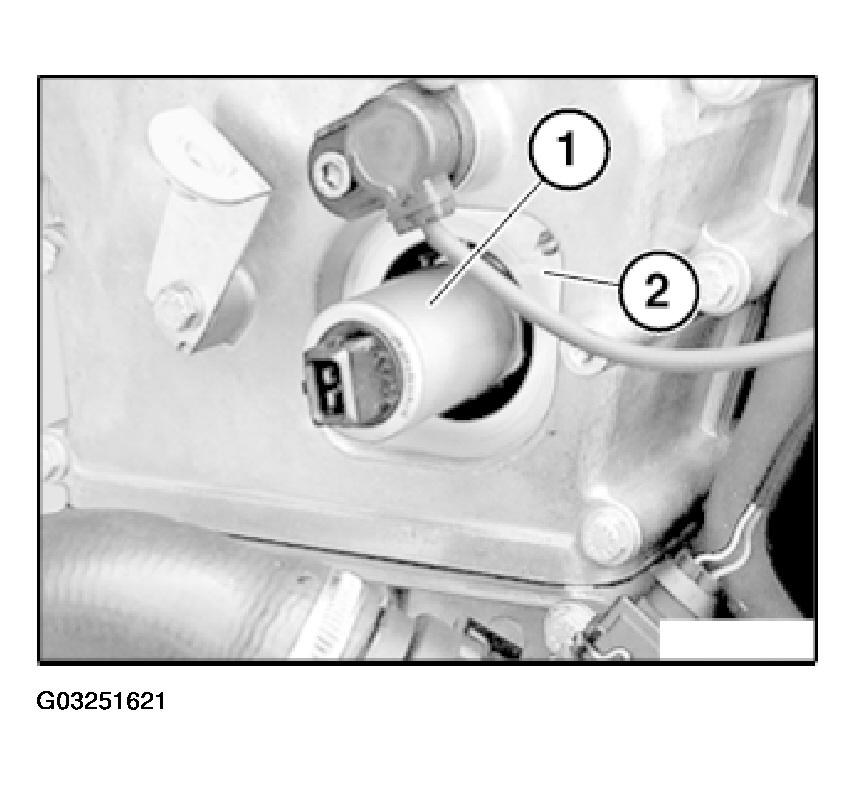

Clean solenoid valve (1) and sealing face (2).

Fig 15: Identifying Solenoid Valve And Sealing Face
G03251621Courtesy of BMW OF NORTH AMERICA, INC.

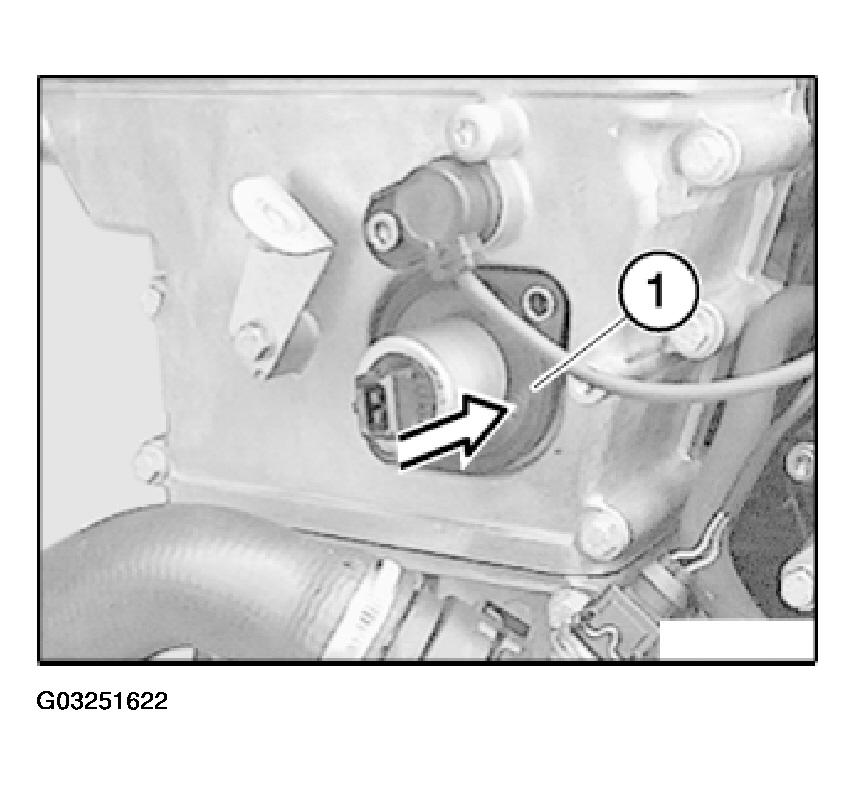

Check sealing flange (1), replace if necessary.

Apply a light coat of oil to inside of sealing flange (1) at sealing face to solenoid valve and carefully install.

Fig 16: Replacing Sealing Flange
G03251622Courtesy of BMW OF NORTH AMERICA, INC.

Insert screws on sealing flange and tighten down.

Assemble engine.

Fig 17: Inserting Screws On Sealing Flange
G03251623Courtesy of BMW OF NORTH AMERICA, INC.
