11 62 065 Removing and installing/replacing right exhaust manifold (M62/N62): Installation

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Replace seals.

Seal beads faces the exhaust manifold.

Coat thread with copper paste.

Replace nuts.

Tightening torque, see 11 62 1AZ in ENGINE - TIGHTENING TORQUES

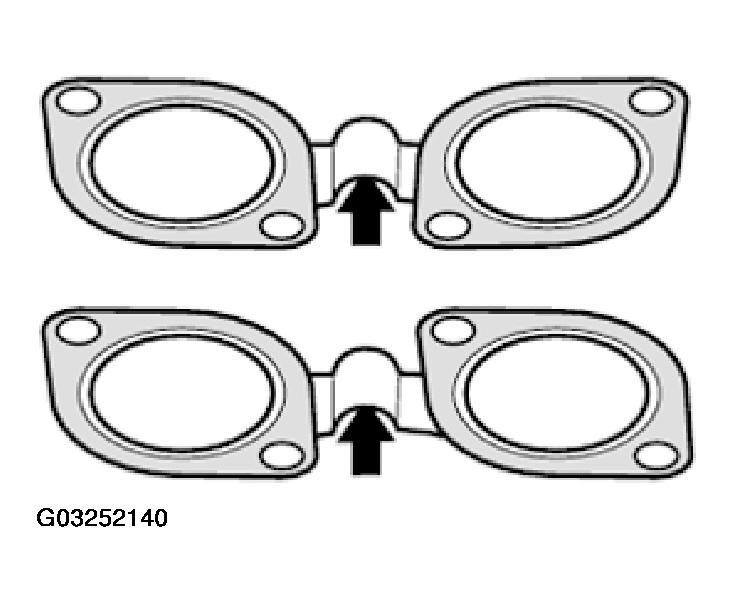

Fig 1: Identifying Exhaust Manifold Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check exhaust system for leaks.
