Pull back special tool 11 5 180 until flywheel is no longer secured in place.

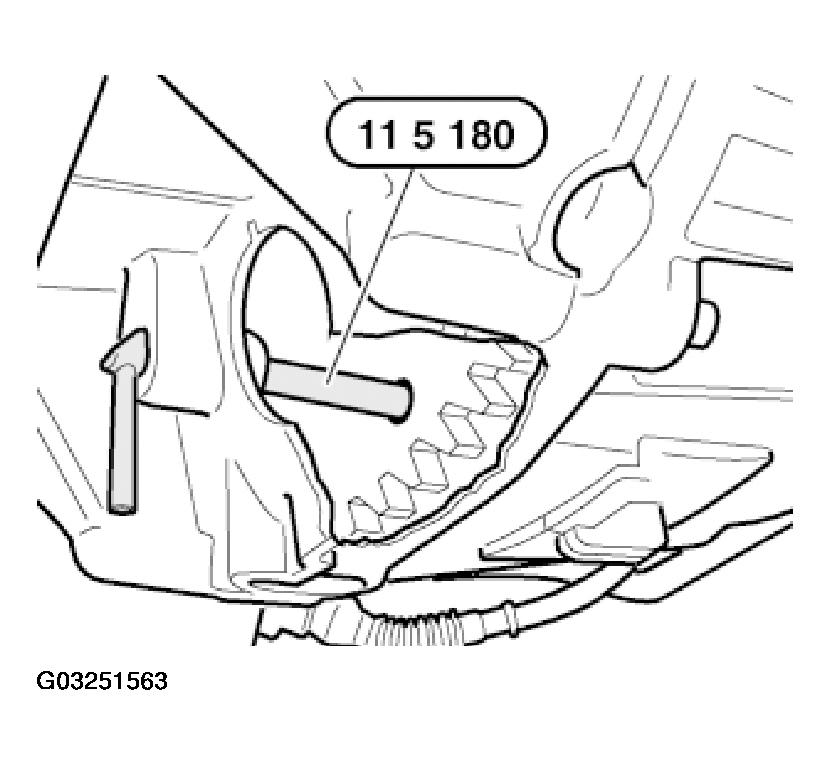

Fig 1: Identifying Special Tool 11 5 180 On Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Lift timing chain and hold under tension.

NOTE: Note marks.

Crank engine at central bolt against direction of rotation to 45° before TDC position.

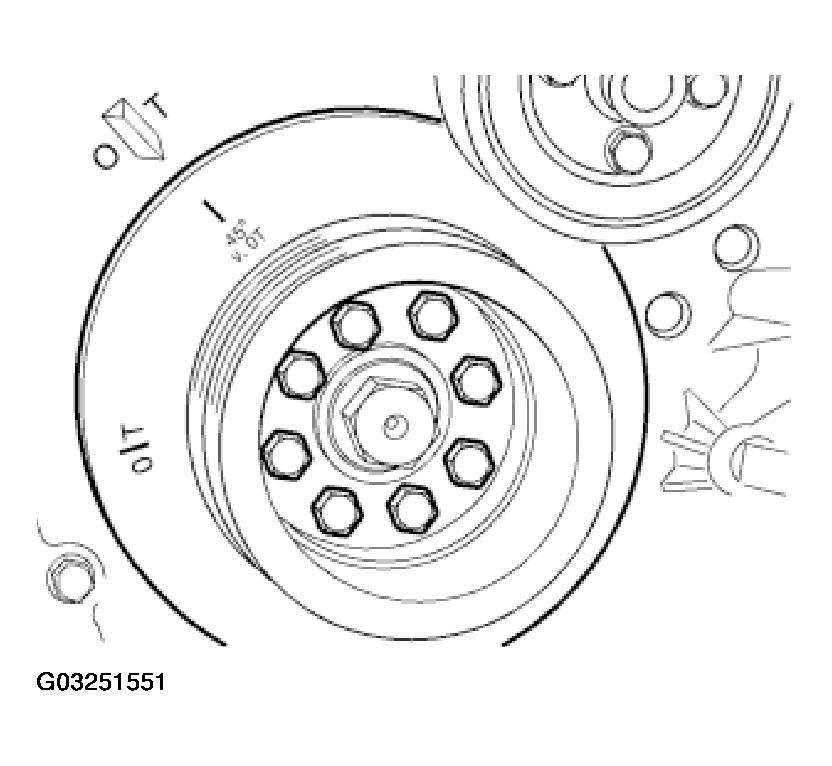

Fig 2: Identifying Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tools 11 2 444 / 443 / 445 / 441.

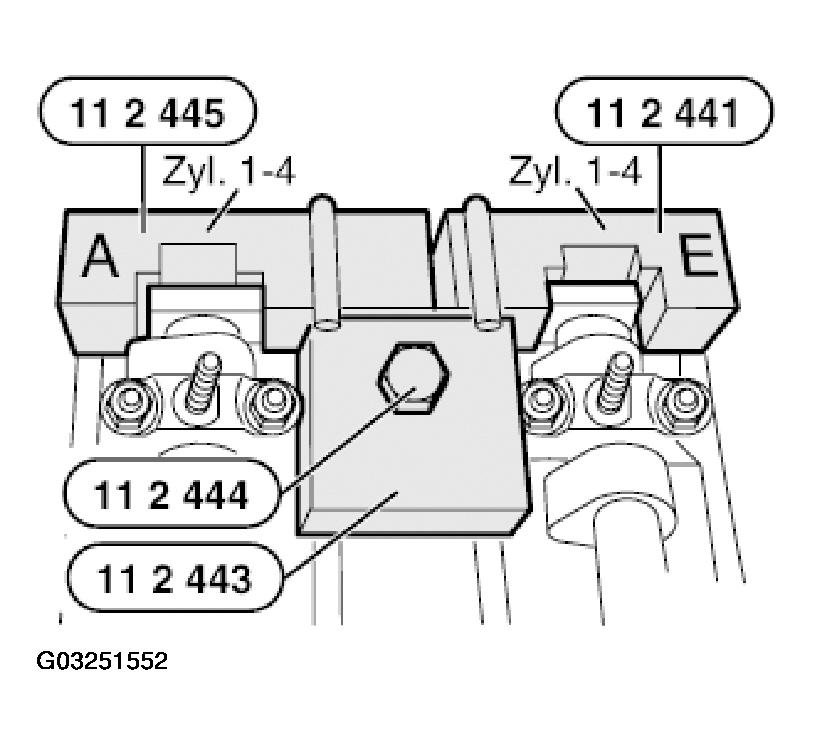

Fig 3: Removing Special Tools 11 2 444 / 443 / 445 / 441

Courtesy of BMW OF NORTH AMERICA, INC.

Release cylinder head bolts in sequence 10 to 1.

Lift off cylinder head.

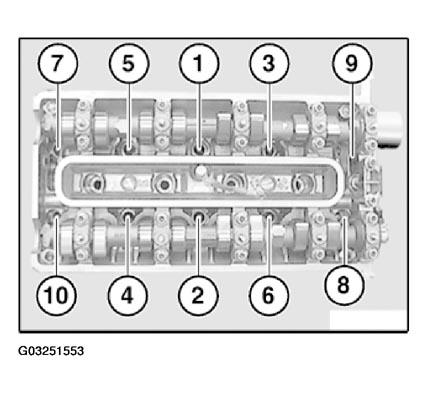

Fig 4: Cylinder Head Bolts Releasing Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Lift timing chain and hold under tension.

Crank engine from 45° before TDC position in direction of rotation up to TDC position.

Secure crankshaft with special tool 11 5 180 in TDC position.

CAUTION: Remove special tool 11 5 180 before starting engine.

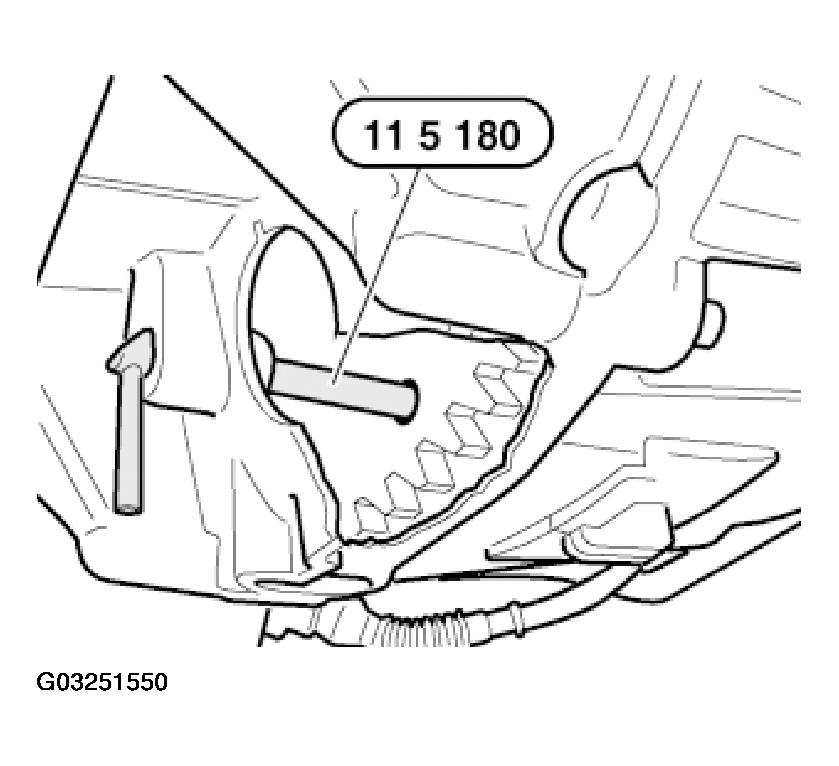

Fig 1: Securing Crankshaft With Special Tool 11 5 180 In TDC Position

Courtesy of BMW OF NORTH AMERICA, INC.

Install right camshaft adjustment unit, refer to 11 36 615 REMOVING AND INSTALLING/REPLACING RIGHT CAMSHAFT ADJUSTMENT UNIT (M62 VANOS FROM 9/98) .

Assemble engine.
