23 4 150 Universal transmission bracket

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 00 2 030

NOTE: Bracket for removing and installing manual and automatic transmissions for MINI.

Transmission: GA6F21WA, GS6-53BG, GS6-55BG

SI number: 01 23 06 (308)

Order number: 23 4 150

Universal transmission bracket

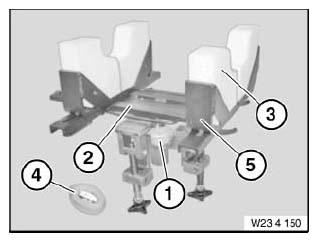

Fig 1: Special Tool (23 4 150)

Consisting of:

1 = 23 4 151 Joint

2 = 23 4 152 Base frame

3 = 23 4 153 Foam inserts (1 set = 4 pcs.)

4 = 23 4 154 Tensioning strap

5 = 23 4 155 Locator for foam material insert
