23 4 030 Fixture
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
In conjunction with: 23 4 040 Grease gun
NOTE:
For removing and installing guide bearing (pilot bearing) in transmission input shaft.
Transmission: GS6-53DZ
SI number: 01 05 06 (248)
Order number: 23 4 030
Fixture

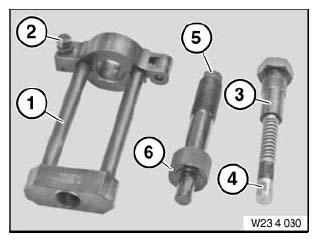

Consisting of:
1 = 23 4 031 Bridge
2 = 23 4 032 M10x120 screws with nuts (2 x)
3 = 23 4 033 Grease cartridge
4 = 23 4 034 Brass adapter
5 = 23 4 035 Pressure spindle
6 = 23 4 036 Thrust member
