23 1 300 Fixture

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Minimum set: Mechanical tools

In conjunction with: 23 2 150

NOTE: For fitting output flange on all manual and automatic transmissions, for installing deep groove ball bearing on transmission output shafts and for fitting input flange on all rear axle differentials

Series: E36, E36/2, E36/3, E36/5, E36/7, E36/C, E38, E39, E46, E52, E53, E60, E61, E63, E64, E65, E66, E67, E81, E82, E83, E85, E86, E87, E88, E90, E91, E92, E93

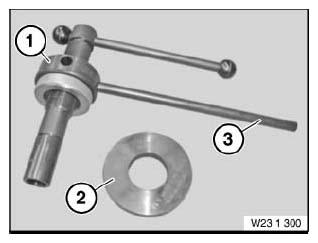

Fig 1: Special Tool (23 1 300)

Transmission: Rear diff. 188kom, rear diff. 220kom, rear diff. 225kom, rear diff. Type G, rear diff. Type K, rear diff. Type M, S5D 200G, S5D 250G

Storage location: C17

Order number: 23 1 300

Fixture

Consisting of:

1 = 23 1 301 Adapter

2 = 23 1 302 Support disc

NOTE: For pressing drive flange onto rear differential

In conjunction with: 33 1 341, 23 1 300

3 = 23 1 303 Mandrel
