21 2 180 Locating ring
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
In conjunction with: 21 2 170
NOTE:
For locating and resetting adjustment ring of SAC clutch on all 6- and 8 cylinder engines.
Series: E34, E36, E38, E39, E46, E52, E53, E60, E61, E81, E83, E85, E86, E88, E90, E91, E93
Storage location: A44
SI number: 1 16 00 (622)
Order number: 21 2 180

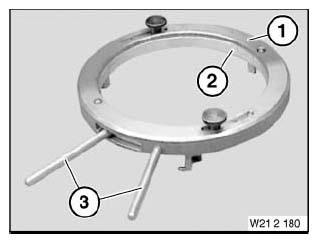

Locating ring
Consisting of:
1 = 21 2 181 Outer ring
2 = 21 2 182 Inner ring
3 = 21 2 183 Pin set
