21 2 170 Tensioning tool
WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.
Minimum set: Mechanical tools
In conjunction with: 21 2 180, 21 2 190, 21 2 141, 21 2 142
NOTE:
For resetting adjustment ring and installing self adjusting clutch (SAC) on flywheel without tension.
Series: E34, E36, E38, E39, E46, E52, E53, E60, E61, E81, E83, E85, E86, E87, E88, E90, E91, E93
SI number: 1 16 00 (622)
Order number: 21 2 170

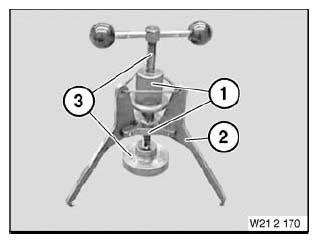

Tensioning tool
Consisting of:
1 = 21 2 171 Star with adjusting spindle
2 = 21 2 172 Clamping claw (1 x)
3 = 21 2 173 Pressure spindle with disk
