11 9 950 Fixture

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 11 5 280

NOTE: For removing and installing valve cotters.

Engine: S65

SI number: 01 21 07 (410)

Order number: 11 9 950

Fixture

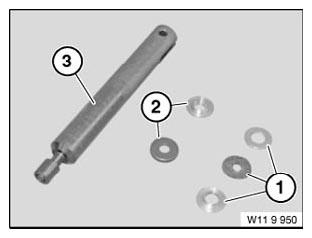

Fig 1: Special Tool (11 9 950)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 9 951 Adapter kit - removal tool

In conjunction with: 11 5 281

2 = 11 9 952 Adapter - installation tool

In conjunction with: 11 5 282

3 = 11 9 953 Installation aid for valve cotters
