11 5 280 Fixture

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 11 9 000

NOTE: For removing and installing valve cotters.

Engine: S65, S85

SI number: 1 02 05 (173)

Order number: 11 5 280

Fixture

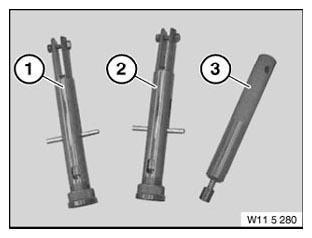

Fig 1: Special Tool (11 5 280)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 5 281 Removal tool

2 = 11 5 282 Installation tool

3 = 11 5 283 Installation aid
