11 5 260 Engine support plate

WARNING: This page is about a different car, the 2010 BMW M3, 2009 BMW M3, and 2008 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: 00 2 300

NOTE: For accommodating engine on assembly stand.

Engine: S65, S85

SI number: 1 02 05 (173)

Order number: 11 5 260

Engine support plate

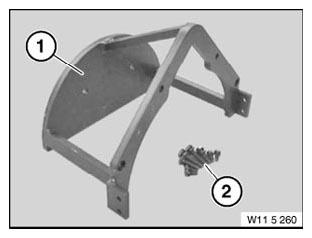

Fig 1: Special Tool (11 5 260)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 11 5 261 Basic body

2 = 11 5 262 Set of screws (10 x)
