Solenoids & Solenoid Valves

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1998 BMW 750iL, 1998 BMW 740iL, 1998 BMW 740i, 1997 BMW 750iL, and 1997 BMW 740iL. However, it is still accessible from the selected car via links, so may be relevant.
SOLENOIDS & SOLENOID VALVES LOCATION

Component Location
Driver's Seat Lumbar Support Valve Block (Y193) Driver's seatback. See Figure.

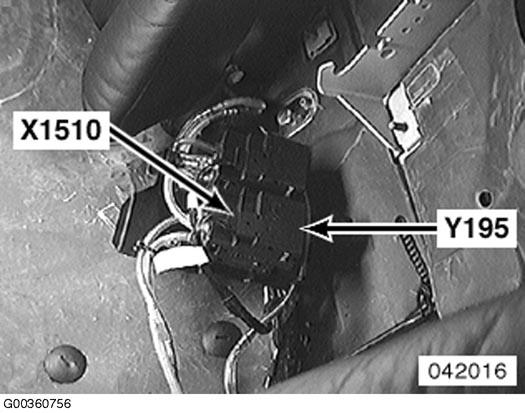

Left Rear Seat Lumbar Support Valve Block (Y195) Below rear seat. See Figure.

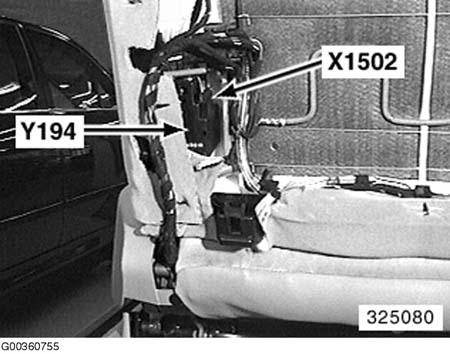

Passenger's Seat Lumbar Support Valve Block (Y194) Passenger's seatback. See Figure.

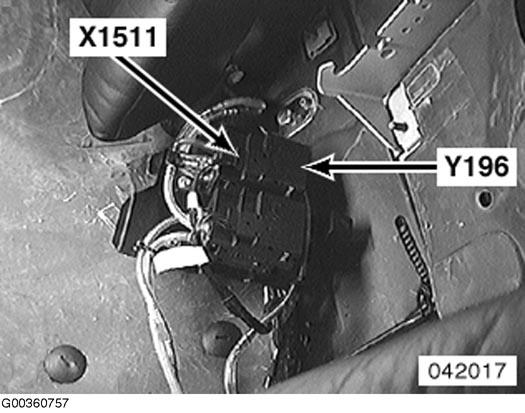

Right Rear Seat Lumbar Support Valve Block (Y196) Below rear seat. See Figure.
