Sending Units & Sensors
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1998 BMW 750iL, 1998 BMW 740iL, 1998 BMW 740i, 1997 BMW 750iL, and 1997 BMW 740iL. However, it is still accessible from the selected car via links, so may be relevant.
SENDING UNITS & SENSORS LOCATION
| Component | Location |
|---|---|

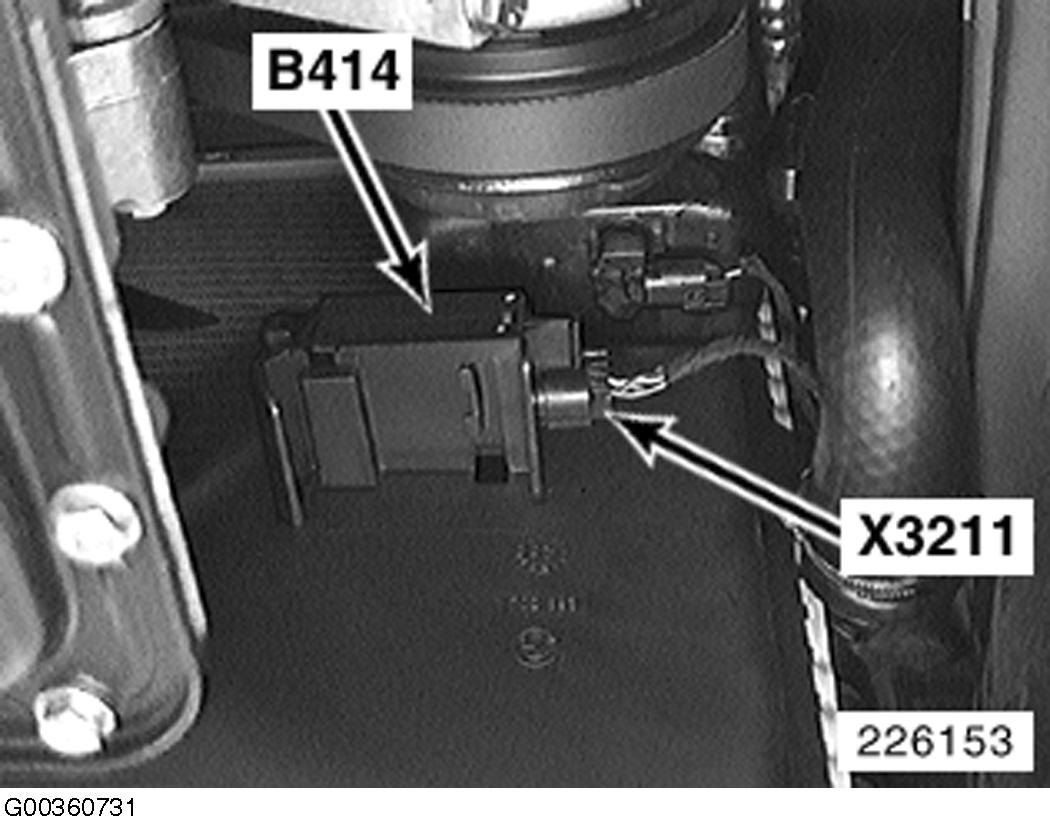

| Automatic Air Recirculation Sensor (B414) | Right front of engine compartment. See Figure. |

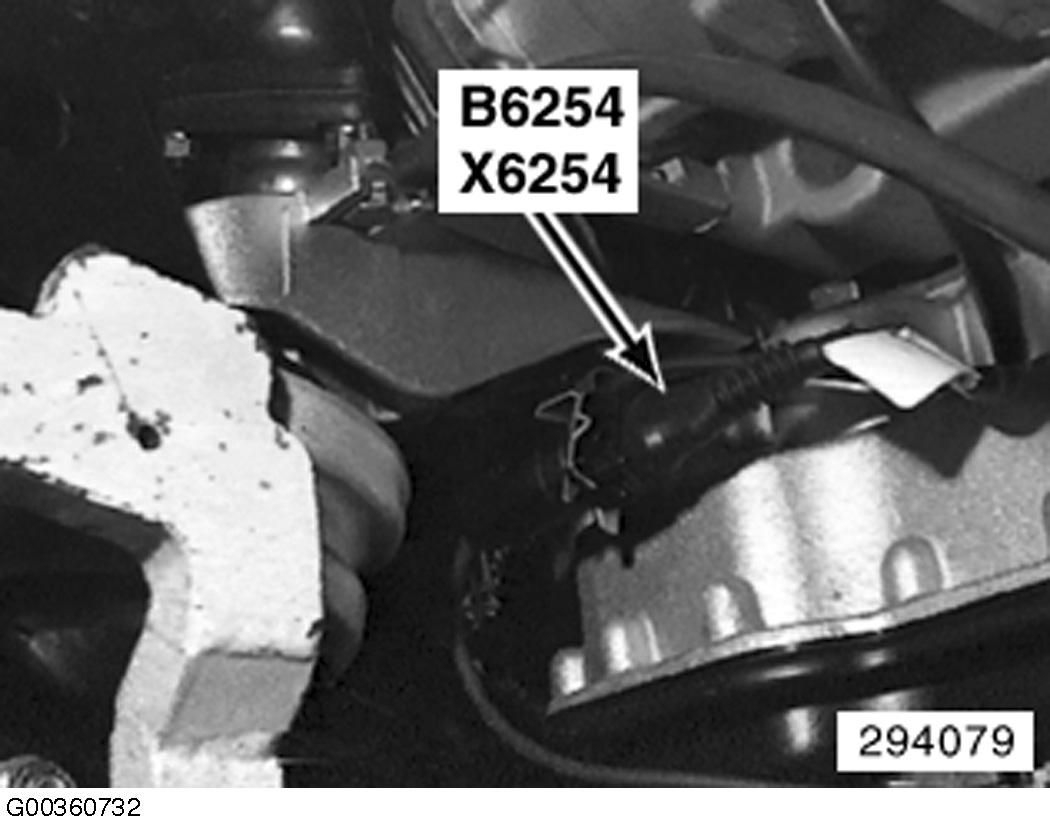

| Oil Level Sensor (B6254) | Lower left side of engine. See Figure. |

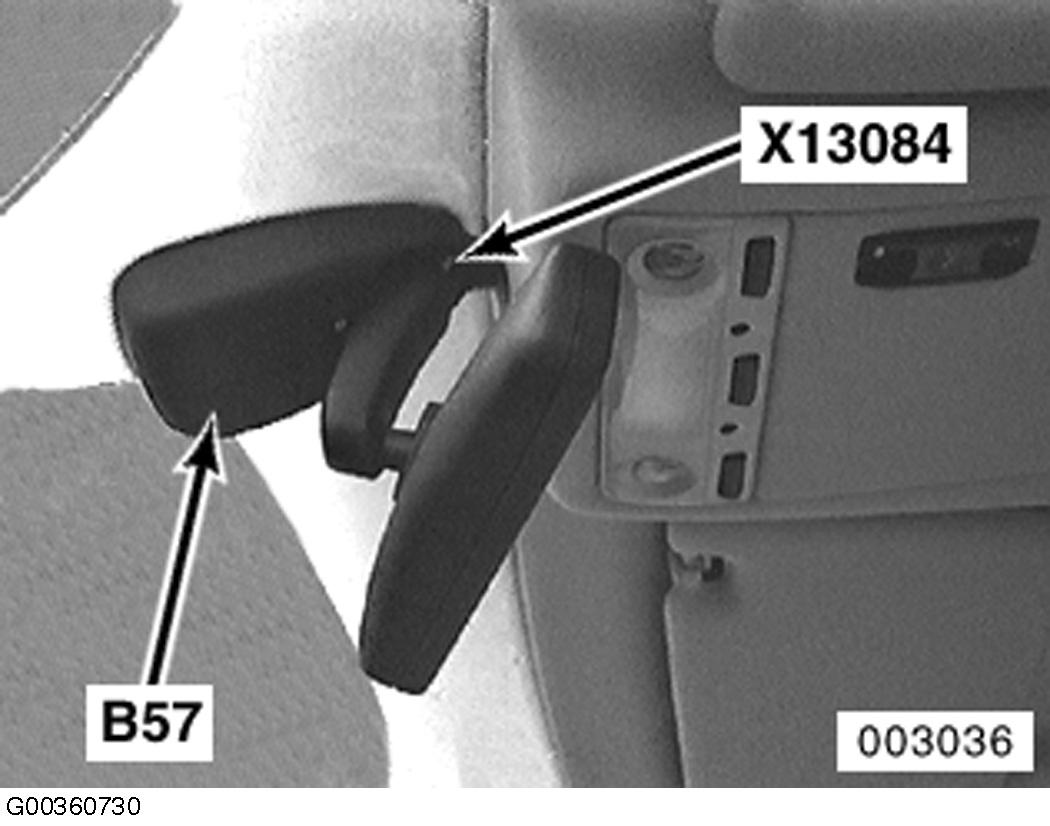

| Rain Sensor (B57) | Near rear view mirror. See Figure. |

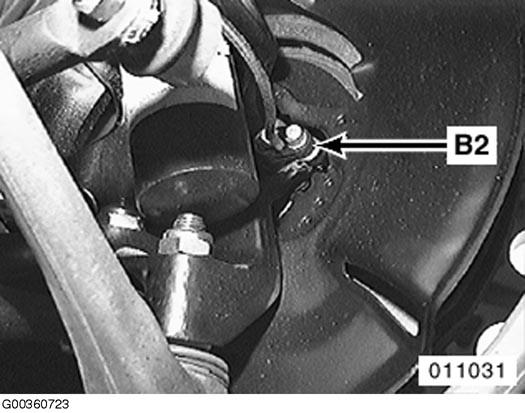

| Speed Sensor (Left Front) (B2) | Left front wheel hub. See Figure. |

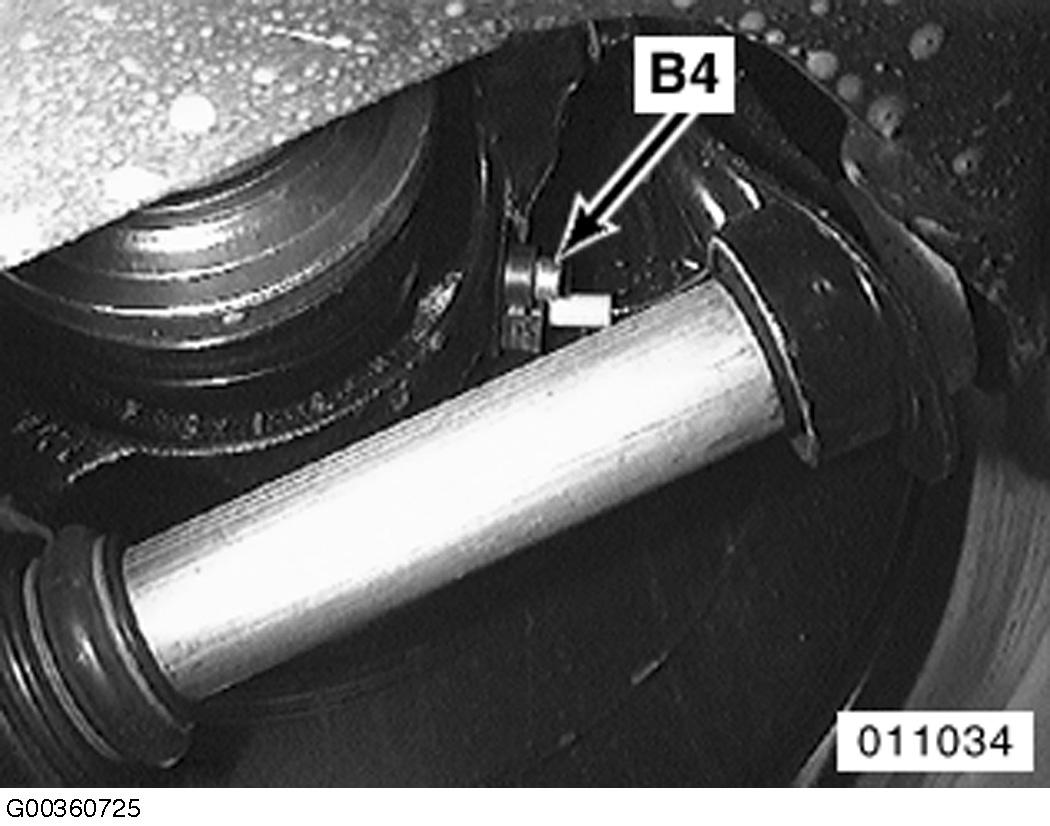

| Speed Sensor (Left Rear) (B4) | Left rear wheel hub. See Figure. |

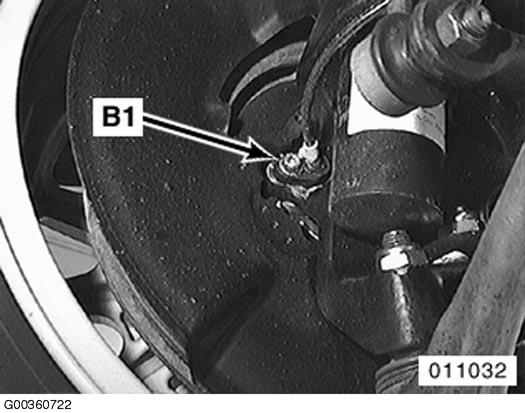

| Speed Sensor (Right Front) (B1) | Right front wheel hub. See Figure. |

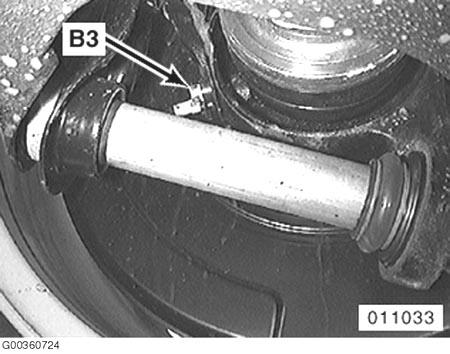

| Speed Sensor (Right Rear) (B3) | Right rear wheel hub. See Figure. |

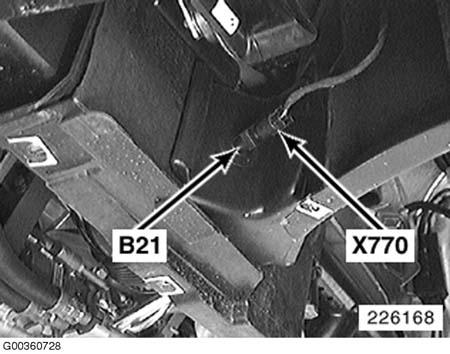

| Temperature Sensor (B21) | Left front ventilation duct. See Figure. |

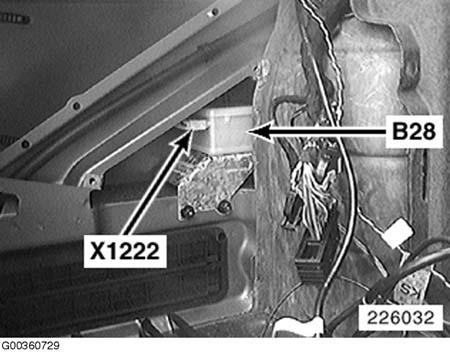

| Tilt Sensor (B28) | Left rear of luggage compartment. See Figure. |
