BUZZERS, RELAYS & TIMERS LOCATION
| Component | Location |
|---|---|

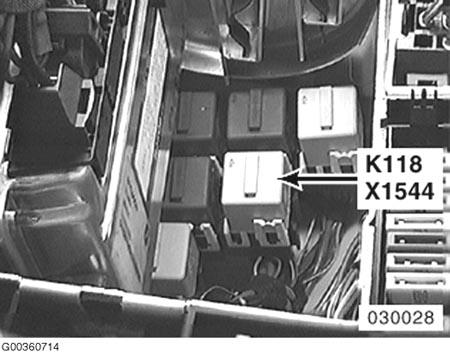

| Air Injection Pump Relay (K118) (5.4L) | Right rear of engine compartment. See Figure. |

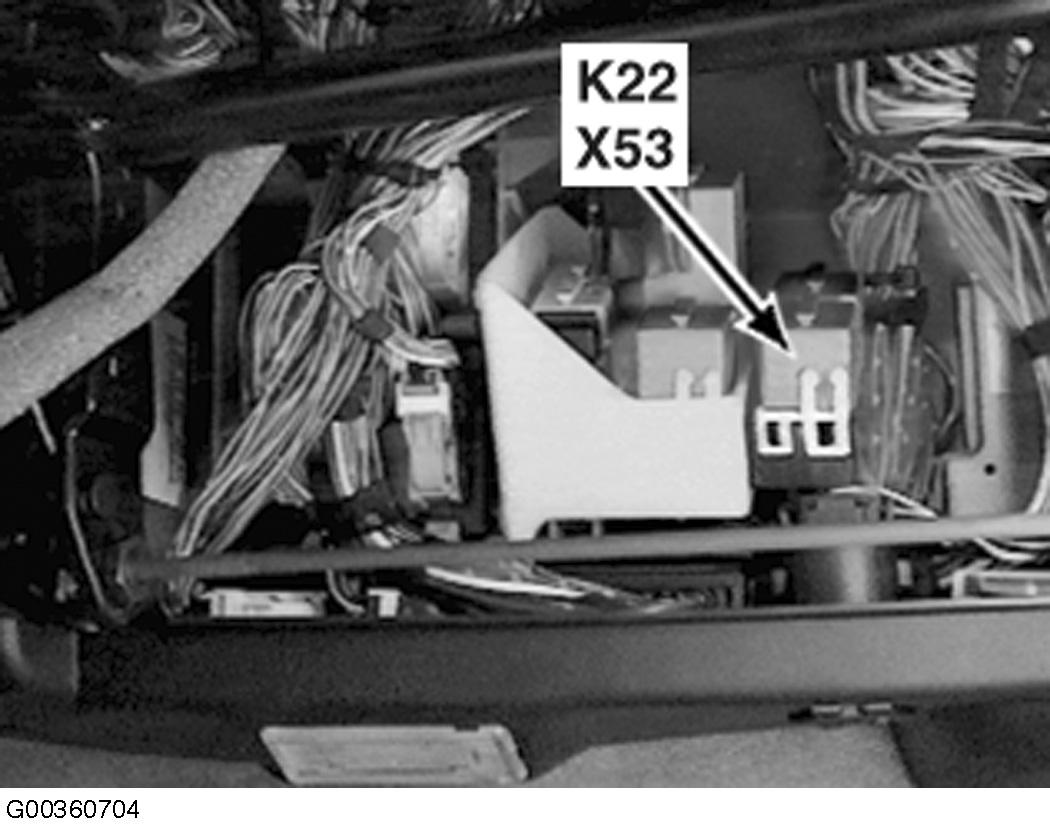

| Auxiliary Fan High Speed Relay (K22) | Behind glove box. See Figure. |

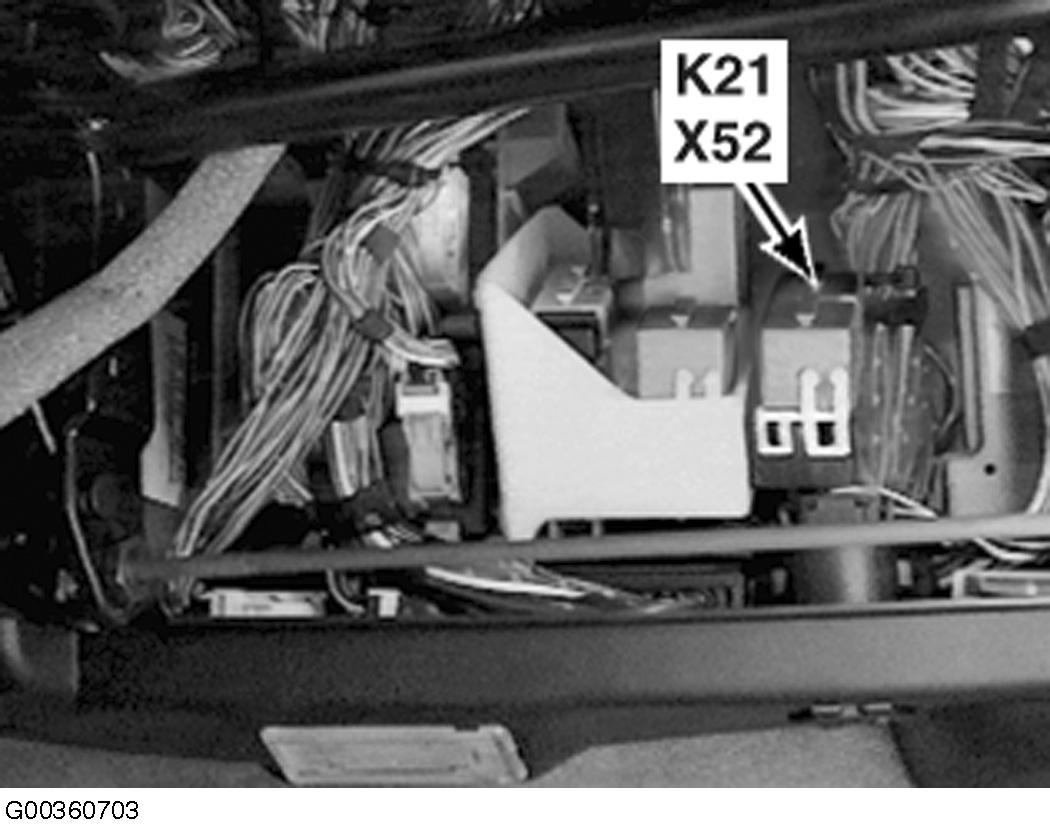

| Auxiliary Fan Normal Speed Relay (K21) | Behind glove box. See Figure. |

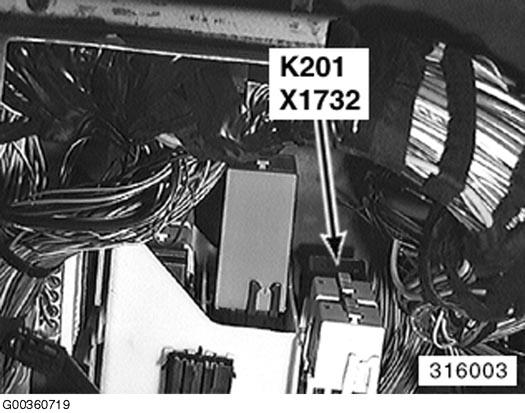

| Auxiliary Fan Relay, Stage 3 (K201) | Behind glove box. See Figure. |

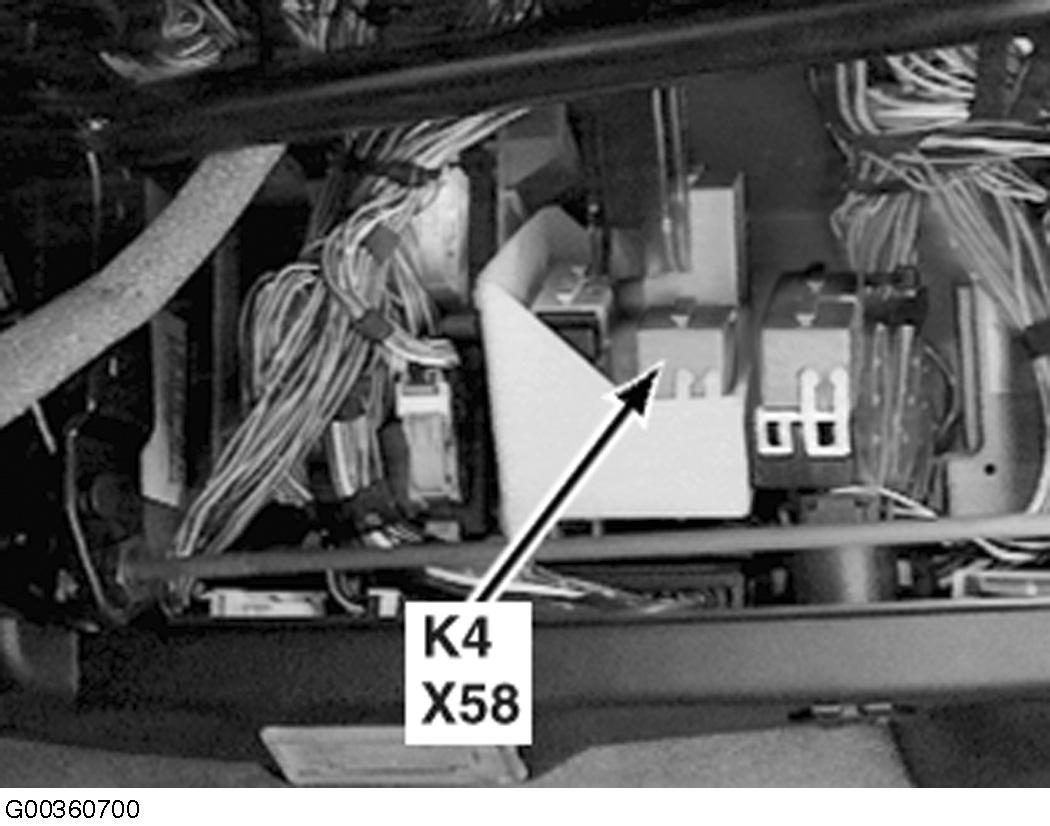

| Blower Relay (K4) | Behind glove box. See Figure. |

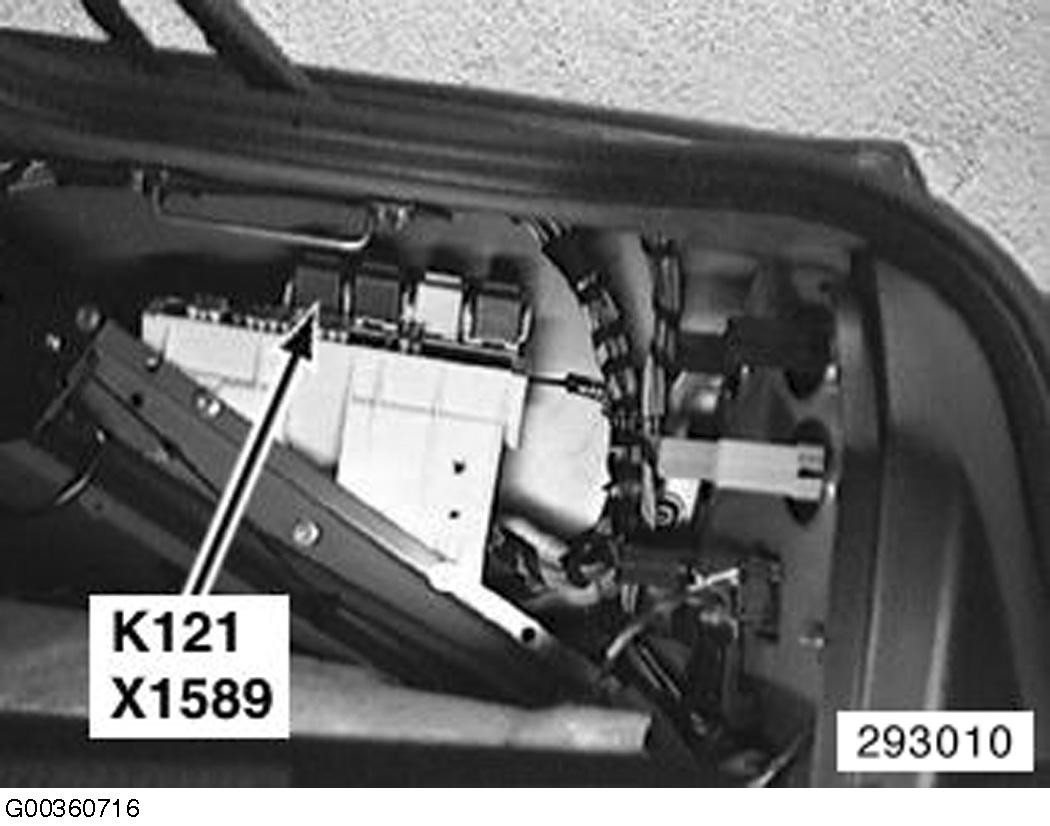

| Central Locking Fuel Tank Access Flap Relay (K121) | Right rear of luggage compartment. See Figure. |

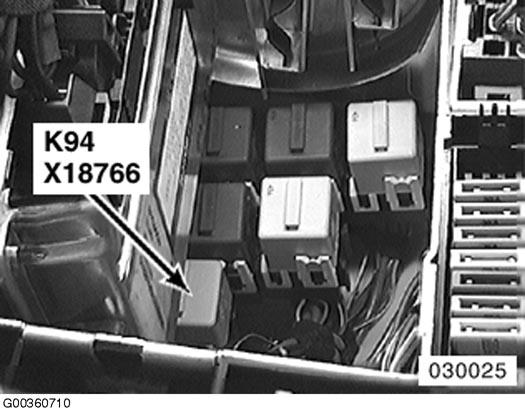

| Engine Control Relay (K94) (Except 5.4L) | Right rear of engine compartment. See Figure. |

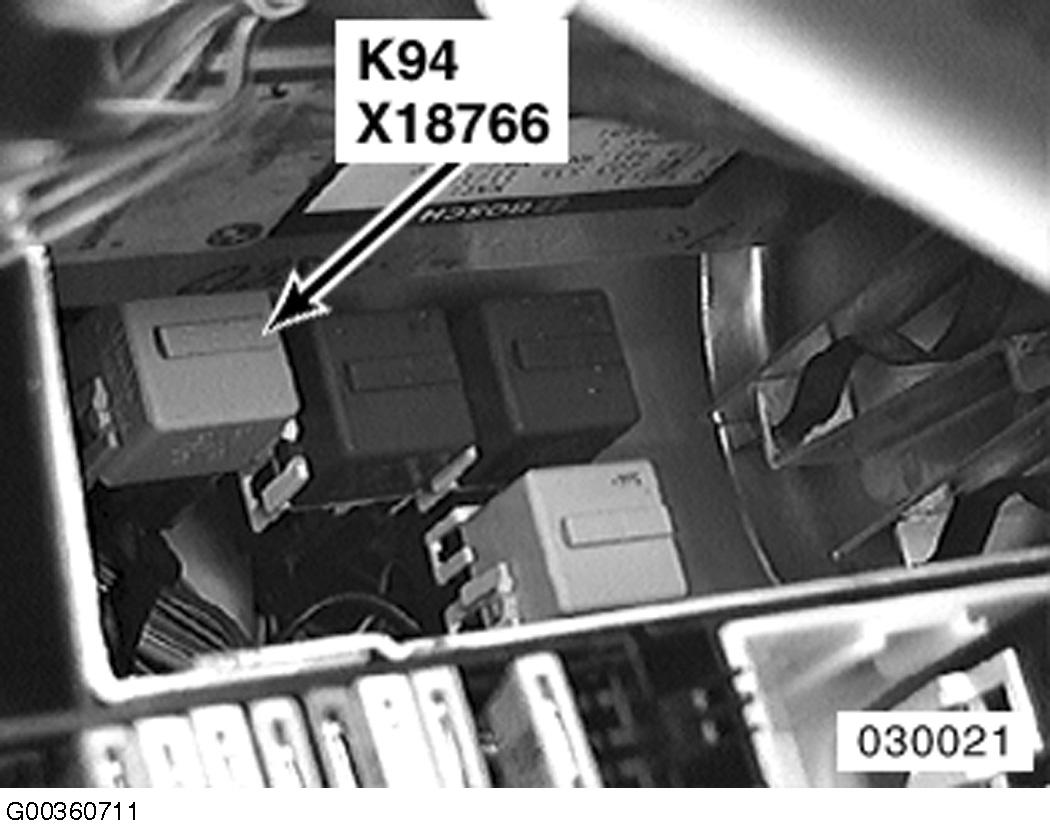

| Engine Control Relay (K94) (5.4L) | Right rear of engine compartment. See Figure. |

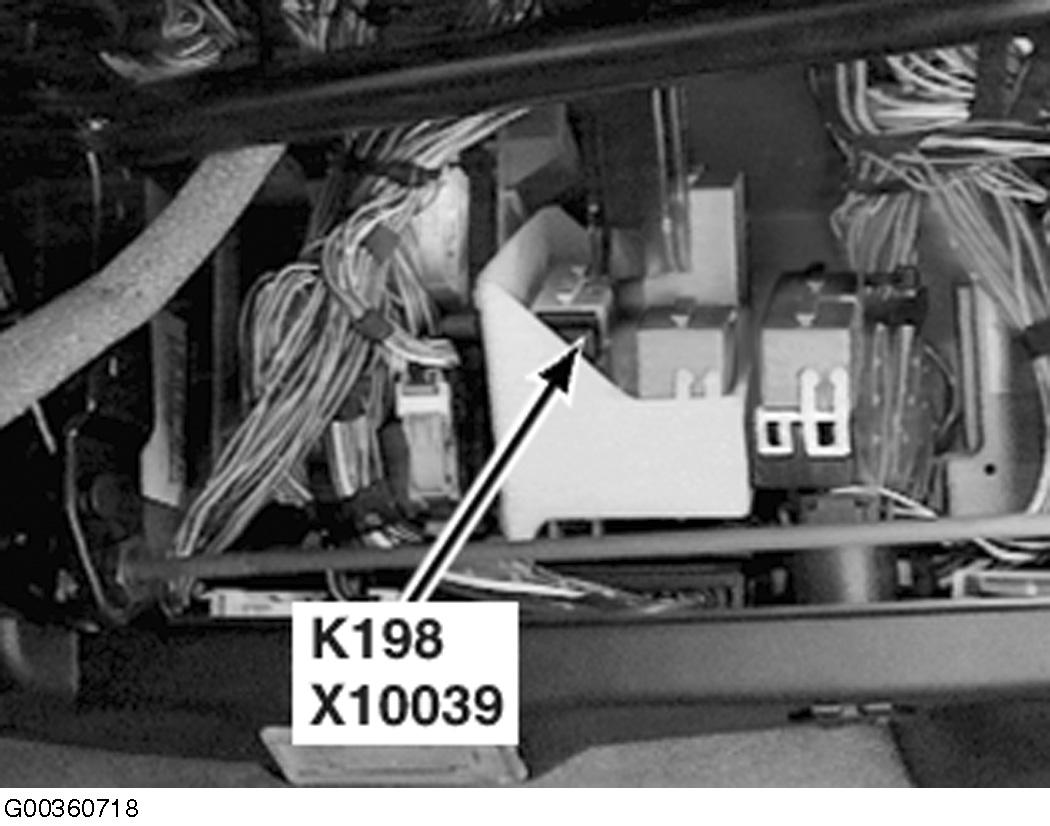

| Front Defogger/Washer Jets Relay (K198) | Behind glove box. See Figure. |

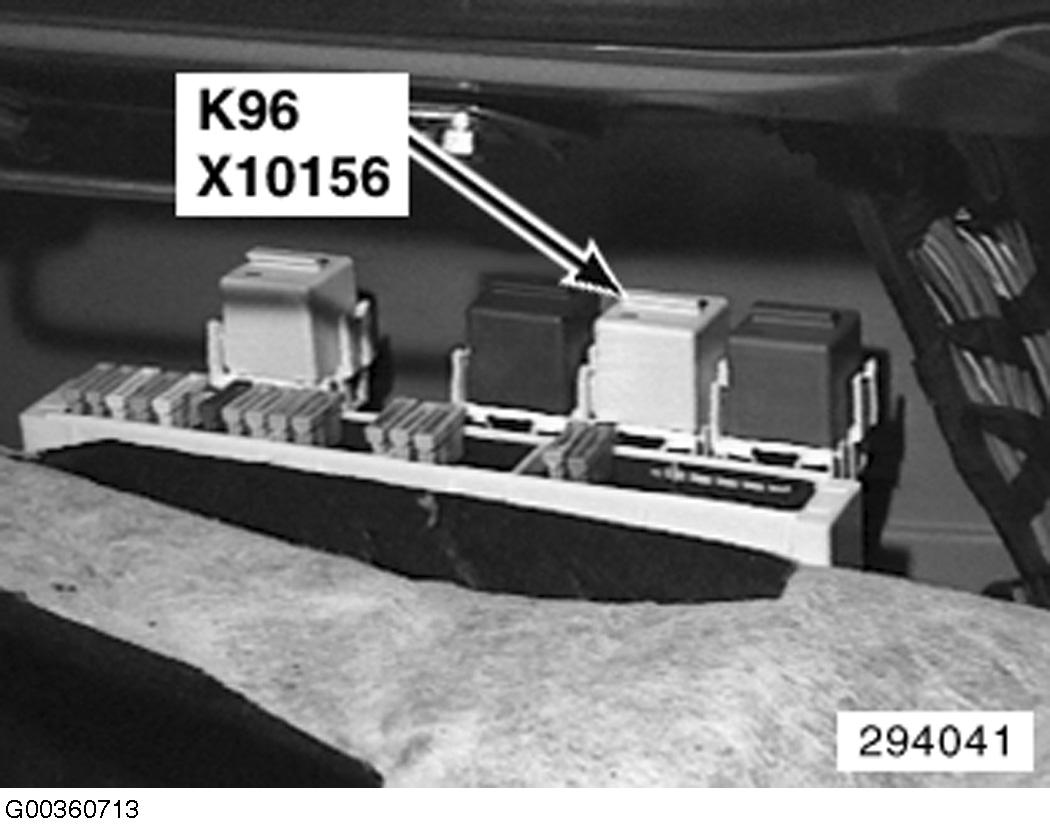

| Fuel Pump Relay (K96) | Right rear of luggage compartment. See Figure. |

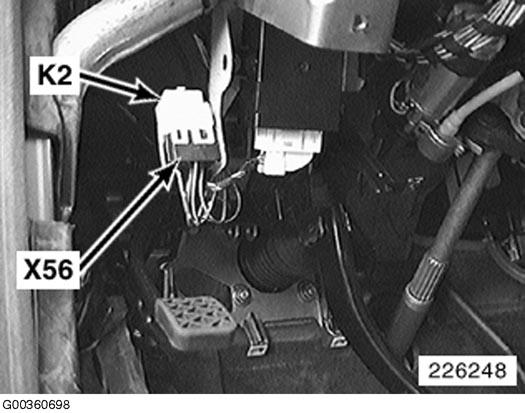

| Horn Relay (K2) | Left side of dash. See Figure. |

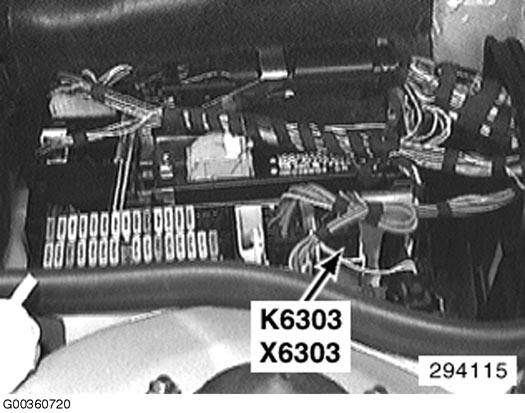

| Oxygen Sensor Relay (K6303) (Except (5.4L) | Right rear of engine compartment. See Figure. |

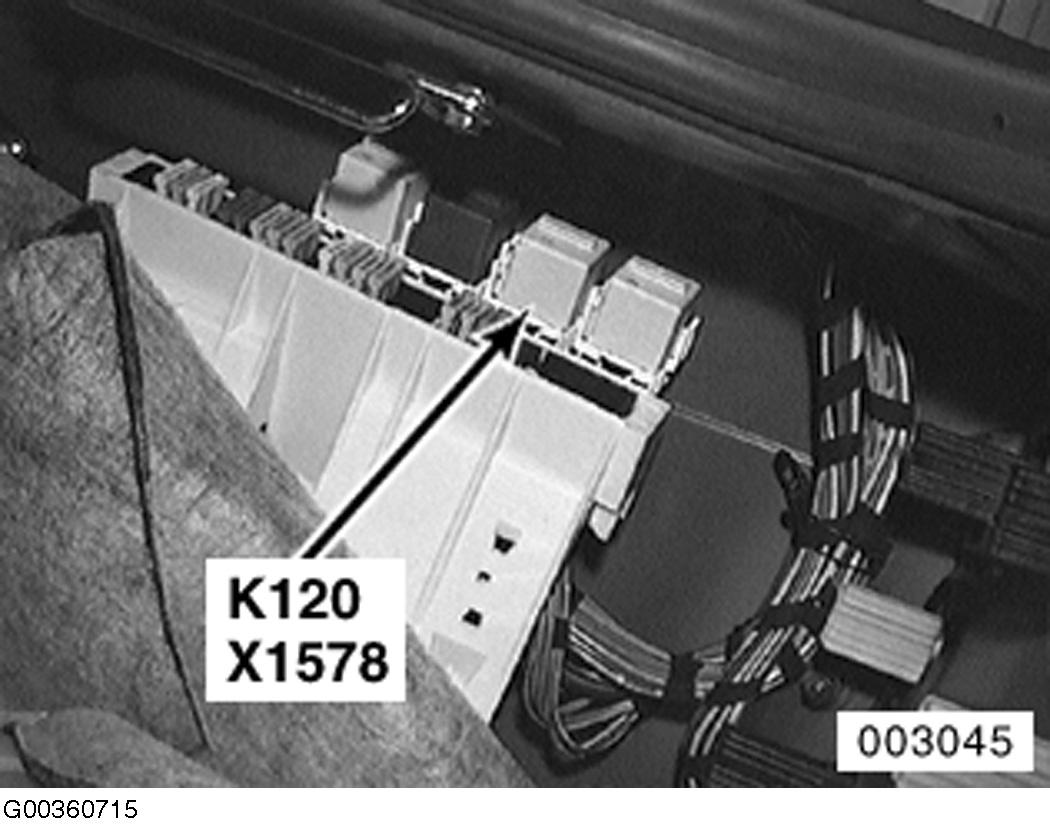

| Rear Compartment Blower Relay (K120) | Right rear of luggage compartment. See Figure. |

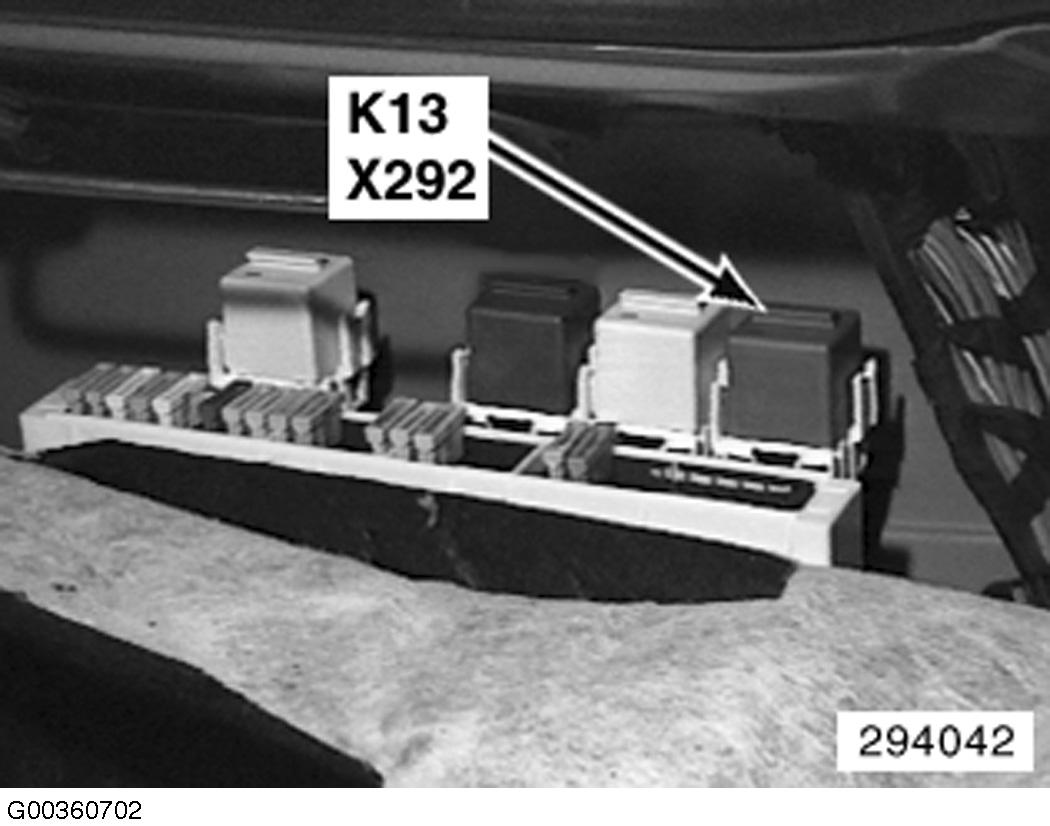

| Rear Defogger Relay (K13) | Right rear of luggage compartment. See Figure. |

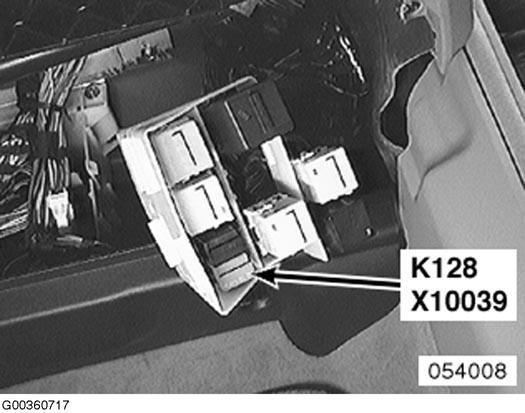

| Relay (Rear Lid Motor) (K128) | Behind glove box. See Figure. |

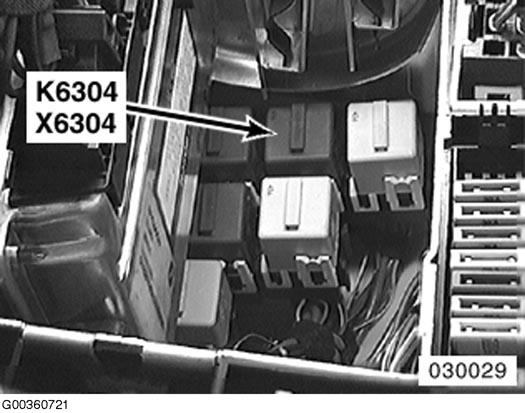

| Secondary Air Injection Pump Relay (K6304) | Right rear of engine compartment. See Figure. |

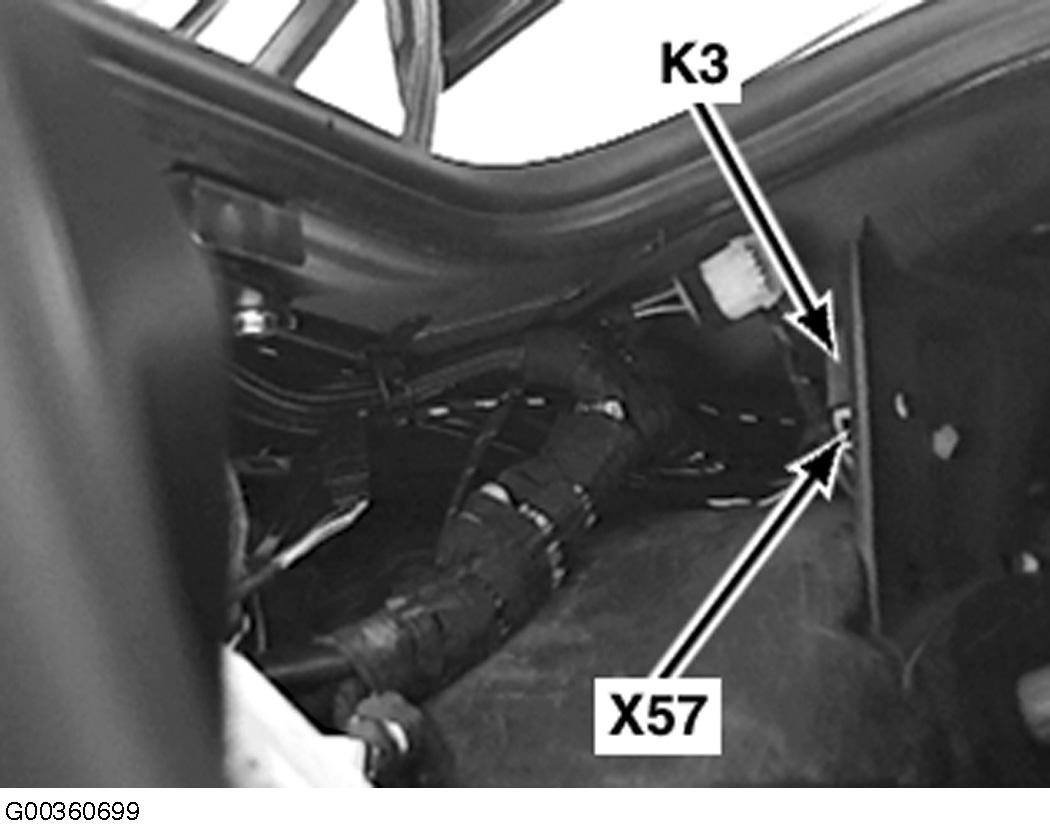

| Unloader Relay (Terminal R) (K3) | Left side of luggage compartment. See Figure. |

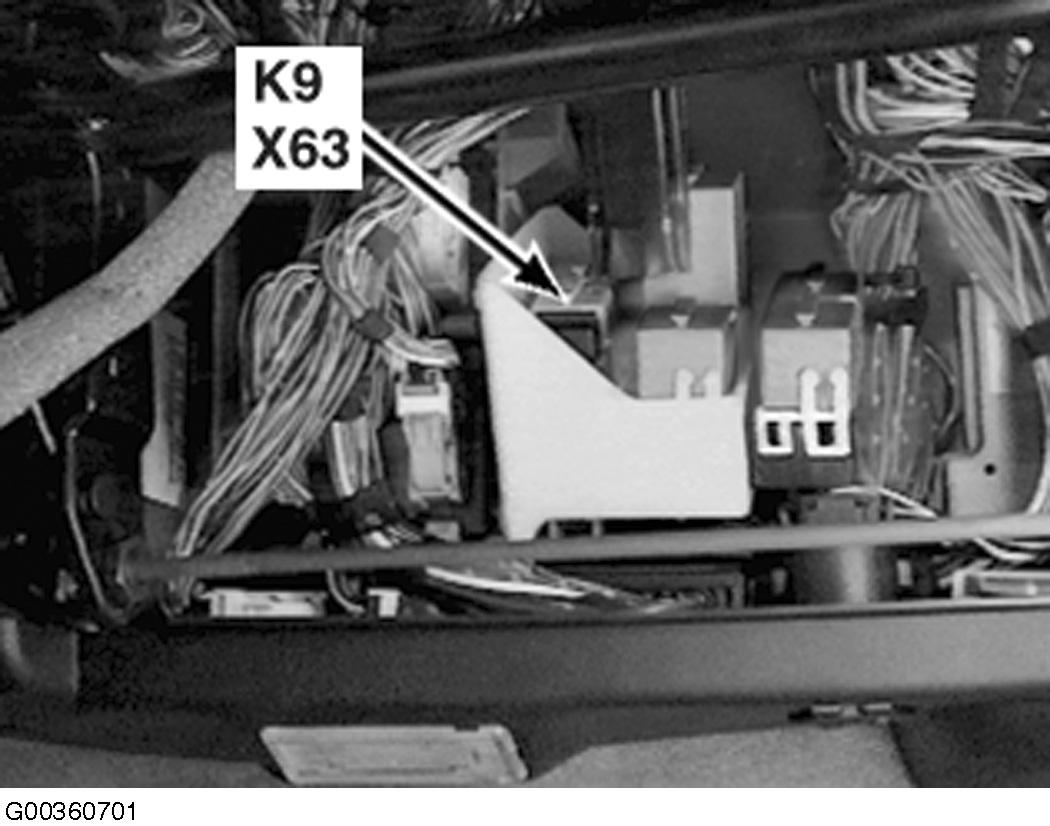

| Unloader Relay (Terminal 15) (K9) | Behind glove box. See Figure. |

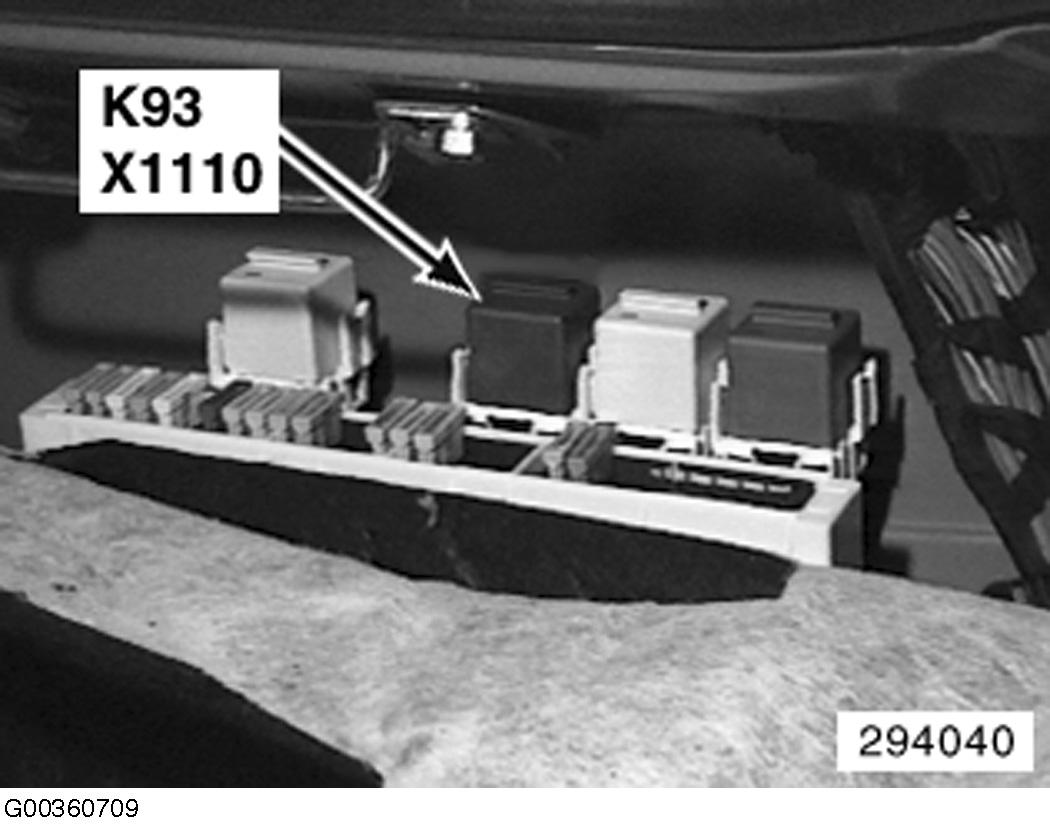

| Unloader Relay (Terminal 15) (K93) | Right rear of luggage compartment. See Figure. |

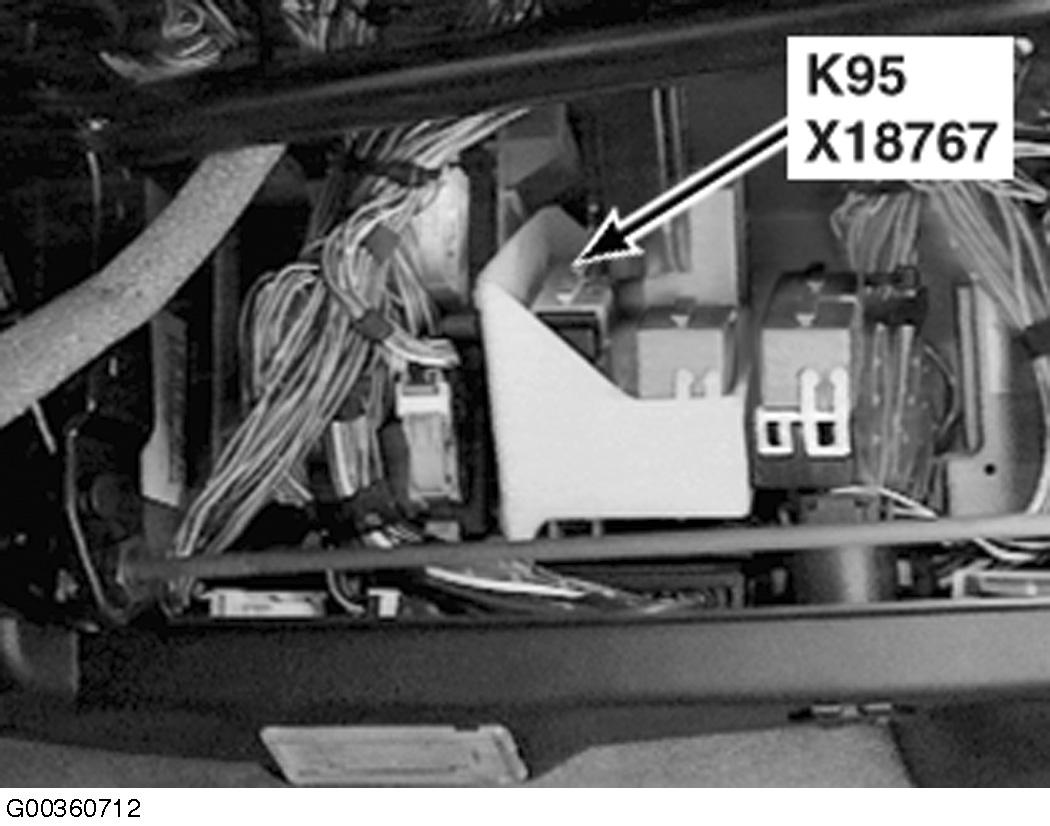

| Valve Relay (K95) | Behind glove box. See Figure. |

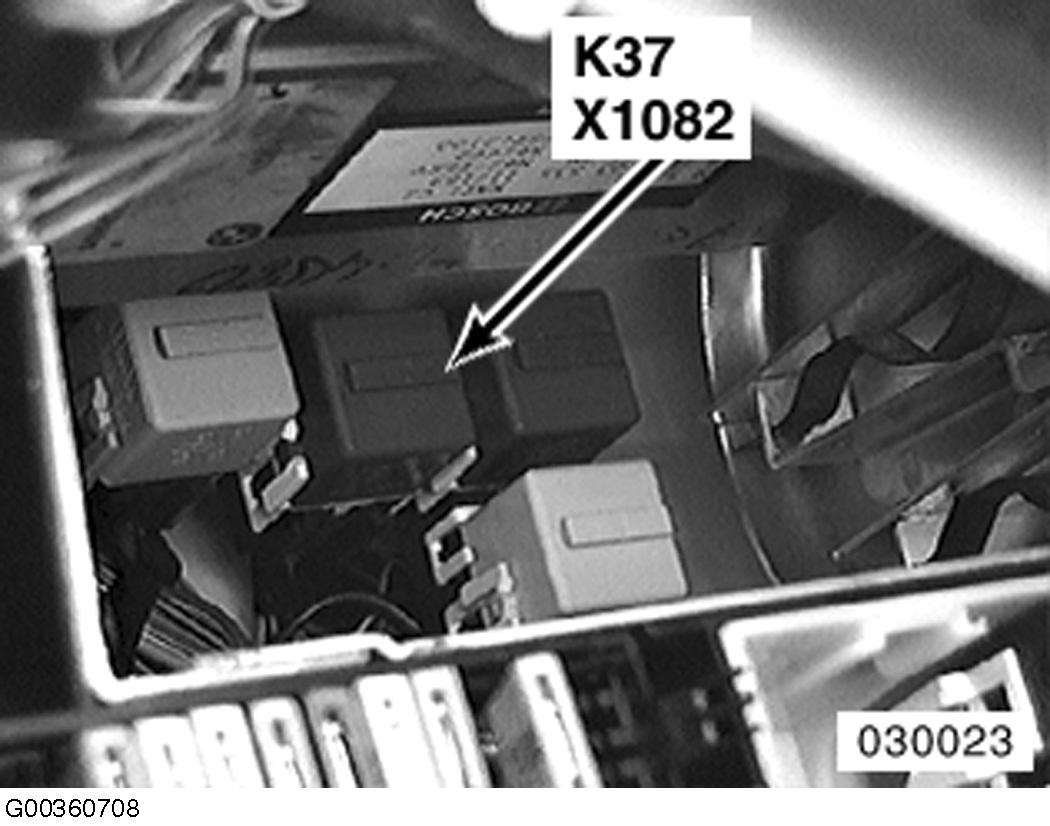

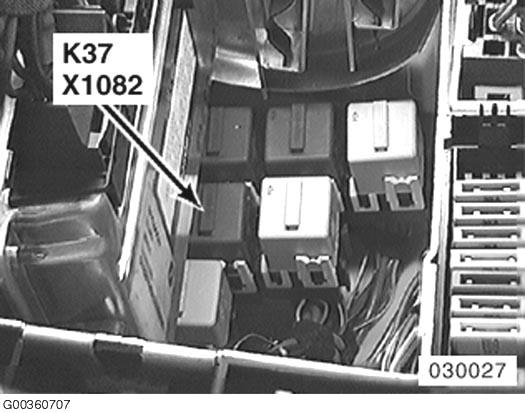

| Wiper Relay II (K37) (Except 5.4L) | Right rear of engine compartment. See Figure. |
| Wiper Relay II (K37) (5.4L) | Right rear of engine compartment. See Figure. |

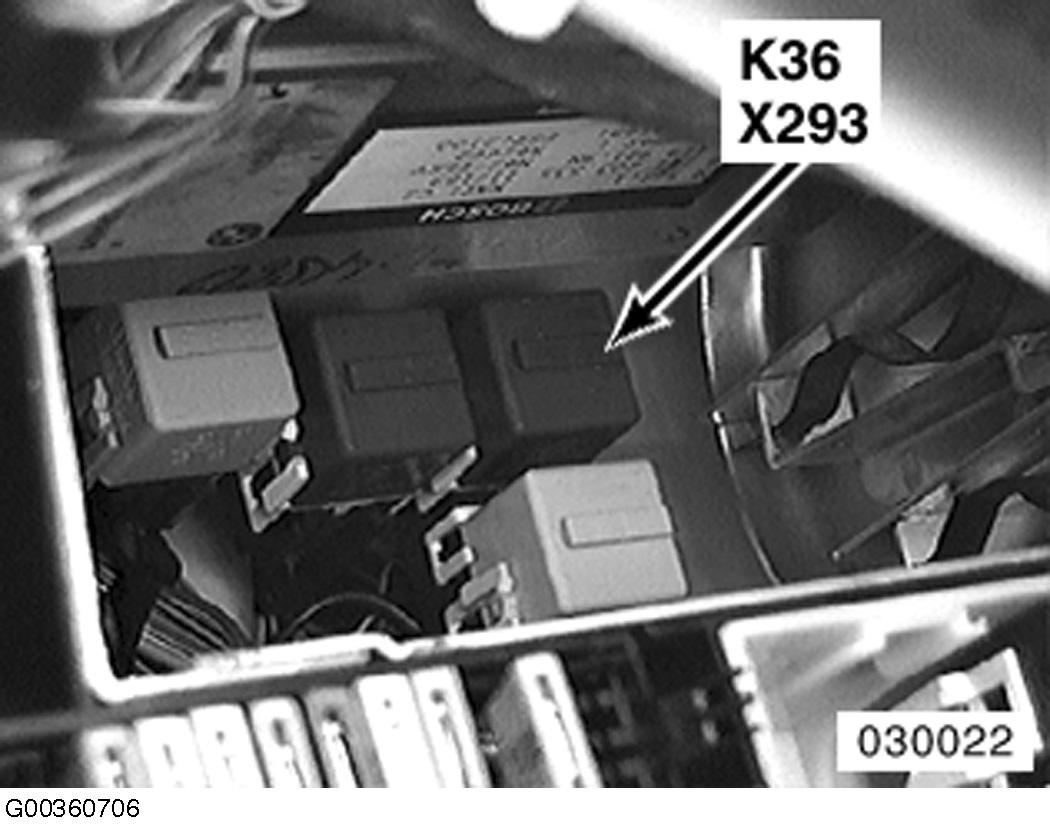

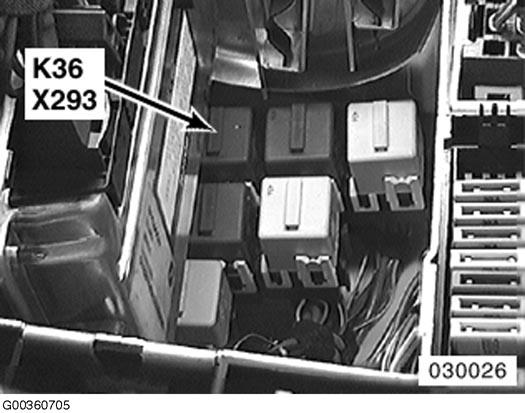

| Wiper Relay I (K36) (Except 5.4L) | Right rear of engine compartment. See Figure. |
| Wiper Relay I (K36) (5.4L) | Right rear of engine compartment. See Figure. |
