67 66 010 Removing and installing/replacing lumbar support drive mechanism on front seat, left or right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear panel on front seat backrest , see 52 14 198 REMOVING AND INSTALLING OR REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST .

Unhook cover (1) in areas (2).

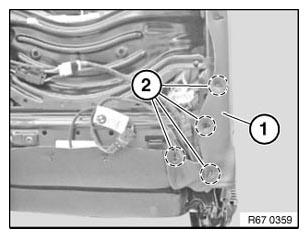

Fig 1: Identifying Unhooking Areas

G06214010

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Release clips (2).

Feed out drive unit for lumbar support (3) in upward direction.

Installation:

If necessary, replace faulty clips (2).

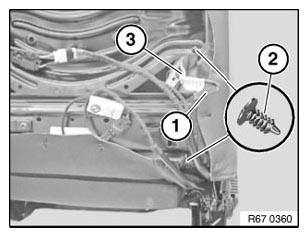

Fig 2: Identifying Plug Connection, Clips And Drive Unit For Lumbar Support

G06214011

Courtesy of BMW OF NORTH AMERICA, INC.

Release cable tie (1) from jacket (2).

Feed out drive unit for lumbar support out of jacket (2).

Detach hose (3).

NOTE: Gently heat hose (3) if stuck.

Installation:

Make sure hose (3) is laid without kinks.

Fig 3: Identifying Heat Hose And Cable Tie Of Jacket

G06214012

Courtesy of BMW OF NORTH AMERICA, INC.
