67 31 540 Removing and installing/replacing drive unit for head restraint adjustment (comfort seat)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove both rear panels on front seat backrest , see 52 14 198 REMOVING AND INSTALLING OR REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST .
Disconnect plug connection (1).
Release screw (2).
Tightening torque 67 31 4AZ , see 67 31 DRIVE, SEAT ADJUSTMENT .
Pull shaft (1) in direction of arrow out of shaft receptacle (2).
Installation:
Make sure shaft (1) is correctly seated in receptacle (2).
Release retaining ring (3).
Feed out drive unit for backrest head adjustment (4) and remove.
Removal and installation only:

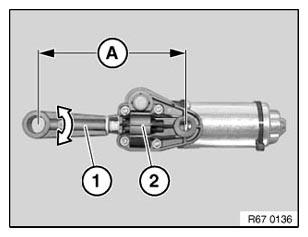

Do not turn spindle (1) in order not to change measurement A.
Replacement:
Adopt measurement A of removed drive unit for backrest head adjustment (2). If necessary, adjust measurement A by turning spindle (1).
Initialize drive unit for backrest head adjustment, see 67 31... Notes on initializing electric seat servodrives .
