65 20 090 Removing and installing/replacing aerial amplifier (diversity)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection)
, see 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary preliminary tasks:
- Remove rear window frame trim panel , see 51 49 002 REMOVING AND INSTALLING/REPLACING (UPPER) PANEL FOR REAR WINDOW FRAME .

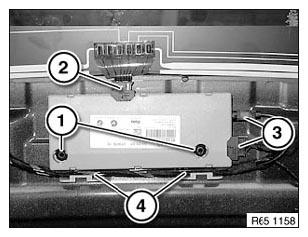

Release screws (1).
Disconnect plug connections (2, 3) and remove aerial amplifier.
Installation:
Ensure correct line routing (4).
