63 31 255 Removing and installing/replacing optical fibre in rear left or right door trim panel
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Follow instructions for handling light bulbs (interior lights
, see 63 99... Instructions for replacing light bulbs (interior lights) ).
Necessary preliminary tasks:
- Remove rear door trim panel , see 51 42 000 REMOVING AND INSTALLING (REPLACING) REAR LEFT OR RIGHT DOOR TRIM PANEL .

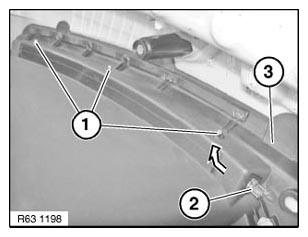

Release retaining clips (1) for optical fibre (2) from door trim panel (3).
Carefully feed optical fibre (2) in direction of arrow out of door trim panel (3) and remove.
Installation:
Make sure retaining clips (1) are correctly engaged on door trim panel (3).
