63 31 080 Removing and installing/replacing (left or right) luggage compartment light (on rear lid)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 64 1 020 , see 64 1 020 RELEASE HOOK .
IMPORTANT:
Follow instructions for handling light bulbs (interior lights
, see 63 99... Instructions for replacing light bulbs (interior lights) ).

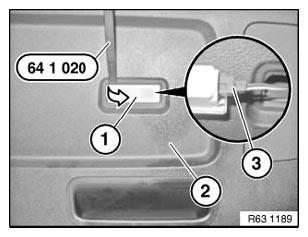

Lever out luggage compartment light (1) with special tool 64 1 020 in direction of arrow out of rear lid trim panel (2).
Disconnect plug connection (3) and remove luggage compartment light (1).
Replacement:
If necessary, remove bulb , see 63 99 201 Replacing halogen bulb for left or right front fog lamp .
