54 12 015 Replacing left or right gaiter for glass slide/tilt sunroof
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Move glass sunroof lid into "lift position".

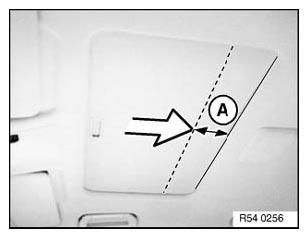

Slide roofliner (floating) slowly towards rear until stop can be felt.
E65, E66: A = approx. 60 mm
E60, E61: A = 0 mm
Pull out gaiter (1) at rear starting from glass sunroof lid (2).
Remove gaiter (1) as follows:
A Unclip at front
B Slide forwards and remove
Installation:
Retainer (4) and guide pin (2) must not be damaged.
Slide guide pin (2) into holder (1). Retainer (4) must engage in holder (3).
