51 43 251 Removing and installing or replacing trim panel for left or right rear roof pillar (C-pillar)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove TRIM FOR D-PILLAR .

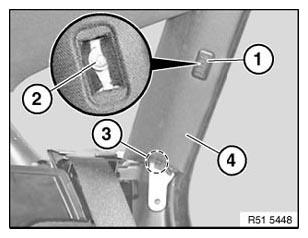

Lever out trim (1) and release screw underneath (2) underneath.
Release clip (3).
Raise trim panel (4) and feed out in downward direction.
Installation:
Replace missing and damaged clips (3).
IMPORTANT:

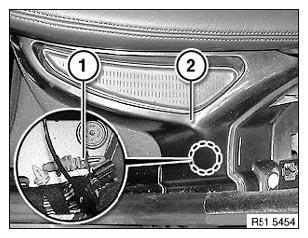

If some clips (1) are lost during removal, if necessary remove C-pillar storage compartment (2) in order to take out clips (1), see 51 47... Removing and installing/replacing C-pillar storage compartment at bottom left or right .
Installation:
Make sure the trim cover is correctly seated in mounts.
