51 42 000 Removing and installing (replacing) rear left or right door trim panel: Notes

Necessary preliminary tasks:

• Remove COVER ON DOOR HANDLE

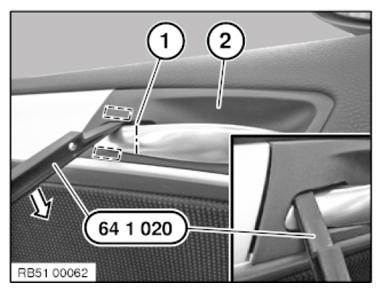

Position special tool 64 1 020 (as shown) behind inside door handle securing pin (1).

Lever out rear latch mechanisms from cover (2).

Fig 1: Prying Out Rear Latches Of Cover Using Special Tool (64 1 020)

Courtesy of BMW OF NORTH AMERICA, INC.

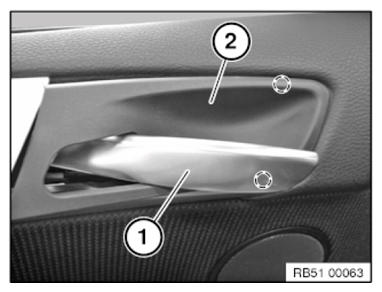

Open inside door handle (1), levering rear cover (2) further out.

Gentle up/down movements will make the front latch mechanisms become detached from the cover (2).

Remove trim (2).

Fig 2: Identifying Inside Door Handle And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

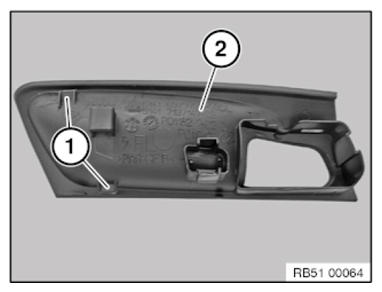

The latching hooks (1) of the cover (2) must not be damaged or missing.

Fig 3: Identifying Door Trim Panel Cover And Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

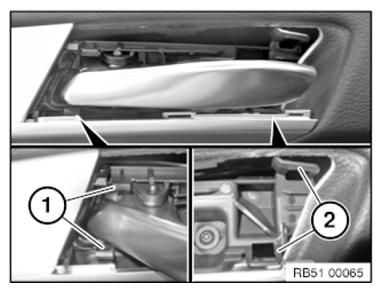

The latch mechanisms (1) and (2) must not be damaged or missing.

Fig 4: Identifying Door Trim Panel Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

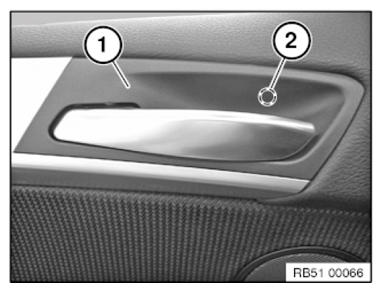

Fit cover (1) correctly and engage at rear.

Thumb pressure in the handle recess (2) will make the cover (1) engage at the front.

Fig 5: Identifying Handle Recess And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

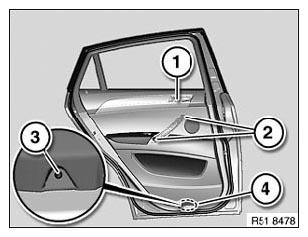

Release screws (1), (2) and (3).

Remove FOOTWELL LIGHT (4).

Fig 6: Identifying Footwell Light Screws

Courtesy of BMW OF NORTH AMERICA, INC.

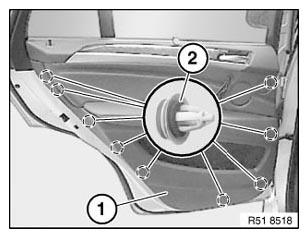

Unclip door trim panel (1) from clips (2) with special tool 00 9 317 (wedge).

Fig 7: Identifying Door Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

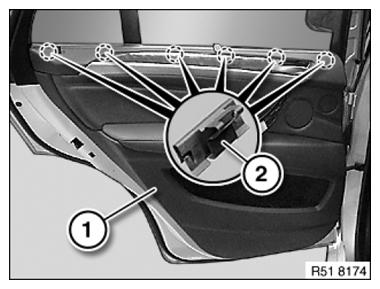

Carefully unclip door trim panel (1) at top from retainers (2).

Disconnect all plug connections.

Fig 8: Identifying Door Trim Panel And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

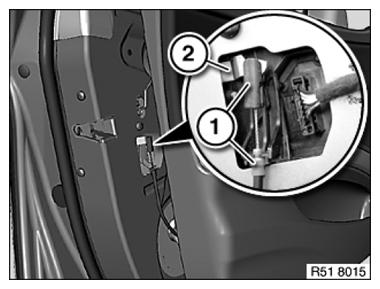

Unhook Bowden cable (1) from door lock (2).

Fig 9: Identifying Bowden Cable And Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

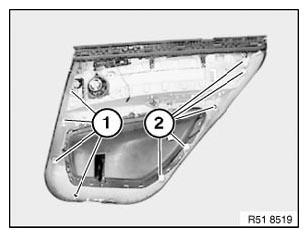

If necessary, replace faulty clips (1).

Fit all clips with sealing ring.

Make sure clips are installed in correct position.

1. Grey clip
2. Light blue clip
   Fig 10: Identifying Grey Clip And Light Blue Clip

   Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

After assembling the door trim panel proceed as follows:

• Open side window
• Lock with vehicle key
• Check for ease-of-movement on retaining button linkage
• If necessary, align linkage
