51 22 360 Replacing seal for door seam/roof frame on left or right rear door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317 , see 00 9 317 TRIM PANEL WEDGE .

IMPORTANT: The "Instructions on fitting window guide seals" serve as the basis for this repair instruction and must be observed without fail, see 51 00... Notes on fitting window guide seals .

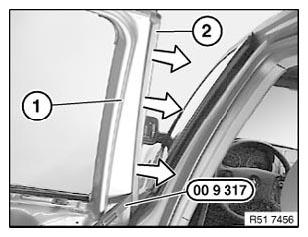

Lever out seal (1) on door window frame at front (2) with special tool 00 9 317 .

Fig 1: Identifying Tape Off Edge Areas, Special Tool 00 9 318 And Guide Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Starting at rear, pull off seal (1) towards front.

Installation:

Moisten seal prior to fitting with approved anti-friction agent., see 51 00... Notes on fitting window guide seals .

Fig 2: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.
