51 16 325 Removing and installing/replacing fastener for center armrest

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Pull stop pad (1) out of fastener for center armrest (2).

Fig 1: Identifying Center Armrest Stop Pad
G00529527Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and fold out fastener for center armrest (2), then remove.

Fig 2: Identifying Screw
G00529528Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Hook in fixing bracket (3) from fastener for center armrest (2) into inner shell (1) correctly.

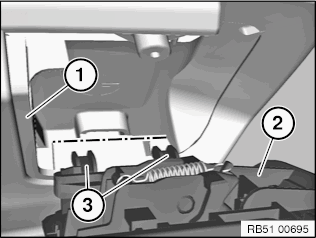

Fig 3: Identifying Fixing Bracket And Inner Shell
G00529529Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
  • Left housing form (A) up to production 05/09 (with recess for rubber seal) *
  • Right housing form (A) from production 05/09

* No longer available

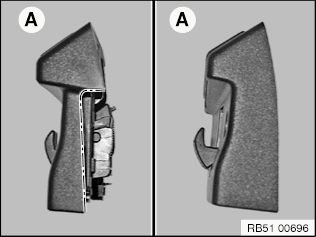

Fig 4: Identifying Left Housing Form And Right Housing Form
G00529530Courtesy of BMW OF NORTH AMERICA, INC.

Component overview

1 = Return spring locking hook

2 = Locking hook

3 = Housing

4 = Button

5 = Return spring button

Replacement:

NOTE:

Up to production 05/09, a replacement of the locking hook is only possible with intact housing (3).

Housing (3) is reused. Parts (1, 2, 4 and 5) must be reconstructed into previous housing (3).

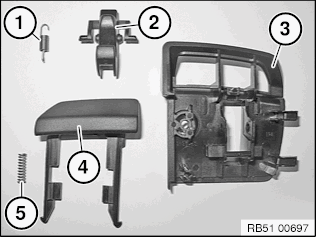

Fig 5: Identifying Housing, Locking Hooks, And Buttons
G00530551Courtesy of BMW OF NORTH AMERICA, INC.

Additional work up to production 05/09:

Disengage button (2) in direction of arrow and feed out housing (3).

Installation note:

Install return spring button (1) correctly and check function of button (2).

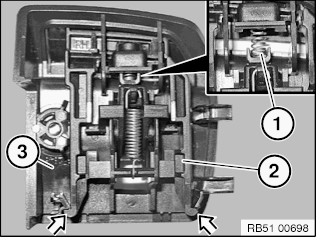

Fig 6: Identifying Housing And Buttons
G00530552Courtesy of BMW OF NORTH AMERICA, INC.

Carefully disengage return spring locking hook (1).

Installation note:

Test function of return spring locking hook (1).

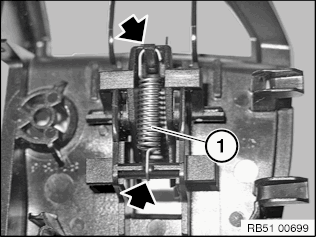

Fig 7: Identifying Return Spring Locking Hook
G00530553Courtesy of BMW OF NORTH AMERICA, INC.

Lever out locking hook (1) out of axle bearing and feed out of housing (2).

Repeat additional operation on new part.

Installation note:

Install removed separate component from new part into previous housing (2).

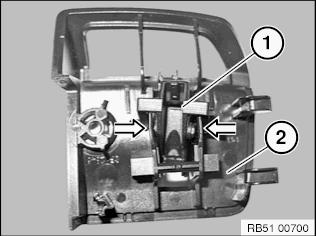

Fig 8: Identifying Housing And Locking Hook
G00530554Courtesy of BMW OF NORTH AMERICA, INC.
