51 16 160 Removing and installing/replacing center console trim (gear selector switch)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!
Before dismantling it is imperative to note whether the version of the installed controller is before or after 10/2009!

Before 10/2009: Controller has buttons at only bottom .
After 10/2009: Controller has buttons at bottom and top .

For version (1) up to 10/2009 (except M models) the CONTROLLER BUTTON must be removed as preliminary work for center console cover.

Fig 1: Identifying Number Of Buttons And Shape Of Controller

G06855285

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT:

Risk of damage!

There is a risk of damage when lifting the cover out of the side area (3)!

Place special tool wedge 00 9 327 directly at clamps (2)!

Tape off cover (1) and center console in working area.

Lift cover (1) out of the center console with special wedge tool 00 9 327 beginning in the front area.

CAUTION: Risk of breaking the cover!

Then carefully lift out cover (1) in side area (3).

Lever out the remainder of the clamp (2) and remove the cover (1).

Fig 2: Identifying Cover, Clamp, And Side Area

G00529523

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clips (1) and (2) must not be damaged or missing.

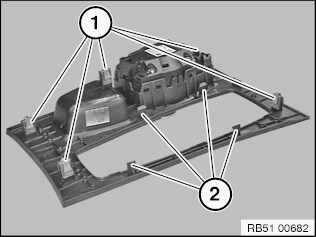

Fig 3: Identifying Retaining Clips

G00529524

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Only for vehicles with production date from 10/2009 (except M models):

Modify CONTROLLER
