51 16 080 Removing and installing or replacing sun visor and left or right counter support

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Operations on right side analogous to left side shown. Use graphics in a mirror-inverted way.

Fold down sun visor (1).

Lever out trim (3) on counter support (2) and release screw underneath.

Lever out cover (5) on joint and release screws (4).

Disconnect both light plug connections and remove sun visor (1).

Installation:

Cover (5) and trim (3) must not be damaged.

Fig 1: Identifying Cover, Sun Visor, Counter Support And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

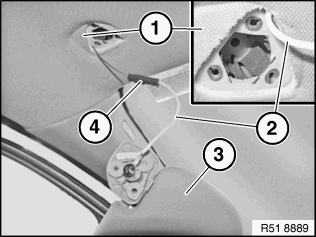

Pull down headlining (1) with suitable tool until plug connection (4) can be disconnected from cable (2).

Installation:

Place plug connection (4) and cable (2) correctly back above headlining.

Disconnect plug connection (4).

Pull down sun visor (3).

Installation:

Perform function check of lighting for make-up mirror light.

Fig 2: Identifying Headlining, Sun Visor, Connector, And Cable

Courtesy of BMW OF NORTH AMERICA, INC.
