51 16 041 Removing and installing/replacing cover cap on left or right exterior mirror

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove retaining ring on exterior mirror, see 51 16 045 Removing and installing or replacing retaining ring on left or right exterior mirror .

Fold exterior mirror (1) forwards.

Release screws (2).

Fig 1: Identifying Exterior Mirror And Screws

G04791490

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off cover cap (1) towards rear.

Installation:

Make sure cover cap (1) is correctly seated in areas (A and B).

Fig 2: Identifying Cover Cap

G04791491

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off cover cap (1) towards rear.

Installation:

Make sure cover cap (1) is correctly seated in areas (A and B).

Fig 3: Identifying Cover Cap

G04791491

Courtesy of BMW OF NORTH AMERICA, INC.

Fold exterior mirror (1) back.

Lift cover cap (2) downwards over catch (3).

Feed cover cap (2) in direction of arrow out of exterior mirror (1).

NOTE: Cover cap (2) must be bent slightly during removal.

Fig 4: Identifying Exterior Mirror, Cover Cap And Catch

G04791493

Courtesy of BMW OF NORTH AMERICA, INC.

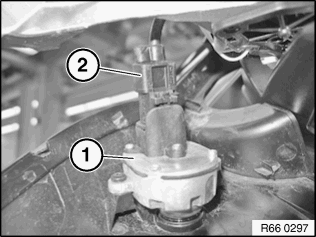

Version with exterior mirror camera (1) only:

Unfasten plug connection (2) and disconnect.

Fig 5: Identifying Connector For Exterior Mirror Camera

G00529526

Courtesy of BMW OF NORTH AMERICA, INC.
