Fitting 3 dual-lock tapes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Remove rest of dual-lock tapes (1) and clean bonding area.

Stick new dual-lock tapes (1) to body.

Dual-lock tapes on side window must match these dual-lock tapes.

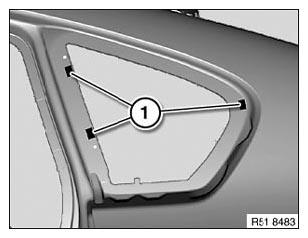

Fig 1: Identifying Dual-Lock Tapes
G06212784Courtesy of BMW OF NORTH AMERICA, INC.
