51 71 478 Removing and installing/replacing trim on rear left or right wheel arch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 230 , see 00 2 230 BLIND RIVETING TONGS FOR PLASTIC RIVETS .

Open rivets (1) (E70: blind rivets; E71: expander rivets).

Release trim (2) at clip (3) (not on E71) and remove.

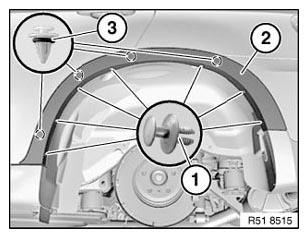

Fig 1: Identifying Trim And Clip

G06213004

Courtesy of BMW OF NORTH AMERICA, INC.

Note on installation (E70):

Apply blind rivets (1) with special tool 00 2 230.

Ensure trim (2) is correctly seated.

Fig 2: Identifying Blind Rivets With Trim

G04791928

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) must not be damaged.

If necessary, replace faulty clips (2) (not on E71).

Fit clips (2) with sealing ring.

Fig 3: Identifying Catches And Faulty Clips

G04791929

Courtesy of BMW OF NORTH AMERICA, INC.
