51 71 387 Removing and installing/replacing rear water gutter trim (rear lid) on left or right
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove rear lid gas-filled struts, see 51 24 300 Removing and installing or replacing left or right gas strut for rear lid .
- If necessary, remove electric spindle drive for rear lid, see 51 24 400 Removing and installing/replacing electric spindle drive for rear lid on left or right .
WARNING:
Risk of injury!
Support rear lid in fully opened position with suitable apparatus.
Support rear lid in fully opened position with suitable apparatus.
NOTE:
The operation is described on the left side; proceed in the same way for the right side.

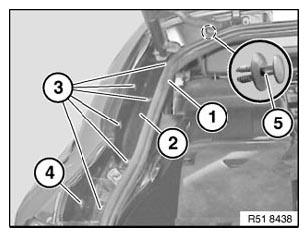

Detach mucket (1) along water gutter (2).
Release clips - short (3) and long (4).
Release expansion rivet (5).
IMPORTANT:
If clip mountings are removed during further operations (e.g. painting), always replace these mounting to ensure watertightness.
