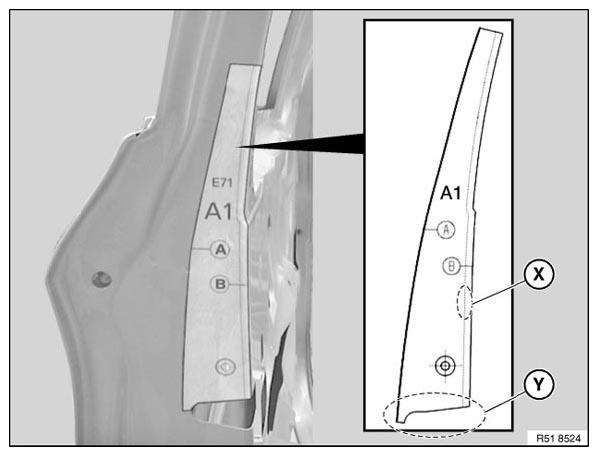

Positioning aid "A1" for front door, left ("B1" right)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Detach prestamped positioning aid from backing.
- Positioning aid "A1" front door, left (door lock, top)
- Positioning aid "B1" front door, right (door lock, top)
Align positioning aid with printed help markings (X, Y), bores and contact edge (B) to front door and press.
Seal must rest on positioning edge (A) during sticking.
X Start of bend radius
Y: Bore for door lock
