51 48 060 Removing and installing/replacing sound insulation in left or right front door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: INSTRUCTIONS FOR SOUND INSULATION are an essential part of these repair instructions and must be followed without fail.
Do not detach sound insulation in jerks (risk of damage).
Ensure watertightness of sound insulation after every repair (water ingress).

Necessary preliminary tasks:

Remove DOOR TRIM PANEL

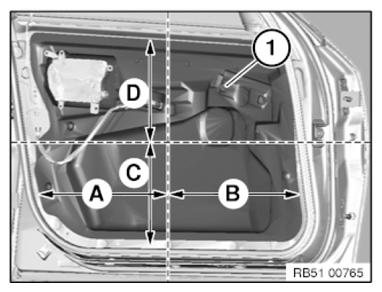

NOTE: Dimensions A to D apply for partial detachment of sound insulation (1).

Measurement A: Detach left sound insulation.
Dimension B: Detach right sound insulation.
Dimension C: Detach bottom sound insulation.
Dimension D: Detach top sound insulation.

Fig 1: Identifying Sound Insulation Partial Detachment Dimensions
Courtesy of BMW OF NORTH AMERICA, INC.

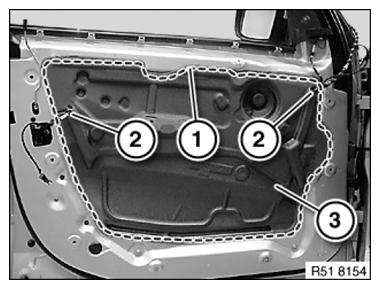

Position of sealing bead (1).

Feed out sound insulation (3) at cable (2) and remove.

Fig 2: Identifying Sealing Bead, Sound Insulation And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

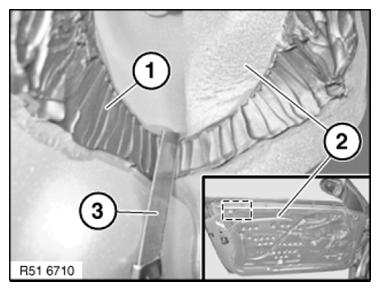

IMPORTANT: When cutting through sealing bead (1), do not damage sound insulation (2) and if necessary cable.

With a suitable sharp cutting tool (3) cut through sealing bead (1) of sound insulation (2) in the area to be detached.

Fig 3: Cutting Sealing Bead Of Sound Insulation Using Sharp Cutting Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Clean adhesive area with adhesive remover (sourcing reference: BMW Parts Department).

Air drying time: 1 minute

IMPORTANT: Bonding surface must be dry and free of dust and grease.
Once it has been cleaned, do not touch the adhesive area with bare hands.

NOTE: Replacement:
Lay 6 mm dia. butyl rope (sourcing reference: BMW Parts Department) in specified adhesive area.
Heat butyl rope (hot air blower) and press down firmly on sound insulation all round.
Contact pressure with hand roller: approx. 20 N/cm²
Manual contact pressure: approx. 10 N/cm²

NOTE: Firm thumb pressure has approx. 30 N/cm²

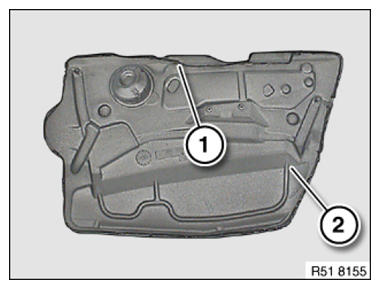

NOTE: Position of butyl rope (1) on sound insulation (2).

Fig 4: Identifying Butyl Rope And Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

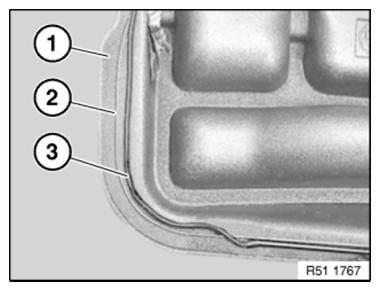

NOTE: A mark (2) is provided all round on the sound insulation (1).
Butyl rope (3) rests on or inside the marking (2).

Fig 5: Identifying Sound Insulation And Butyl Rope With Marking

Courtesy of BMW OF NORTH AMERICA, INC.
