Field of vision (no repairs acceptable)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

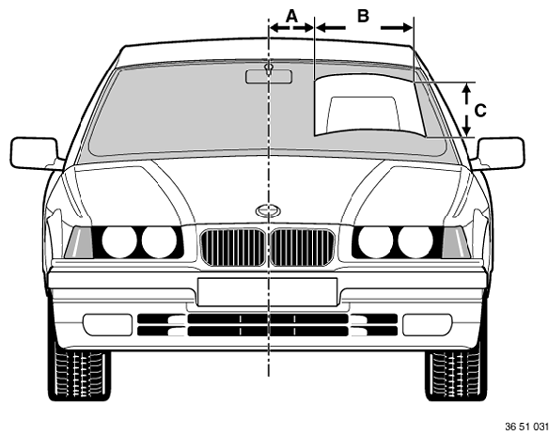

Fig 1: Identifying Wiper Range
G06212733Courtesy of BMW OF NORTH AMERICA, INC.
  1. 50 mm (gap between field of view/center of vehicle)
  2. Up to end of wiper range, outside (field of view width)
  3. Restriction by wiper range (height of field of view)
IMPORTANT: Repairs must only be carried out outside of the field of vision (refer to sketch).
