If replacing version with storage package

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Remove multifunction hook (1).

Remove tensioning strap (2).

NOTE: Openings for multifunction hook (1) and tensioning strap (2) must be cut out from luggage compartment wheel arch trim.

Saw out openings with an oscillating saw and a straight blade on the molding.

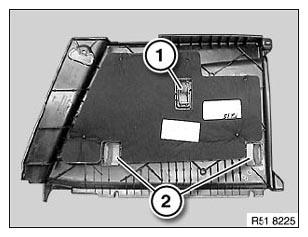

Fig 1: Identifying Multifunction Hook And Tensioning Strap
G06212927Courtesy of BMW OF NORTH AMERICA, INC.
