51 47 134 Removing and installing/replacing left or right rail in luggage compartment floor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove luggage compartment wheel arch trim, see left luggage compartment wheel arch trim and right luggage compartment wheel arch trim .
Remove battery cover, see 51 47... Removing and installing/replacing battery cover .
Remove trim from rear apron, see 51 46 050 Removing and installing/replacing top trim on tail panel .

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Release expansion rivets (1).

Release screw (2).

Release plastic nut (3).

Feed out rail (4) towards rear.

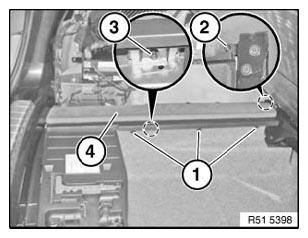

Fig 1: Identifying Expansion Rivets And Plastic Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty expander rivets and plastic nuts.
