51 47 030 Removing and installing/replacing rear (inside) left or right entrance cover strip

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317 , see 00 9 317 TRIM PANEL WEDGE .

Detach mucket (1) in area of entrance cover strip (2).

Using special tool 00 9 317 , detach entrance cover strip (2) from retainers (3) and clips (4) in upward direction.

Installation:

If necessary, replace faulty retainers (3).

If necessary, release clips (4) from vehicle.

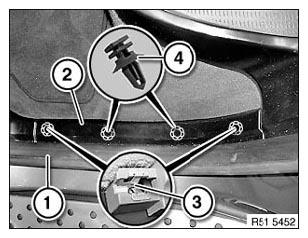

Fig 1: Identifying Entrance Cover Strip And Faulty Retainers With Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lugs (1) must not be damaged or missing.

If necessary, fit missing or faulty clips (2) on entrance cover strip (3).

Fit entrance cover strip (3) with preinstalled clips (2).

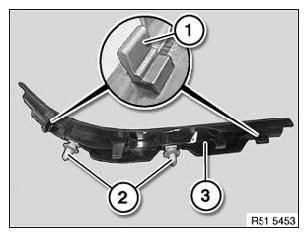

Fig 2: Identifying Entrance Cover Strip With Preinstalled Clips

Courtesy of BMW OF NORTH AMERICA, INC.
