Removal Of Luggage Compartment Floor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Open welded connections in area (1).

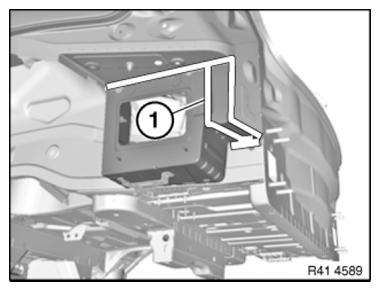

Fig 1: Identifying Weld Connections Area
G08528563Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove the luggage compartment floor.

NOTE: Side wall hidden for purposes of clarity.

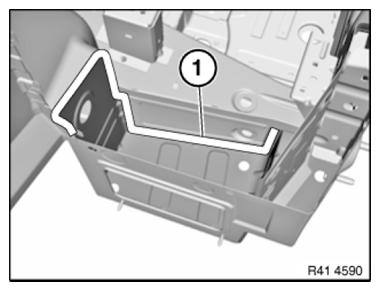

Fig 2: Identifying Weld Connections Area
G08528564Courtesy of BMW OF NORTH AMERICA, INC.
