New Part Preparation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Adjust new part in combination with tail panel and side wall to fit and secure.

In areas (1) to (3), set 4.2 mm diameter bore holes for blind rivets N3:

Area	Number
1	1
2	1
3	3

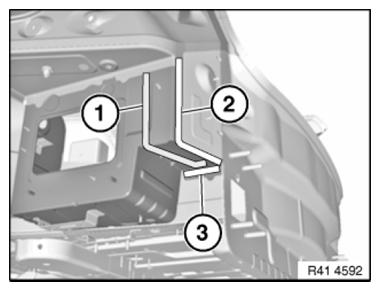

Fig 1: Identifying Blind Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) to (3), set 4.2 mm diameter bore holes for blind rivets N3:

Area	Number
1	4
2	4
3	1

Remove new part again and deburr bore holes.

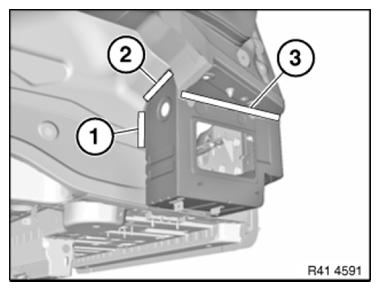

Fig 2: Identifying Blind Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Set four 4.2 mm dia. bore holes for blind rivets N3 in area (1).

Remove new parts again and deburr holes.

NOTE: Side wall hidden for purposes of clarity.

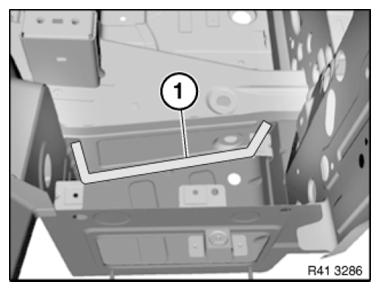

Fig 3: Identifying Blind Rivets Area

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind new part and body in area of bonding surfaces.
