Removal Of Luggage Compartment Floor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

View from below.

Open spot-welded adhesive joints in area (1)

Remove the luggage compartment floor.

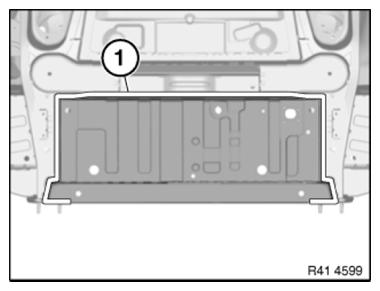

Fig 1: Identifying Spot-Welded Adhesive Joints Area
G08528572Courtesy of BMW OF NORTH AMERICA, INC.
