New Part Preparation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Fit luggage compartment floor from underneath and adjust in conjunction with tail panel and secure.

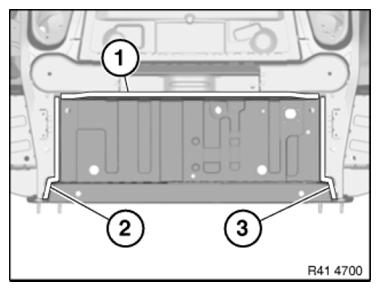

In areas (1) to (3), set 4.2 mm diameter bore holes for blind rivets.
Courtesy of BMW OF NORTH AMERICA, INC.
Remove new part and deburr holes.
IMPORTANT:
Do not grind new parts and body in area of bonding surfaces.
