Preparation Of New Part

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Mark side member new parts in accordance with severance cuts on vehicle and cut.

Adjust side member new parts to fit with alignment bracket or universal mount and with tail panel.

Prepare REINFORCEMENT PLATES at severance cuts on side members.

Most of operation is described on the left side. Right side identical.

Position and secure luggage compartment floor middle section from below.

In areas (1) to (3), set 4.2 mm diameter bore holes for blind rivets.

Area	Number
1	9
2	6
3	6

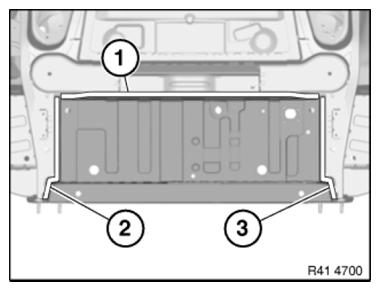

Fig 1: Identifying Blind Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust luggage compartment floor to fit and secure.

In areas (1) to (3), set Ø4.2 mm bore holes for BLIND RIVETS N3 .

Area	Number
1	1
2	1
3	3

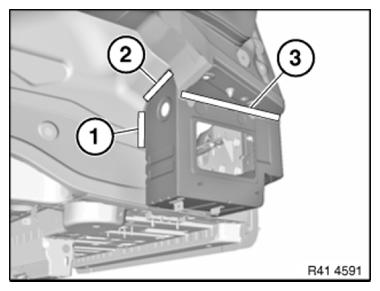

Fig 2: Identifying Blind Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) to (3), set Ø 4.2 mm bore holes for blind rivets N3.

Area	Number
1	4
2	4
3	1

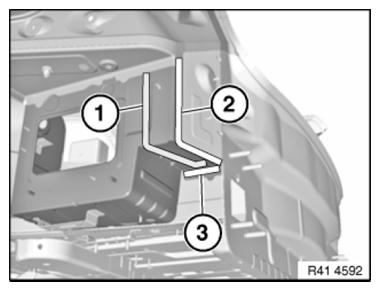

Fig 3: Identifying Blind Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1), set four Ø 4.2 mm bore holes for blind rivets N3.

Remove new parts again and deburr holes.

NOTE: Side wall hidden for purposes of clarity.

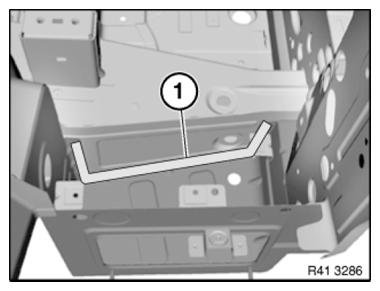

Fig 4: Identifying Blind Rivets Area

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind new part and body in area of bonding surfaces.
