Installing Luggage Compartment Floor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Clean all bonding surfaces on new part and on vehicle with CLEANING AGENT R1 .

Apply adhesive on all bonding and riveting surfaces.

When installing, make sure that all bonding surfaces have sufficient adhesive.

Install new parts and rivet with blind rivets.

After hardening of adhesive install 2 EMC SCREWS in areas (1) and (2).

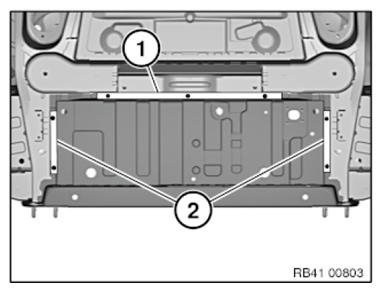

Fig 1: Identifying Adhesive Applying Areas On EMC Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Fit an EMC screw after adhesive has hardened in area (1).

NOTE: Side wall hidden for purposes of clarity.

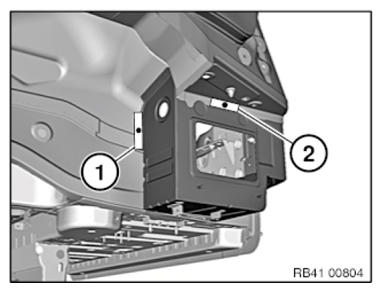

Fig 2: Identifying Adhesive Hardening Areas On EMC Screws

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of adhesive install 7 EMC screws in areas (1) and (2).

Install EMC screws in area (1) from luggage compartment.

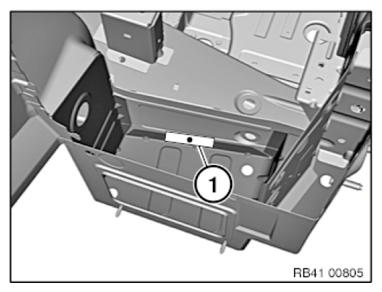

Fig 3: Identifying EMC Screws Applying Area On Luggage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
