34 33 071 Replacing vacuum hose for brake booster (N54)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Before beginning work, fully press the brake pedal several times to reduce the vacuum pressure in the brake booster. This makes it easier to remove the vacuum hose.
Vacuum hose and non-return valve are welded together and are replaced together as a single unit.
Vacuum hose and non-return valve are welded together and are replaced together as a single unit.
Necessary preliminary tasks:
- Read and comply with General Information .
- Remove left partition wall for equipment compartment . See 51 71... REMOVING AND INSTALLING/REPLACING ASSEMBLY COMPARTMENT PARTITION WALL .
Detach partition wall seal upper section (1) in direction of arrow.
Remove non-return valve (2) from brake booster.
Installation:
Check seal for non-return valve and replace if necessary.

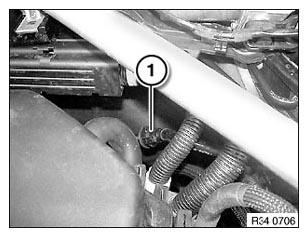

Unlock quick-connect coupling (1) and detach vacuum line.
